Object-side telecentric lenses

Select object-space telecentric optics

Browse lenses cataloged as object-side telecentric. Compare their measurement field, sensor format, magnification and working distance alongside the separate bi-telecentric range.

All Telecentric lenses

1540 models Configure a systemAll lenses
Object-side telecentric lenses

961-984 of 1540 models

Products

Compare
LS-TCL-20130.5x, WD 360 mm, 4/3" telecentric lens 0.5xC-mount4/3"360 mmF38.3-$1,069.00 Ships in 2-3 weeks
LS-TCL-19351x, WD 510 mm, 1/2" telecentric lens, coaxial port 1xC-mount1/2"510 mmF25.7Yes$1,429.00 Ships in 2-3 weeks
LS-TCL-19341x, WD 510 mm, 1/2" telecentric lens 1xC-mount1/2"510 mmF25.7No$1,429.00 Ships in 2-3 weeks
LS-TCL-19331x, WD 410 mm, 1/2" telecentric lens, coaxial port 1xC-mount1/2"410 mmF17.9Yes$1,429.00 Ships in 2-3 weeks
LS-TCL-19321x, WD 410 mm, 1/2" telecentric lens 1xC-mount1/2"410 mmF17.9No$1,429.00 Ships in 2-3 weeks
LS-TCL-20662x, WD 65 mm, 2/3" telecentric lens 2xC-mount2/3"65 mmF13.2-$1,239.00 Ships in 2-3 weeks
LS-TCL-20672x, WD 110 mm, 2/3" telecentric lens 2xC-mount2/3"110 mmF18.2-$1,239.00 Ships in 2-3 weeks
LS-TCL-2913Telecentric lens for AOI inspection, WD 110-220 mm, 0.22x, WD 220 mm, 1.1", C-mount 0.22xC-mount1.1"220±3 mm--$2,289.00 Ships in 2-3 weeks
LS-TCL-2915Telecentric lens for AOI inspection, WD 110-220 mm, 0.23x, WD 220 mm, 1.1", C-mount 0.23xC-mount1.1"220±3 mm--$2,219.00 Ships in 2-3 weeks
LS-TCL-2919Telecentric lens for AOI inspection, WD 110-220 mm, 0.246x, WD 220 mm, 1.1", C-mount 0.246xC-mount1.1"220±3 mm--$2,129.00 Ships in 2-3 weeks
LS-TCL-2920Telecentric lens for AOI inspection, WD 110-220 mm, 0.275x, WD 220 mm, 1.1", C-mount 0.275xC-mount1.1"220±3 mm--$1,989.00 Ships in 2-3 weeks
LS-TCL-2906Telecentric lens for AOI inspection, WD 110-220 mm, 0.14x, WD 190 mm, 1/2.5", C-mount 0.14xC-mount1/2.5"190±2 mm--$2,499.00 Ships in 2-3 weeks

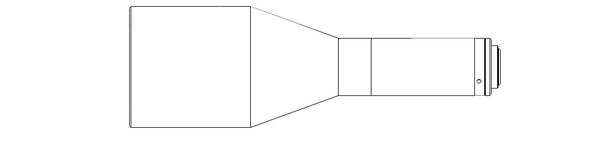

LS-TCL-2921Telecentric lens for AOI inspection, WD 110-220 mm, 0.345x, WD 220 mm, 1", C-mount 0.345xC-mount1"220±3 mm--$1,659.00 Ships in 2-3 weeks
LS-TCL-2914Telecentric lens for AOI inspection, WD 110-220 mm, 0.22x, WD 220 mm, 2/3", C-mount 0.22xC-mount2/3"220±3 mm--$1,689.00 Ships in 2-3 weeks
LS-TCL-2912Telecentric lens for AOI inspection, WD 110-220 mm, 0.22x, WD 200 mm, 2/3", C-mount 0.22xC-mount2/3"200±3 mm--$1,689.00 Ships in 2-3 weeks
LS-TCL-2922Telecentric lens for AOI inspection, WD 110-220 mm, 0.367x, WD 220 mm, 1", C-mount 0.367xC-mount1"220±3 mm--$1,609.00 Ships in 2-3 weeks
LS-TCL-2911Telecentric lens for AOI inspection, WD 110-220 mm, 0.22x, WD 200 mm, 1/1.8", C-mount 0.22xC-mount1/1.8"200±3 mm--$1,589.00 Ships in 2-3 weeks
LS-TCL-2900Telecentric lens for AOI inspection, WD 110-220 mm, 0.3x, WD 220 mm, 2/3", C-mount with coaxial light 0.3xC-mount2/3"220±3 mm--$1,529.00 Ships in 2-3 weeks

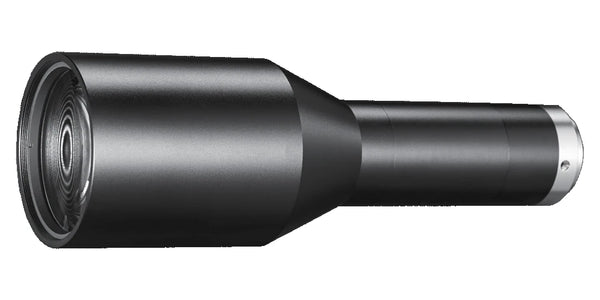

LS-TCL-2899Telecentric lens for AOI inspection, WD 110-220 mm, 0.3x, WD 220 mm, 2/3", C-mount 0.3xC-mount2/3"220±3 mm--$1,529.00 Ships in 2-3 weeks
LS-TCL-2898Telecentric lens for AOI inspection, WD 110-220 mm, 0.3x, WD 180 mm, 2/3", C-mount, 166.2 mm long 0.3xC-mount2/3"180±2 mm--$1,529.00 Ships in 2-3 weeks
LS-TCL-2897Telecentric lens for AOI inspection, WD 110-220 mm, 0.3x, WD 180 mm, 2/3", C-mount, 166.3 mm long 0.3xC-mount2/3"180±2 mm--$1,529.00 Ships in 2-3 weeks
LS-TCL-2903Telecentric lens for AOI inspection, WD 110-220 mm, 0.5x, WD 220 mm, 1", C-mount with coaxial light 0.5xC-mount1"220±3 mm--$1,399.00 Ships in 2-3 weeks
LS-TCL-2902Telecentric lens for AOI inspection, WD 110-220 mm, 0.5x, WD 220 mm, 1", C-mount 0.5xC-mount1"220±3 mm--$1,399.00 Ships in 2-3 weeks
LS-TCL-2918Telecentric lens for AOI inspection, WD 110-220 mm, 0.55x, WD 220 mm, 1", C-mount 0.55xC-mount1"220±3 mm--$1,349.00 Ships in 2-3 weeks

Select object-space telecentric optics

Object-side telecentric optics control perspective on the object side. They are a distinct class from bi-telecentric designs. Choose a lens using the required object field and the model specifications, then verify the complete camera, illumination and mechanical arrangement for the inspection task.

  • Match the required field with sensor size and magnification, allowing room for part-position variation instead of framing the nominal part edge exactly.
  • Check the published working distance, depth of field, resolution and distortion at the intended aperture. Do not substitute a family description for the selected model data.
  • Compare object-side and bi-telecentric designs when sensor placement and measurement stability are critical, and verify the mount and body clearance before installation.
