Telecentric lenses

Telecentric lens for AOI inspection, WD 110-220 mm, 0.22x, WD 200 mm, 1/1.8", C-Mount (LS-TCL-2911)

Model LS-TCL-2911

Magnification0.22x
MountC-mount
Sensor1/1.8"
Working distance200±3
Field of view32.6x24.7

$1,589.00

Ships in 2-3 weeks

0.86 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Large target area, high resolution object-side telecentric lenses for AOI: large FOV with low magnification and long working distance, supporting up to 1.1" 12M class high-speed cameras.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-2911

Optics

F/#	8
MTF30 (lp/mm)	>95
Distortion (% max)	<0.1
Telecentricity (deg max)	<0.1
Coaxial light	NO
Magnification (x)	0.22
Working distance (mm)	200±3
Depth of field (mm)	±13@F16
Best Aperture (F/#)	8
Field of view with ICX274/687 (7.16x5.44 sensor) (mm x mm)	32.6x24.7
Field of view with EV76C570 (7.2x5.4 sensor) (mm x mm)	32.7x24.6
Iris	No

Sensor and imaging

Max sensor size (dia. mm)	9.0(1/1.8")
Sensor format	1/1.8"

Interfaces and I/O

Length of I/O (mm)	368±3

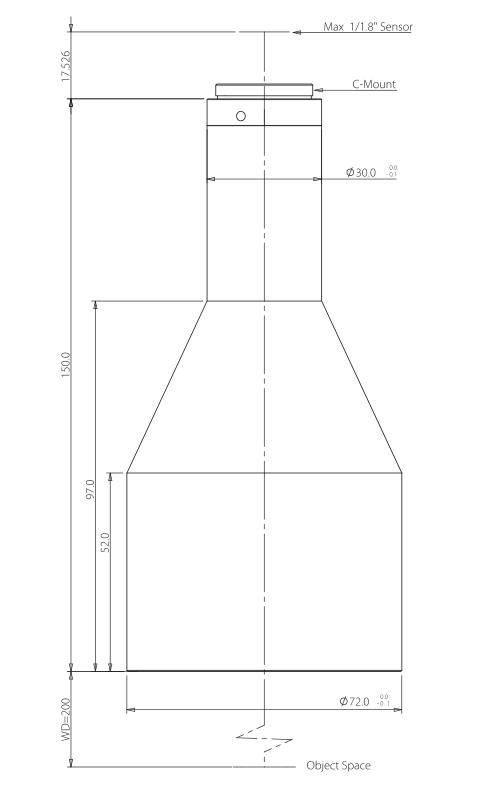

Mechanical

Mount	C-Mount
Length (mm)	150.0
Shipping weight	0.86 kg

Photo shows a representative model of this series; see the specifications for this model.

Downloads

Datasheet (PDF)LS-TCL-2911 · 1.7 MB

Features

Working distance 110 - 220 mm
C-mount
Coaxial light versions (C in the model code)
Large FOV with low magnification
Long working distance, easy for illumination and object allocation design
High accuracy, low distortion, high telecentricity, supports up to 1.1" 12M class high-speed cameras
Optimized for AOI and positioning applications
Strong mechanism design, with high shock resistance
Excellent central and peripheral imaging
It is widely used in high-precision visual positioning and other occasions.

Applications

AOI inspection
Positioning

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer
