Green backlights

Backlights sit behind the part and give the camera a sharp, high-contrast silhouette - the standard choice for gauging, outline and hole inspection, and for spotting contamination in clear film. Green light contrasts red and brown features such as solder, copper and rust, and matches the most sensitive channel of colour cameras.

All backlights · Red backlights · Blue backlights · White backlights · Infrared backlights · UV backlights

860 models Configure a system All lights

Products

								Compare

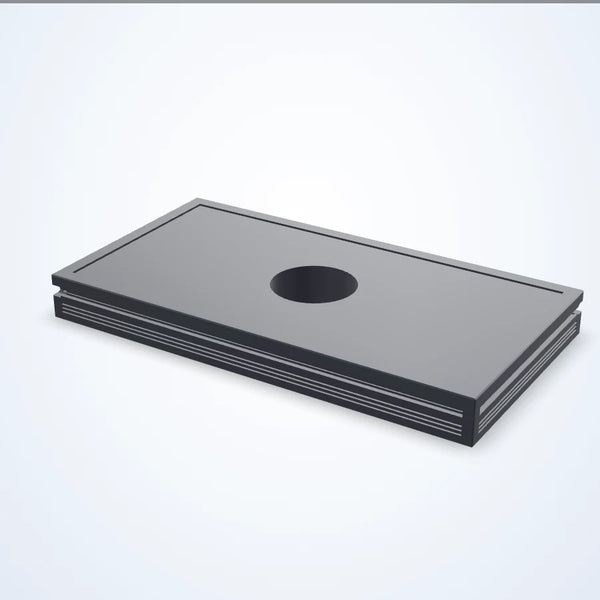

LS-BKL-0602200 x 100 mm Through-Hole LED Backlight	Red, Green, Blue, White	200x100 mm	214x114x22 mm	24 V	16 W	$419.00	Ships in 2-3 weeks	Compare LS-BKL-0602

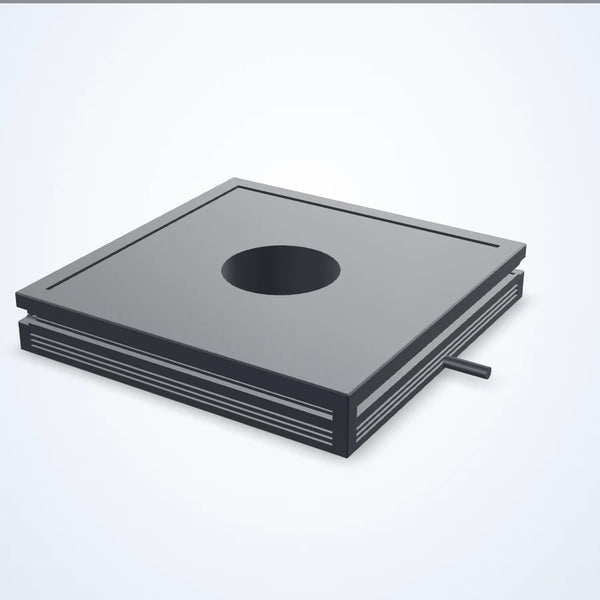

LS-BKL-0600110 x 110 mm Through-Hole LED Backlight	Red, Green, Blue, White	110x110 mm	124x124x21 mm	24 V	13 W	$339.00	Ships in 2-3 weeks	Compare LS-BKL-0600

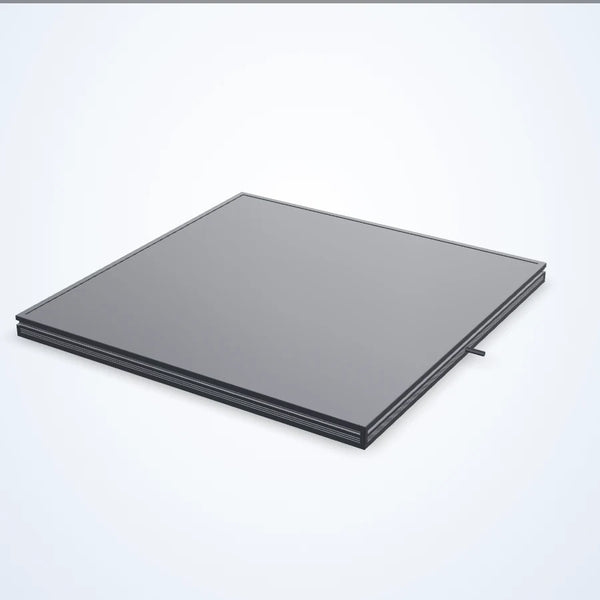

LS-BKL-0599400 x 400 mm Bottom-Lit Finned LED Backlight	Red, Green, Blue, White	400x400 mm	414x414x24 mm	24 V	126.7 W	$1,049.00	Ships in 2-3 weeks	Compare LS-BKL-0599

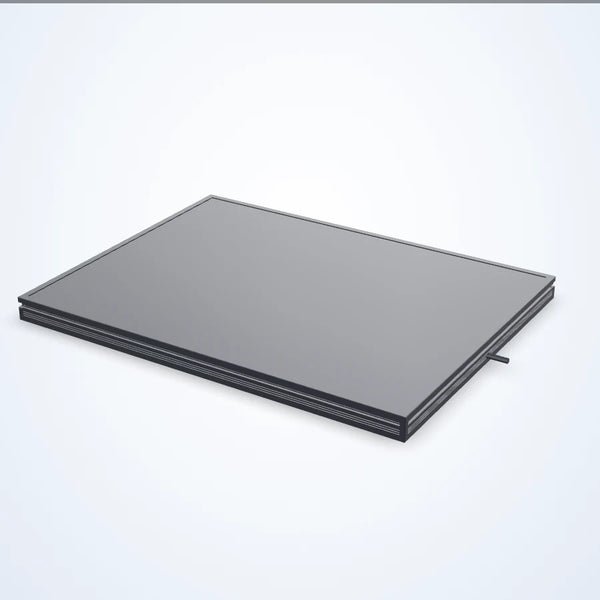

LS-BKL-0598400 x 300 mm Bottom-Lit Finned LED Backlight	Red, Green, Blue, White	400x300 mm	414x314x24 mm	24 V	103.7 W	$1,189.00	Ships in 2-3 weeks	Compare LS-BKL-0598

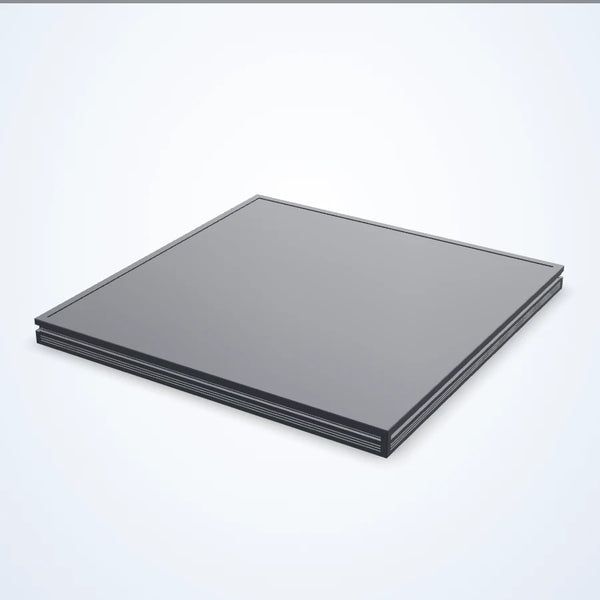

LS-BKL-0597300 x 300 mm Bottom-Lit Finned LED Backlight	Red, Green, Blue, White	300x300 mm	314x314x22 mm	24 V	72 W	$959.00	Ships in 2-3 weeks	Compare LS-BKL-0597

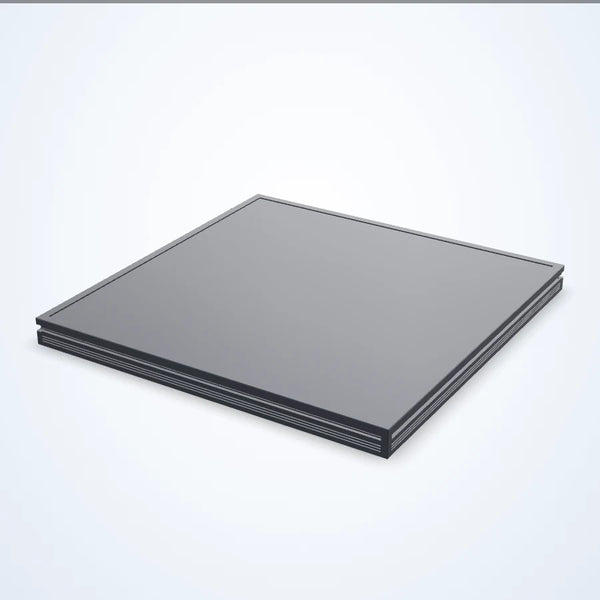

LS-BKL-0595280 x 280 mm Bottom-Lit Finned LED Backlight	Red, Green, Blue, White	280x280 mm	294x294x22 mm	24 V	69.1 W	$869.00	Ships in 2-3 weeks	Compare LS-BKL-0595

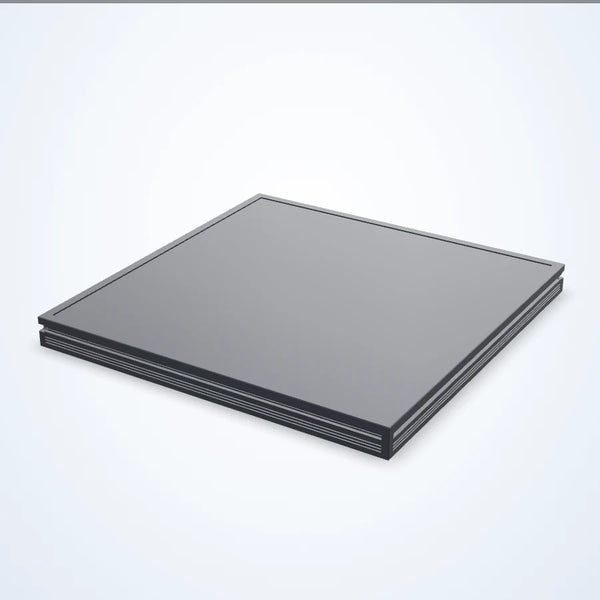

LS-BKL-0594250 x 250 mm Bottom-Lit Finned LED Backlight	Red, Green, Blue, White	250x250 mm	264x264x22 mm	24 V	41.5 W	$739.00	Ships in 2-3 weeks	Compare LS-BKL-0594

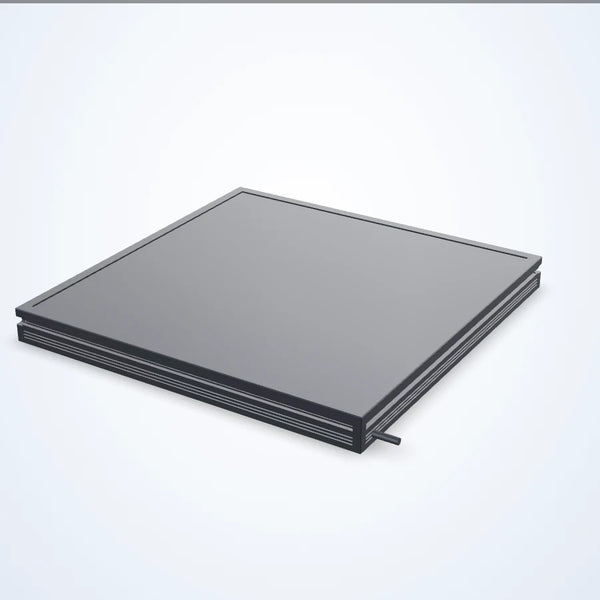

LS-BKL-0593220 x 220 mm Bottom-Lit Finned LED Backlight	Red, Green, Blue, White	220x220 mm	234x234x24 mm	24 V	50.7 W	$619.00	Ships in 2-3 weeks	Compare LS-BKL-0593

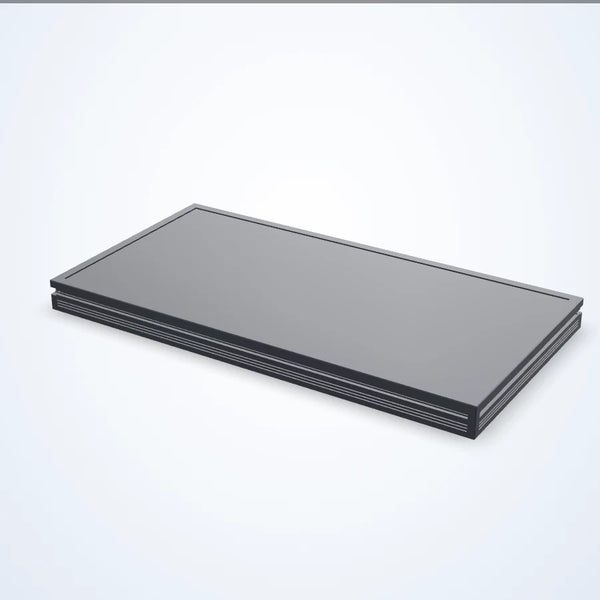

LS-BKL-0596300 x 150 mm Bottom-Lit Finned LED Backlight	Red, Green, Blue, White	300x150 mm	314x164x22 mm	24 V	51.8 W	$599.00	Ships in 2-3 weeks	Compare LS-BKL-0596

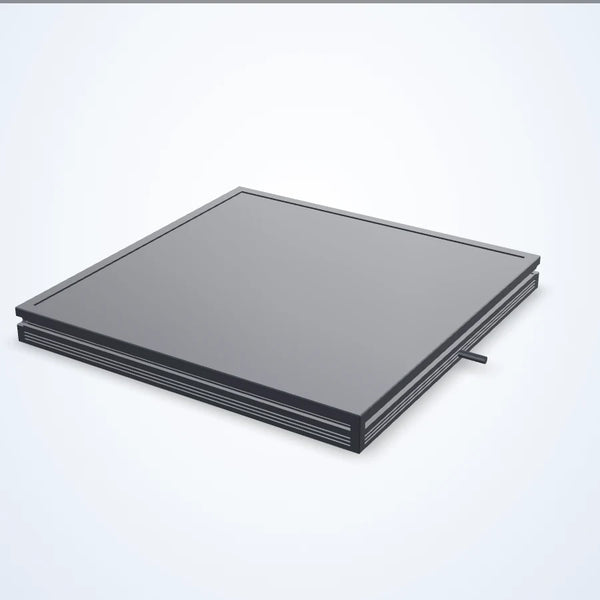

LS-BKL-0592200 x 200 mm Bottom-Lit Finned LED Backlight	Red, Green, Blue, White	200x200 mm	214x214x22 mm	24 V	43.2 W	$549.00	Ships in 2-3 weeks	Compare LS-BKL-0592

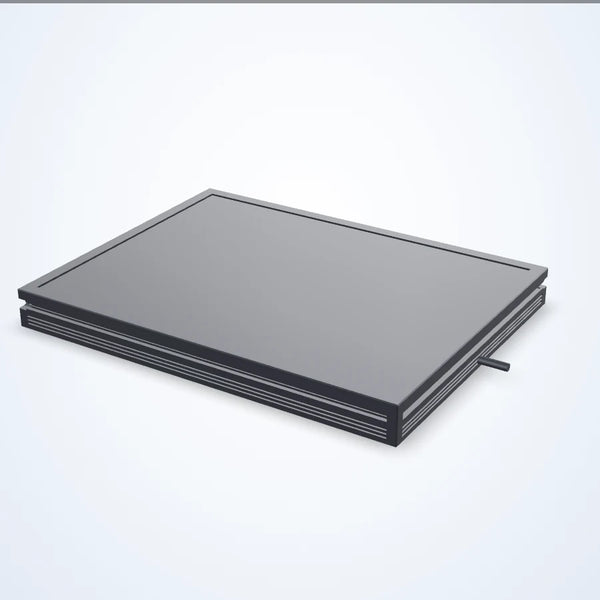

LS-BKL-0591200 x 150 mm Bottom-Lit Finned LED Backlight	Red, Green, Blue, White	200x150 mm	214x164x21 mm	24 V	36 W	$459.00	Ships in 2-3 weeks	Compare LS-BKL-0591

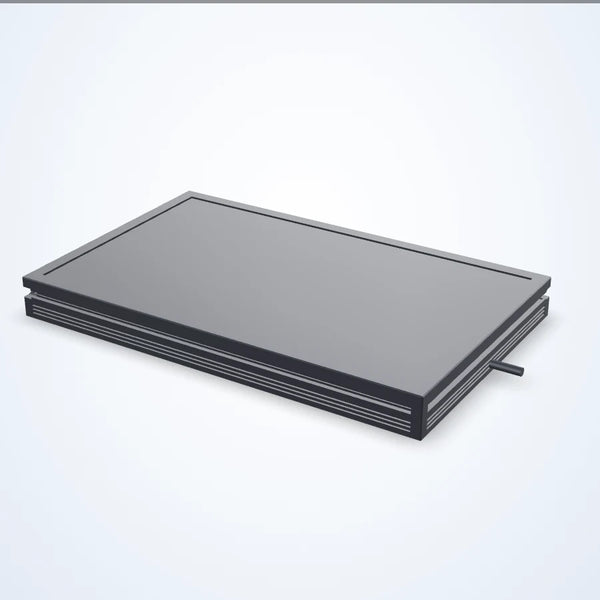

LS-BKL-0590200 x 120 mm Bottom-Lit Finned LED Backlight	Red, Green, Blue, White	200x120 mm	214x134x21 mm	24 V	28.8 W	$399.00	Ships in 2-3 weeks	Compare LS-BKL-0590

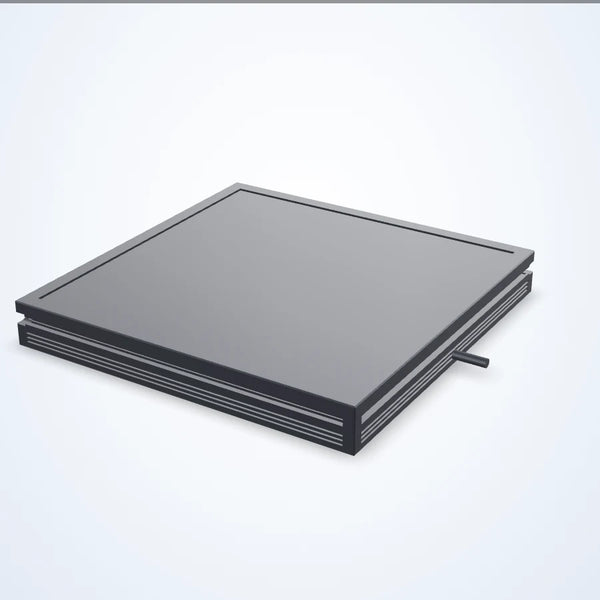

LS-BKL-0589150 x 150 mm Bottom-Lit Finned LED Backlight	Red, Green, Blue, White	150x150 mm	164x164x21 mm	24 V	28.8 W	$389.00	Ships in 2-3 weeks	Compare LS-BKL-0589

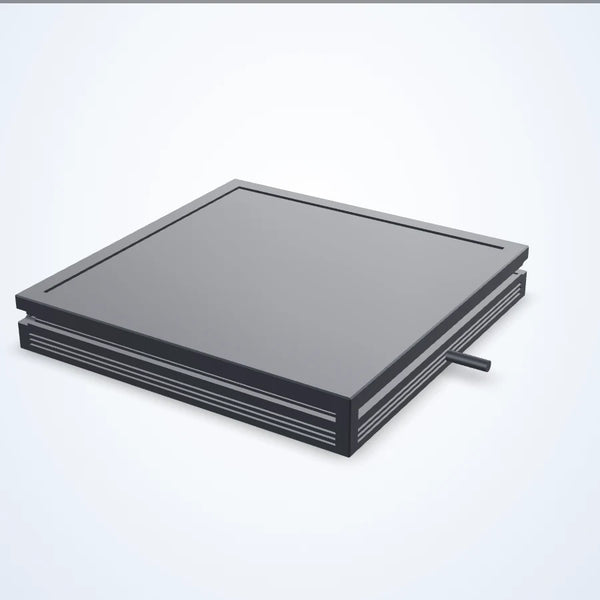

LS-BKL-0588120 x 120 mm Bottom-Lit Finned LED Backlight	Red, Green, Blue, White	120x120 mm	134x134x21 mm	24 V	17.3 W	$309.00	Ships in 2-3 weeks	Compare LS-BKL-0588

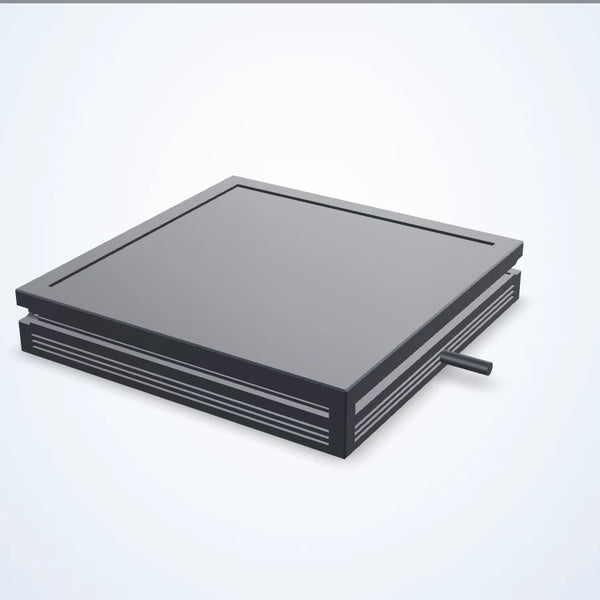

LS-BKL-0586100 x 100 mm Bottom-Lit Finned LED Backlight	Red, Green, Blue, White	100x100 mm	114x114x21 mm	24 V	11.5 W	$279.00	Ships in 2-3 weeks	Compare LS-BKL-0586

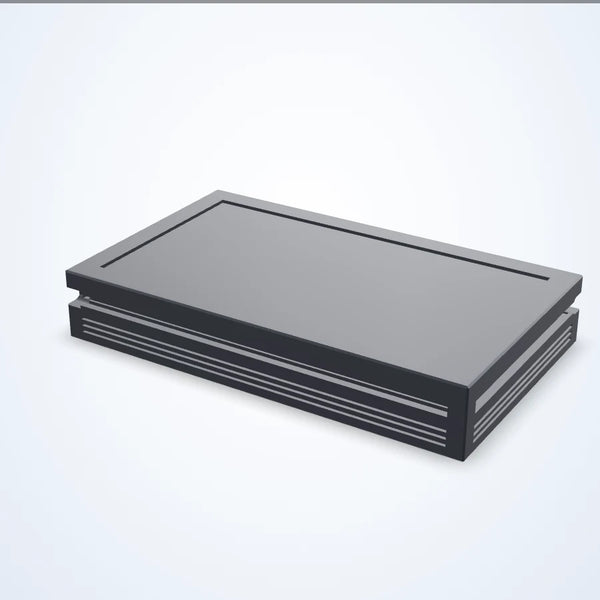

LS-BKL-0587110 x 60 mm Bottom-Lit Finned LED Backlight	Red, Green, Blue, White	110x60 mm	124x74x21 mm	24 V	8.6 W	$249.00	Ships in 2-3 weeks	Compare LS-BKL-0587

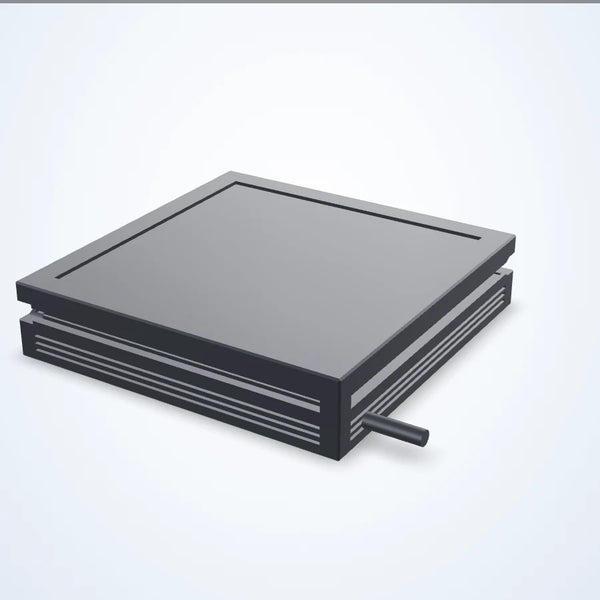

LS-BKL-058580 x 80 mm Bottom-Lit Finned LED Backlight	Red, Green, Blue, White	80x80 mm	94x94x21 mm	24 V	8.6 W	$249.00	Ships in 2-3 weeks	Compare LS-BKL-0585

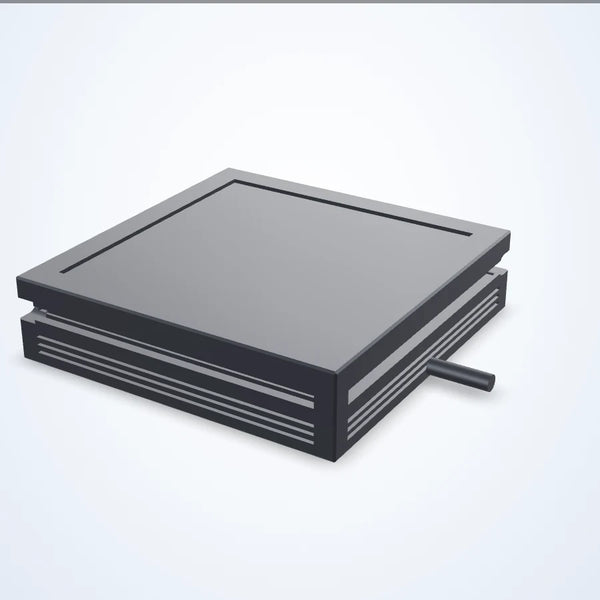

LS-BKL-058470 x 70 mm Bottom-Lit Finned LED Backlight	Red, Green, Blue, White	70x70 mm	84x84x21 mm	24 V	6.3 W	$229.00	Ships in 2-3 weeks	Compare LS-BKL-0584
LS-BKL-058350 x 50 mm Bottom-Lit Finned LED Backlight	Red, Green, Blue, White	50x50 mm	64x64x21 mm	24 V	3.5 W	$209.00	Ships in 2-3 weeks	Compare LS-BKL-0583
LS-BKL-058227 x 27 mm Bottom-Lit Finned LED Backlight	Red, Green, Blue, White	27x27 mm	44x44x21 mm	24 V	1.44 W	$199.00	Ships in 2-3 weeks	Compare LS-BKL-0582
