Backlights

27 x 27 mm Bottom-Lit Finned LED Backlight (LS-BKL-0582)

Model LS-BKL-0582

ColourRed, Green, Blue, White
Emitting area27x27 mm
Size44x44x21 mm
Voltage24 V
Power1.44 W

$199.00

In stock - ships the same business day (2 available, order by 2 PM ET)

0.2 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 terms or a formal quote for purchasing?

27 x 27 mm Bottom-Lit Finned LED Backlight. Bottom-lit LED backlight in the LS-BKL-S71 series with a finned heat-dissipation profile and side M3 nut slots usable for installation; 21-24 mm thick.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BKL-0582

Interfaces and I/O

Cable length (mm)	500

Light

Emitting area (mm)	27x27
Colours	Red, Green, Blue, White

Electrical

Voltage (V)	24
Power R (W)	0.86
Power W/B/G (W)	1.44

Mechanical

Outer size L x W x H (mm)	44x44x21
Mounting	X-M3 depth 4 (installation) on back; M3 nut slots in side profile
Heat sink	Finned heat-dissipation profile
Shipping weight (estimated)	0.20 kg

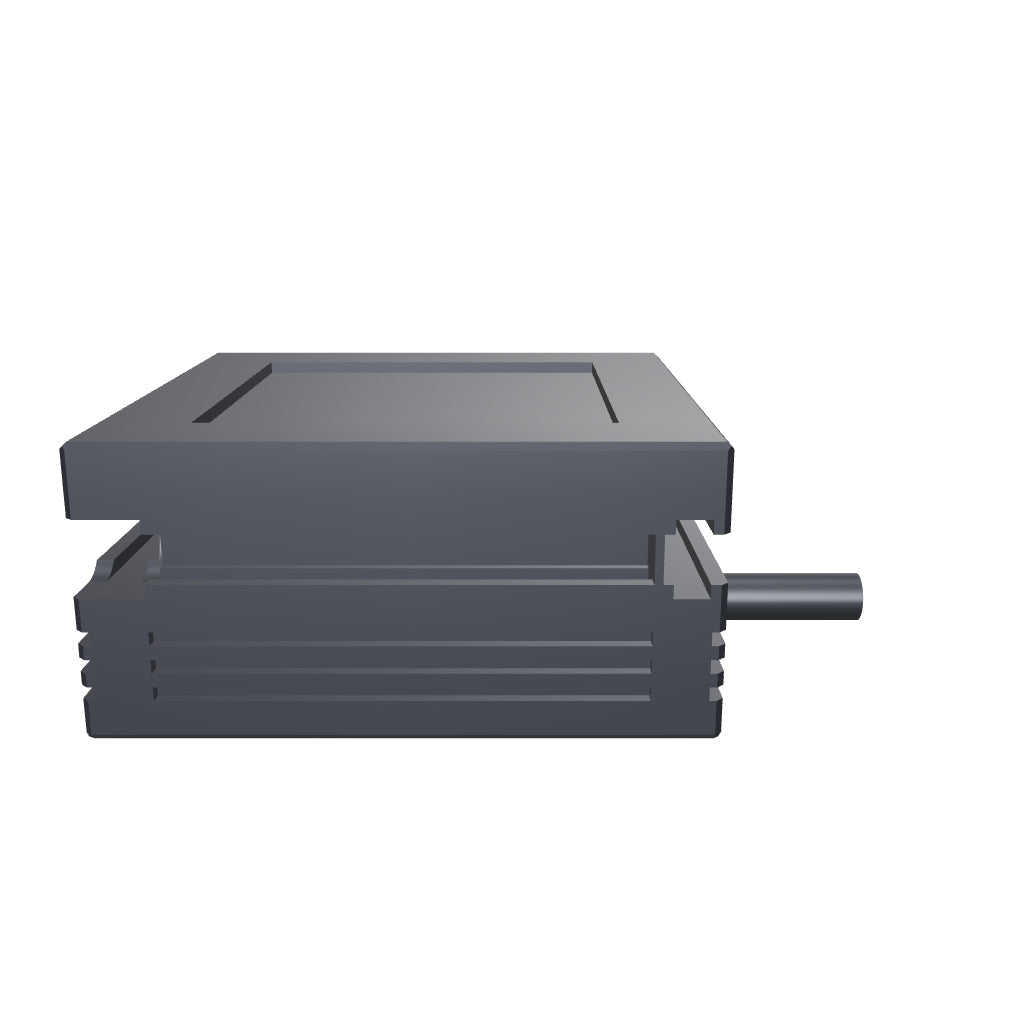

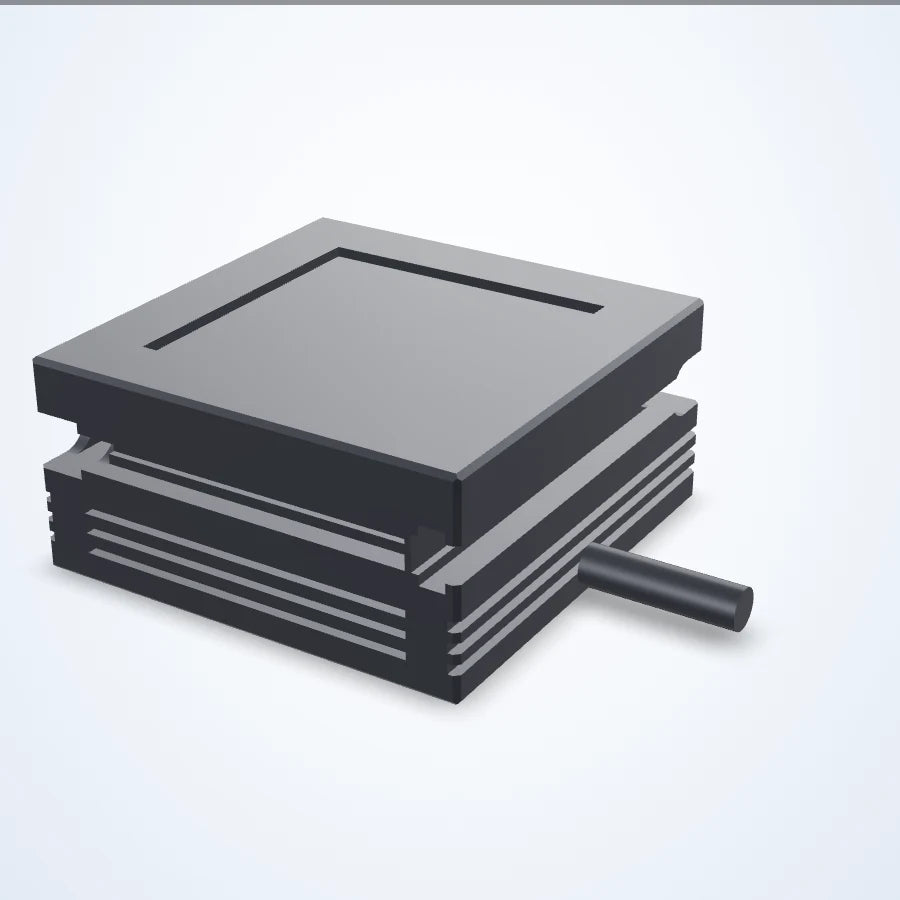

Photo shows a representative model of this series; see the specifications for this model.

Mounting and drawing data

drawing table (X = qty of M3 depth-4 mounting holes, E = thickness): X=2, C=blank, D=37, E=21; model name says 30X30 but the parameter table prints emitting area 27x27

Downloads

Features

High-brightness LED array arrangement for achieving uniform plane illumination.
Large-area uniform illumination for transmissive contour imaging.

Applications

Various size measurements, electronic component/IC outline inspection, film spot detection.
