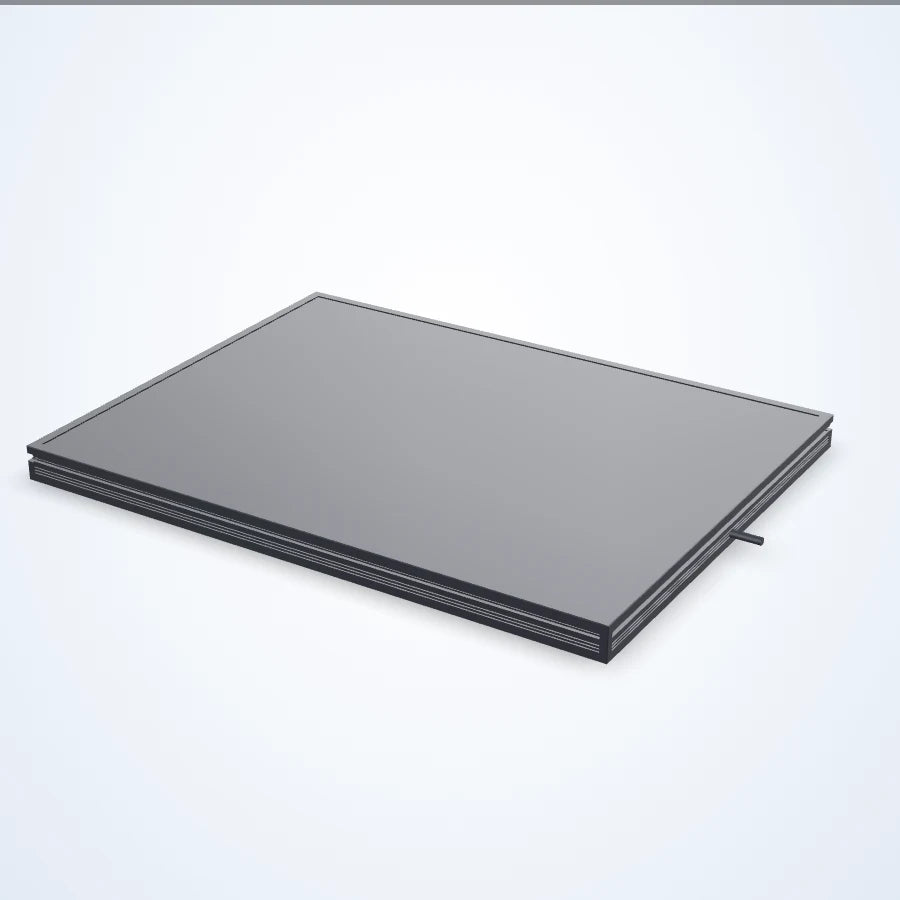

  • LS-BKL-0598 3D render
  • LS-BKL-0598 dimensions (mm)
  • LS-BKL-0598 3D model

Backlights

400 x 300 mm Bottom-Lit Finned LED Backlight (LS-BKL-0598)

Model LS-BKL-0598

  • ColourRed, Green, Blue, White
  • Emitting area400x300 mm
  • Size414x314x24 mm
  • Voltage24 V
  • Power103.7 W
$1,189.00

In stock - ships the same business day (3 available, order by 2 PM ET)

3.15 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

400 x 300 mm Bottom-Lit Finned LED Backlight (LS-BKL-0598)LS-BKL-0598

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

400 x 300 mm Bottom-Lit Finned LED Backlight. Bottom-lit LED backlight in the LS-BKL-S71 series with a finned heat-dissipation profile and side M3 nut slots usable for installation; 21-24 mm thick.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-0598

Interfaces and I/O

Cable length (mm)500

Light

Emitting area (mm)400x300
ColoursRed, Green, Blue, White

Electrical

Voltage (V)24
Power R (W)72.6
Power W/B/G (W)103.7

Mechanical

Outer size L x W x H (mm)414x314x24
MountingX-M3 depth 4 (installation) on back; M3 nut slots in side profile
Heat sinkFinned heat-dissipation profile
Shipping weight (estimated)3.15 kg

Photo shows a representative model of this series; see the specifications for this model.

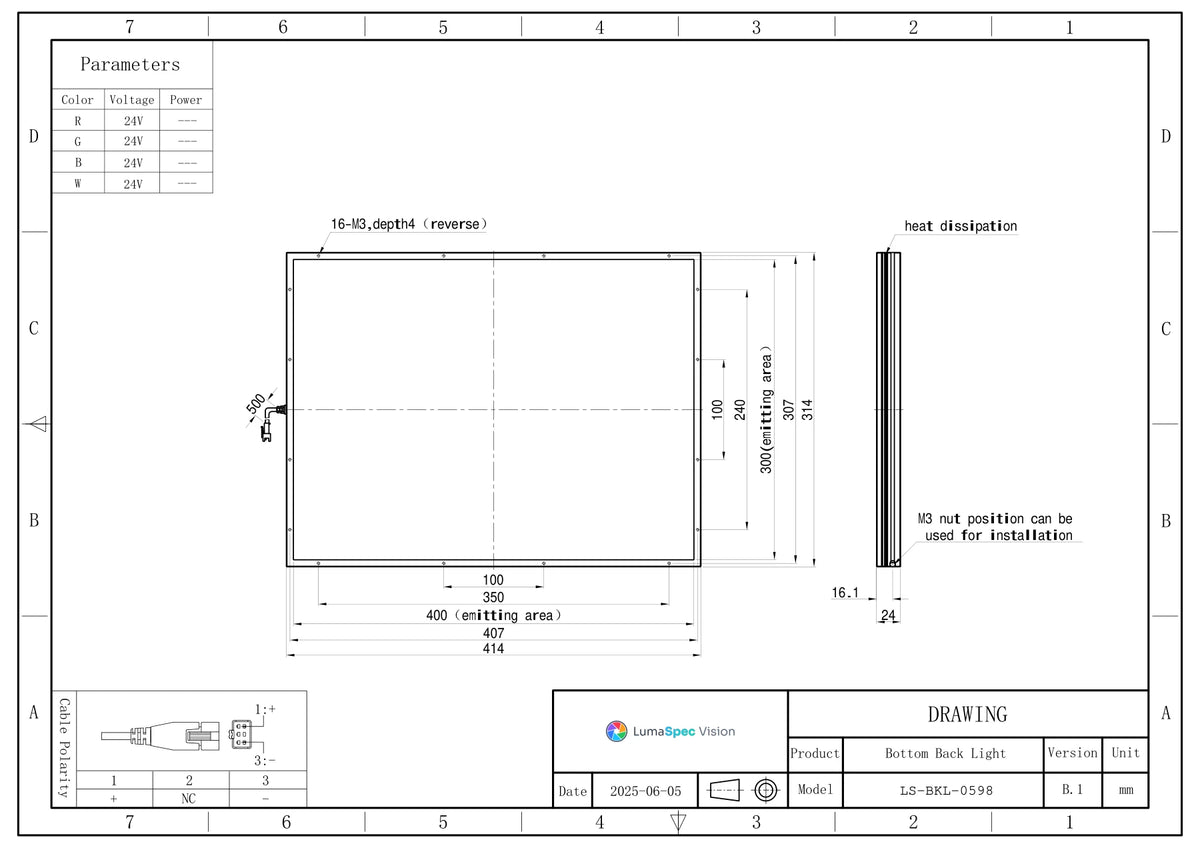

Mounting and drawing data

drawing table (X = qty of M3 depth-4 mounting holes, E = thickness): X=16, C=407, D=307, E=24

LS-BKL-0598

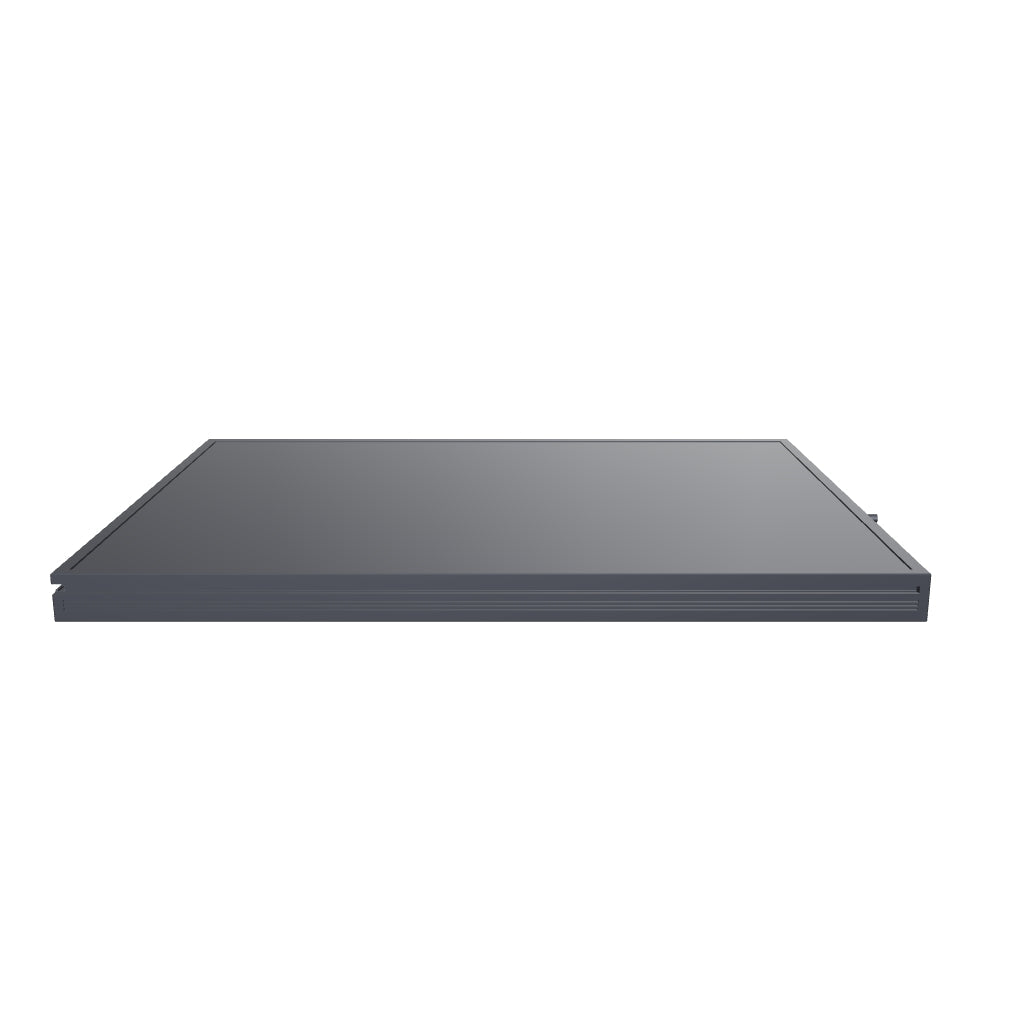

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-BKL-0598 — Backlights, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Emitting area (mm)
400x300
Voltage (V)
24
Outer size L x W x H (mm)
414x314x24

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
