Diffused machine vision bar lights

Size a diffused linear illumination layout

Compare bar lights classified as diffused for machine vision. Select emitting length, mounting position and colour around the object field and the reflections the camera must see.

All Bar lights

427 models Configure a systemAll lights
Diffused machine vision bar lights

289-312 of 427 models

Products

  • Bar light, 828 x 40 mm, Blue

    LS-BAR-1215

    • Colour Blue
    • Emitting area 816 mm × 31.6 mm
    • Size 828 mm × 40 mm × 30 mm

    $1,089.00

    Ships in 2-3 weeks

  • Bar light, 828 x 40 mm, Red

    LS-BAR-1218

    • Colour Red
    • Emitting area 816 mm × 31.6 mm
    • Size 828 mm × 40 mm × 30 mm

    $1,089.00

    Ships in 2-3 weeks

  • Bar light, 828 x 40 mm, White

    LS-BAR-1219

    • Colour White
    • Emitting area 816 mm × 31.6 mm
    • Size 828 mm × 40 mm × 30 mm

    $1,089.00

    Ships in 2-3 weeks

  • Bar light, 828 x 30 mm, Blue

    LS-BAR-1210

    • Colour Blue
    • Emitting area 816 mm × 21.6 mm
    • Size 828 mm × 30 mm × 30 mm

    $1,079.00

    Ships in 2-3 weeks

  • Bar light, 828 x 30 mm, Red

    LS-BAR-1213

    • Colour Red
    • Emitting area 816 mm × 21.6 mm
    • Size 828 mm × 30 mm × 30 mm

    $1,079.00

    Ships in 2-3 weeks

  • Bar light, 828 x 30 mm, White

    LS-BAR-1214

    • Colour White
    • Emitting area 816 mm × 21.6 mm
    • Size 828 mm × 30 mm × 30 mm

    $1,079.00

    Ships in 2-3 weeks

  • Bar light, 738 x 40 mm, Blue

    LS-BAR-1205

    • Colour Blue
    • Emitting area 726 mm × 31.6 mm
    • Size 738 mm × 40 mm × 30 mm

    $979.00

    Ships in 2-3 weeks

  • Bar light, 738 x 40 mm, Red

    LS-BAR-1208

    • Colour Red
    • Emitting area 726 mm × 31.6 mm
    • Size 738 mm × 40 mm × 30 mm

    $979.00

    Ships in 2-3 weeks

  • Bar light, 738 x 40 mm, White

    LS-BAR-1209

    • Colour White
    • Emitting area 726 mm × 31.6 mm
    • Size 738 mm × 40 mm × 30 mm

    $979.00

    Ships in 2-3 weeks

  • Bar light, 738 x 30 mm, Blue

    LS-BAR-1200

    • Colour Blue
    • Emitting area 726 mm × 21.6 mm
    • Size 738 mm × 30 mm × 30 mm

    $979.00

    Ships in 2-3 weeks

  • Bar light, 738 x 30 mm, Red

    LS-BAR-1203

    • Colour Red
    • Emitting area 726 mm × 21.6 mm
    • Size 738 mm × 30 mm × 30 mm

    $979.00

    Ships in 2-3 weeks

  • Bar light, 738 x 30 mm, White

    LS-BAR-1204

    • Colour White
    • Emitting area 726 mm × 21.6 mm
    • Size 738 mm × 30 mm × 30 mm

    $979.00

    Ships in 2-3 weeks

  • Bar light, 648 x 40 mm, Blue

    LS-BAR-1195

    • Colour Blue
    • Emitting area 636 mm × 31.6 mm
    • Size 648 mm × 40 mm × 30 mm

    $759.00

    Ships in 2-3 weeks

  • Bar light, 648 x 40 mm, Red

    LS-BAR-1198

    • Colour Red
    • Emitting area 636 mm × 31.6 mm
    • Size 648 mm × 40 mm × 30 mm

    $759.00

    Ships in 2-3 weeks

  • Bar light, 648 x 40 mm, White

    LS-BAR-1199

    • Colour White
    • Emitting area 636 mm × 31.6 mm
    • Size 648 mm × 40 mm × 30 mm

    $759.00

    Ships in 2-3 weeks

Compare
LS-BAR-1216Bar light, 828 x 40 mm, IR 850 nm Infrared816 mm × 31.6 mm828 mm × 40 mm × 30 mm24 VDC76.1 W850 nm$1,089.00 Ships in 2-3 weeks
LS-BAR-1215Bar light, 828 x 40 mm, Blue Blue816 mm × 31.6 mm828 mm × 40 mm × 30 mm24 VDC68.6 W465 nm$1,089.00 Ships in 2-3 weeks
LS-BAR-1218Bar light, 828 x 40 mm, Red Red816 mm × 31.6 mm828 mm × 40 mm × 30 mm24 VDC53.8 W625 nm$1,089.00 Ships in 2-3 weeks
LS-BAR-1219Bar light, 828 x 40 mm, White White816 mm × 31.6 mm828 mm × 40 mm × 30 mm24 VDC93.9 W-$1,089.00 Ships in 2-3 weeks

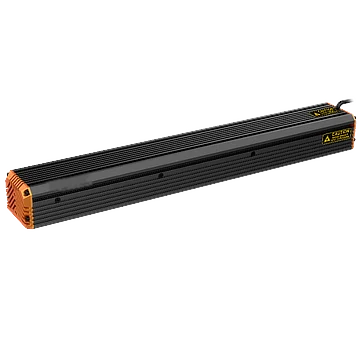

LS-BAR-1212Bar light, 828 x 30 mm, IR 940 nm Infrared816 mm × 21.6 mm828 mm × 30 mm × 30 mm24 VDC51.6 W940 nm$1,079.00 Ships in 2-3 weeks
LS-BAR-1211Bar light, 828 x 30 mm, IR 850 nm Infrared816 mm × 21.6 mm828 mm × 30 mm × 30 mm24 VDC50.6 W850 nm$1,079.00 Ships in 2-3 weeks
LS-BAR-1210Bar light, 828 x 30 mm, Blue Blue816 mm × 21.6 mm828 mm × 30 mm × 30 mm24 VDC45.6 W465 nm$1,079.00 Ships in 2-3 weeks
LS-BAR-1213Bar light, 828 x 30 mm, Red Red816 mm × 21.6 mm828 mm × 30 mm × 30 mm24 VDC35.8 W625 nm$1,079.00 Ships in 2-3 weeks
LS-BAR-1214Bar light, 828 x 30 mm, White White816 mm × 21.6 mm828 mm × 30 mm × 30 mm24 VDC60.2 W-$1,079.00 Ships in 2-3 weeks
LS-BAR-1207Bar light, 738 x 40 mm, IR 940 nm Infrared726 mm × 31.6 mm738 mm × 40 mm × 30 mm24 VDC68.6 W940 nm$979.00 Ships in 2-3 weeks
LS-BAR-1206Bar light, 738 x 40 mm, IR 850 nm Infrared726 mm × 31.6 mm738 mm × 40 mm × 30 mm24 VDC68.6 W850 nm$979.00 Ships in 2-3 weeks
LS-BAR-1205Bar light, 738 x 40 mm, Blue Blue726 mm × 31.6 mm738 mm × 40 mm × 30 mm24 VDC61.0 W465 nm$979.00 Ships in 2-3 weeks
LS-BAR-1208Bar light, 738 x 40 mm, Red Red726 mm × 31.6 mm738 mm × 40 mm × 30 mm24 VDC47.8 W625 nm$979.00 Ships in 2-3 weeks
LS-BAR-1209Bar light, 738 x 40 mm, White White726 mm × 31.6 mm738 mm × 40 mm × 30 mm24 VDC70.9 W-$979.00 Ships in 2-3 weeks
LS-BAR-1202Bar light, 738 x 30 mm, IR 940 nm Infrared726 mm × 21.6 mm738 mm × 30 mm × 30 mm24 VDC45.8 W940 nm$979.00 Ships in 2-3 weeks
LS-BAR-1201Bar light, 738 x 30 mm, IR 850 nm Infrared726 mm × 21.6 mm738 mm × 30 mm × 30 mm24 VDC45.1 W850 nm$979.00 Ships in 2-3 weeks
LS-BAR-1200Bar light, 738 x 30 mm, Blue Blue726 mm × 21.6 mm738 mm × 30 mm × 30 mm24 VDC40.6 W465 nm$979.00 Ships in 2-3 weeks
LS-BAR-1203Bar light, 738 x 30 mm, Red Red726 mm × 21.6 mm738 mm × 30 mm × 30 mm24 VDC31.9 W625 nm$979.00 Ships in 2-3 weeks
LS-BAR-1204Bar light, 738 x 30 mm, White White726 mm × 21.6 mm738 mm × 30 mm × 30 mm24 VDC53.6 W-$979.00 Ships in 2-3 weeks
LS-BAR-1197Bar light, 648 x 40 mm, IR 940 nm Infrared636 mm × 31.6 mm648 mm × 40 mm × 30 mm24 VDC60.2 W940 nm$759.00 Ships in 2-3 weeks
LS-BAR-1196Bar light, 648 x 40 mm, IR 850 nm Infrared636 mm × 31.6 mm648 mm × 40 mm × 30 mm24 VDC59 W850 nm$759.00 Ships in 2-3 weeks
LS-BAR-1195Bar light, 648 x 40 mm, Blue Blue636 mm × 31.6 mm648 mm × 40 mm × 30 mm24 VDC53.3 W465 nm$759.00 Ships in 2-3 weeks
LS-BAR-1198Bar light, 648 x 40 mm, Red Red636 mm × 31.6 mm648 mm × 40 mm × 30 mm24 VDC41.8 W625 nm$759.00 Ships in 2-3 weeks
LS-BAR-1199Bar light, 648 x 40 mm, White White636 mm × 31.6 mm648 mm × 40 mm × 30 mm24 VDC73.2 W-$759.00 Ships in 2-3 weeks

Size a diffused linear illumination layout

A bar light provides a linear source that can be positioned around the inspection. Diffusion is one way to change the highlights and shadows produced by that source. Use the actual emitting dimensions and intended distance when planning one bar or a multi-light arrangement.

  • Compare emitting length and width with the region of interest. Check whether a printed dimension describes the illuminated area or only the outside housing.
  • Allow adjustment of position and angle to evaluate the complete field. A bar length alone does not establish a uniform illuminated area at every distance.
  • Check the model supply, power, connector and control mode, and size the controller for the actual number of lights and their combined electrical load.
