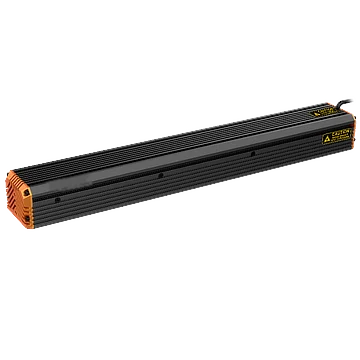

Bar Light, 900 x 40 mm, Red (LS-BAR-1218)
  • Bar Light, 900 x 40 mm, Red (LS-BAR-1218)
  • LS-BAR-1218 dimensions (mm)

Bar lights

Bar light, 828 x 40 mm, Red (LS-BAR-1218)

Model LS-BAR-1218

  • ColourRed
  • Emitting area816 mm × 31.6 mm
  • Size828 mm × 40 mm × 30 mm
  • Voltage24 VDC
  • Power53.8 W
  • Wavelength625 nm
$1,089.00

Ships in 2-3 weeks

2.34 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

lumaspecvision.com/products/lumaspec-ls-bar-1218

Request a quote

Bar light, 828 x 40 mm, Red (LS-BAR-1218)LS-BAR-1218

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

A larger emitting area than most of the series, for larger parts and fields: LS-BAR-1218, the 53.8 W version, has an 816 x 31.6 mm emitting area, in the upper half of the 36 sizes in the series (to light a strip up to about 816 mm long).

LS-BAR-1218: dimension 828 mm x 40 mm x 30 mm, emitting area dimension 816 mm x 31.6 mm, LED rows 6, power 53.8 W.

Bar Light, 900 x 40 mm, Red.

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy

Specifications

General

ModelLS-BAR-1218
Safety classNo danger
Cooling modeNatural cooling

Optics

Best working distance30 mm to 500 mm

Interfaces and I/O

Connector typeDual-channel SMR-03V-B
Cable length1 m

Light

ColorRed
Center illuminance/irradiance≥ 6500 lux @ 100 mm
Wavelength625 nm
Color temperatureW: 6000K to 7500K
Emitting area dimension816 mm × 31.6 mm
LED rows6
Diffuse plate includedPMMA

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% RH to 90% RH (no condensation)

Electrical

Power53.8 W
Input voltage24 VDC

Mechanical

Dimension828 mm × 40 mm × 30 mm
Weight1.6 kg
Shipping weight (estimated)2.34 kg

Engineering data

Drive and fit the LS-BAR-1218

Current at 24 V2242 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 53.8 W
Center illuminance≥ 6500 luxat 100 mm

Mounting and installation

MountingSee the dimension drawing
Cable1 m
ConnectorDual-channel SMR-03V-B

Compatible parts

Fits with this part

Checked with the configurator's fit rules: supply voltage and drive type, and the light's power against the controller's power per channel wherever both are printed.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $1,947.00

Controllers for this light

This 53.8 W light uses 67 % of one 80 W channel

This 53.8 W light uses 67 % of one 80 W channel

This 53.8 W light uses 75 % of one channel (about 72 W, from the rated output)

This 53.8 W light uses 75 % of one channel (about 72 W, from the rated output)

This 53.8 W light uses 90 % of one 60 W channel

This 53.8 W light uses 67 % of one 80 W channel

Light cables

Before you buy

Questions about the LS-BAR-1218

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which controller drives the LS-BAR-1218?

Fit-tested for this 53.8 W light: LS-CTL-0272 (80 W per channel, about 33 % headroom), LS-CTL-0260 (80 W per channel, about 33 % headroom), LS-CTL-0155 (about 72 W per channel, about 25 % headroom) and LS-CTL-0423 (about 72 W per channel, about 25 % headroom).

What supply voltage and power does the LS-BAR-1218 need?

It runs on 24 VDC and draws 53.8 W. That is about 2.24 A at 53.8 W on 24 V (calculated).

Which cable connects the LS-BAR-1218?

Fit-tested light cables for its connector: LS-LAC-0035, LS-LAC-0020 and LS-LAC-0037.

What lit area and working distance does the LS-BAR-1218 give?

The best working distance is 30 mm to 500 mm.

What temperature range is the LS-BAR-1218 rated for?

Its temperature ratings are working temperature 0 °C to 40 °C (32 °F to 104 °F); storage temperature –20 °C to 60 °C (–4 °F to 140 °F).

Other models in the Bar light (LS-BAR-S99) series

See all 172 models

How this model compares

  • Compared with LS-BAR-1216: power 53.8 W here, 76.1 W there; wavelength 625 nm here, 850 nm there.
ModelPowerColourEmitting areaSizePriceAvailabilityLink
LS-BAR-117829.8 WRed456 mm × 31.6 mm468 mm × 40 mm × 30 mm$609.00 Ships in 2-3 weeks View
LS-BAR-118835.8 WRed546 mm × 31.6 mm558 mm × 40 mm × 30 mm$689.00 Ships in 2-3 weeks View
LS-BAR-119841.8 WRed636 mm × 31.6 mm648 mm × 40 mm × 30 mm$759.00 Ships in 2-3 weeks View
LS-BAR-120847.8 WRed726 mm × 31.6 mm738 mm × 40 mm × 30 mm$979.00 Ships in 2-3 weeks View
LS-BAR-1218This model53.8 WRed816 mm × 31.6 mm828 mm × 40 mm × 30 mm$1,089.00 Ships in 2-3 weeks
LS-BAR-122859.5 WRed906 mm × 31.6 mm918 mm × 40 mm × 30 mm$1,189.00 Ships in 2-3 weeks View
LS-BAR-121568.6 WBlue816 mm × 31.6 mm828 mm × 40 mm × 30 mm$1,089.00 Ships in 2-3 weeks View
LS-BAR-123871.5 WRed1086 mm × 31.6 mm1098 mm × 40 mm × 30 mm$1,389.00 Ships in 2-3 weeks View
LS-BAR-121676.1 WInfrared816 mm × 31.6 mm828 mm × 40 mm × 30 mm$1,089.00 Ships in 2-3 weeks View
