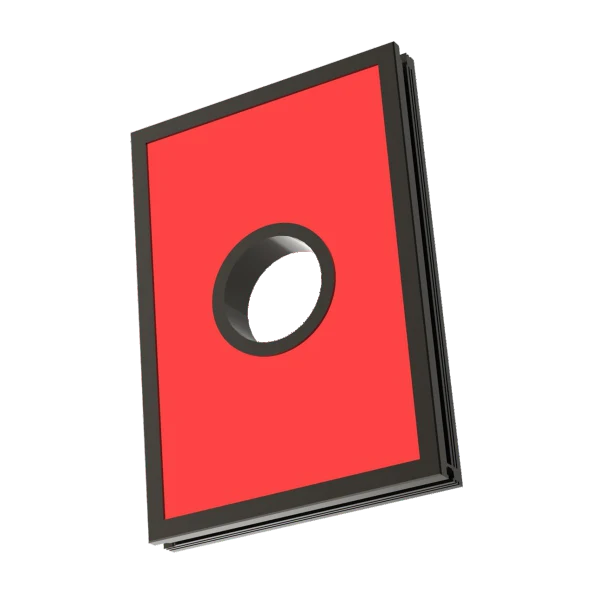

500 x 400 mm Edge-Lit Through-Hole LED Backlight
LS-2FCK-500X400-D70
- Colour Red, Green, Blue, White
- Emitting area 500x400 mm
- Size 532x432x10.5 mm
$909.00
In stock · 9 available
Lights
Backlights
Backlights sit behind the part and give the camera a sharp, high-contrast silhouette - the standard choice for gauging, outline and hole inspection, and for spotting contamination in clear film. Collimated versions keep edges crisp on thick parts; edge-lit versions are the thinnest.
Shop by colour: Red backlights · Blue backlights · Green backlights · White backlights · Infrared backlights · UV backlights
Products
400 x 300 mm Edge-Lit Through-Hole LED Backlight
LS-2FCK-400X300-D50
- Colour Red, Green, Blue, White
- Emitting area 400x300 mm
- Size 432x332x10.5 mm
$579.00
In stock · 17 available
300 x 300 mm Edge-Lit Through-Hole LED Backlight
LS-2FCK-300X300-D50
- Colour Red, Green, Blue, White
- Emitting area 300x300 mm
- Size 332x332x10.5 mm
$459.00
In stock · 14 available
400 x 200 mm Edge-Lit Through-Hole LED Backlight
LS-2FCK-400X200-D40
- Colour Red, Green, Blue, White
- Emitting area 400x200 mm
- Size 432x232x10.5 mm
$419.00
In stock · 12 available
250 x 250 mm Edge-Lit Through-Hole LED Backlight
LS-2FCK-250X250-D50
- Colour Red, Green, Blue, White
- Emitting area 250x250 mm
- Size 282x282x10.5 mm
$349.00
In stock · 14 available
300 x 200 mm Edge-Lit Through-Hole LED Backlight
LS-2FCK-300X200-D50
- Colour Red, Green, Blue, White
- Emitting area 300x200 mm
- Size 332x232x10.5 mm
$339.00
In stock · 14 available
200 x 200 mm Edge-Lit Through-Hole LED Backlight, Φ50 opening
LS-2FCK-200X200-D50
- Colour Red, Green, Blue, White
- Emitting area 200x200 mm
- Size 232x232x10.5 mm
$249.00
In stock · 17 available
250 x 150 mm Edge-Lit Through-Hole LED Backlight
LS-2FCK-250X150-D50
- Colour Red, Green, Blue, White
- Emitting area 250x150 mm
- Size 282x182x10.5 mm
$239.00
In stock · 14 available
250 x 120 mm Edge-Lit Through-Hole LED Backlight
LS-2FCK-250X120-D50
- Colour Red, Green, Blue, White
- Emitting area 250x120 mm
- Size 282x152x10.5 mm
$209.00
In stock · 15 available
100 x 100 mm Edge-Lit Through-Hole LED Backlight
LS-2FCK-100X100-D35
- Colour Red, Green, Blue, White
- Emitting area 100x100 mm
- Size 132x132x10 mm
$129.00
In stock · 12 available

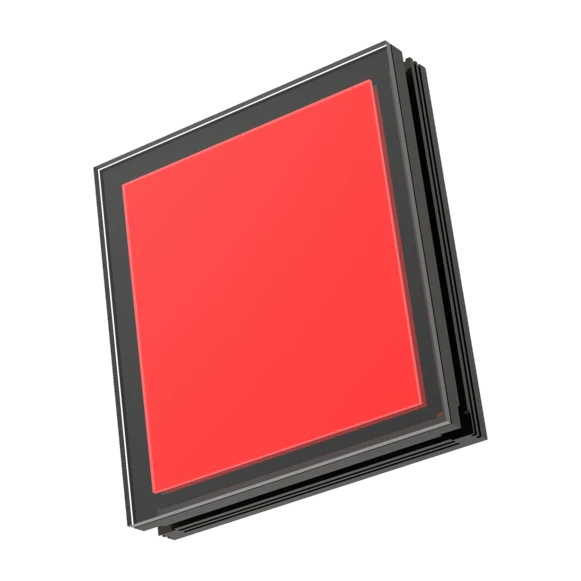

400 x 400 mm Collimated LED Backlight
LS-2BCP-400X400
- Colour Red, Green, Blue, White
- Emitting area 400x400 mm
- Size 414x414x26 mm
$859.00
In stock · 13 available
400 x 300 mm Collimated LED Backlight
LS-2BCP-400X300
- Colour Red, Green, Blue, White
- Emitting area 400x300 mm
- Size 414x314x26 mm
$669.00
In stock · 16 available
300 x 300 mm Collimated LED Backlight
LS-2BCP-300X300
- Colour Red, Green, Blue, White
- Emitting area 300x300 mm
- Size 314x314x24 mm
$519.00
In stock · 14 available
280 x 280 mm Collimated LED Backlight
LS-2BCP-280X280
- Colour Red, Green, Blue, White
- Emitting area 280x280 mm
- Size 294x294x24 mm
$469.00
In stock · 12 available
220 x 220 mm Collimated LED Backlight
LS-2BCP-220X220
- Colour Red, Green, Blue, White
- Emitting area 220x220 mm
- Size 234x234x23 mm
$319.00
In stock · 12 available
300 x 150 mm Collimated LED Backlight
LS-2BCP-300X150
- Colour Red, Green, Blue, White
- Emitting area 300x150 mm
- Size 314x164x24 mm
$309.00
In stock · 13 available
200 x 200 mm Collimated LED Backlight
LS-2BCP-200X200
- Colour Red, Green, Blue, White
- Emitting area 200x200 mm
- Size 214x214x23 mm
$279.00
In stock · 17 available
250 x 150 mm Collimated LED Backlight
LS-2BCP-250X150
- Colour Red, Green, Blue, White
- Emitting area 250x150 mm
- Size 264x164x24 mm
$269.00
In stock · 11 available
200 x 150 mm Collimated LED Backlight
LS-2BCP-200X150
- Colour Red, Green, Blue, White
- Emitting area 200x150 mm
- Size 214x164x23 mm
$229.00
In stock · 13 available
200 x 120 mm Collimated LED Backlight
LS-2BCP-200X120
- Colour Red, Green, Blue, White
- Emitting area 200x120 mm
- Size 214x134x23 mm
$199.00
In stock · 14 available
150 x 150 mm Collimated LED Backlight
LS-2BCP-150X150
- Colour Red, Green, Blue, White
- Emitting area 150x150 mm
- Size 164x164x23 mm
$199.00
In stock · 17 available
120 x 120 mm Collimated LED Backlight
LS-2BCP-120X120
- Colour Red, Green, Blue, White
- Emitting area 120x120 mm
- Size 134x134x23 mm
$159.00
In stock · 14 available
100 x 100 mm Collimated LED Backlight
LS-2BCP-100X100
- Colour Red, Green, Blue, White
- Emitting area 100x100 mm
- Size 114x114x23 mm
$139.00
In stock · 17 available
110 x 60 mm Collimated LED Backlight
LS-2BCP-110X60
- Colour Red, Green, Blue, White
- Emitting area 110x60 mm
- Size 124x74x23 mm
$119.00
In stock · 14 available
| Compare | ||||||||
|---|---|---|---|---|---|---|---|---|
 LS-2FCK-500X400-D70500 x 400 mm Edge-Lit Through-Hole LED Backlight
| Red, Green, Blue, White | 500x400 mm | 532x432x10.5 mm | 24 V | 52 W | $909.00 | 9 in stock | |
|
LS-2FCK-400X300-D50400 x 300 mm Edge-Lit Through-Hole LED Backlight
| Red, Green, Blue, White | 400x300 mm | 432x332x10.5 mm | 24 V | 36 W | $579.00 | 17 in stock | |
|
LS-2FCK-300X300-D50300 x 300 mm Edge-Lit Through-Hole LED Backlight
| Red, Green, Blue, White | 300x300 mm | 332x332x10.5 mm | 24 V | 31 W | $459.00 | 14 in stock | |
|
LS-2FCK-400X200-D40400 x 200 mm Edge-Lit Through-Hole LED Backlight
| Red, Green, Blue, White | 400x200 mm | 432x232x10.5 mm | 24 V | 43.5 W | $419.00 | 12 in stock | |
|
LS-2FCK-250X250-D50250 x 250 mm Edge-Lit Through-Hole LED Backlight
| Red, Green, Blue, White | 250x250 mm | 282x282x10.5 mm | 24 V | 26 W | $349.00 | 14 in stock | |
|
LS-2FCK-300X200-D50300 x 200 mm Edge-Lit Through-Hole LED Backlight
| Red, Green, Blue, White | 300x200 mm | 332x232x10.5 mm | 24 V | 27 W | $339.00 | 14 in stock | |
|
LS-2FCK-200X200-D50200 x 200 mm Edge-Lit Through-Hole LED Backlight, Φ50 opening
| Red, Green, Blue, White | 200x200 mm | 232x232x10.5 mm | 24 V | 20.5 W | $249.00 | 17 in stock | |
|
LS-2FCK-250X150-D50250 x 150 mm Edge-Lit Through-Hole LED Backlight
| Red, Green, Blue, White | 250x150 mm | 282x182x10.5 mm | 24 V | 26 W | $239.00 | 14 in stock | |
|
LS-2FCK-250X120-D50250 x 120 mm Edge-Lit Through-Hole LED Backlight
| Red, Green, Blue, White | 250x120 mm | 282x152x10.5 mm | 24 V | 26 W | $209.00 | 15 in stock | |
|
LS-2FCK-100X100-D35100 x 100 mm Edge-Lit Through-Hole LED Backlight
| Red, Green, Blue, White | 100x100 mm | 132x132x10 mm | 24 V | 12.5 W | $129.00 | 12 in stock | |
 LS-2BCP-400X400400 x 400 mm Collimated LED Backlight
| Red, Green, Blue, White | 400x400 mm | 414x414x26 mm | 24 V | 126.7 W | $859.00 | 13 in stock | |
|
LS-2BCP-400X300400 x 300 mm Collimated LED Backlight
| Red, Green, Blue, White | 400x300 mm | 414x314x26 mm | 24 V | 103.7 W | $669.00 | 16 in stock | |
|
LS-2BCP-300X300300 x 300 mm Collimated LED Backlight
| Red, Green, Blue, White | 300x300 mm | 314x314x24 mm | 24 V | 72 W | $519.00 | 14 in stock | |
|
LS-2BCP-280X280280 x 280 mm Collimated LED Backlight
| Red, Green, Blue, White | 280x280 mm | 294x294x24 mm | 24 V | 69.1 W | $469.00 | 12 in stock | |
|
LS-2BCP-220X220220 x 220 mm Collimated LED Backlight
| Red, Green, Blue, White | 220x220 mm | 234x234x23 mm | 24 V | 50.7 W | $319.00 | 12 in stock | |
|
LS-2BCP-300X150300 x 150 mm Collimated LED Backlight
| Red, Green, Blue, White | 300x150 mm | 314x164x24 mm | 24 V | 51.8 W | $309.00 | 13 in stock | |
|
LS-2BCP-200X200200 x 200 mm Collimated LED Backlight
| Red, Green, Blue, White | 200x200 mm | 214x214x23 mm | 24 V | 43.2 W | $279.00 | 17 in stock | |
|
LS-2BCP-250X150250 x 150 mm Collimated LED Backlight
| Red, Green, Blue, White | 250x150 mm | 264x164x24 mm | 24 V | 41.5 W | $269.00 | 11 in stock | |
|
LS-2BCP-200X150200 x 150 mm Collimated LED Backlight
| Red, Green, Blue, White | 200x150 mm | 214x164x23 mm | 24 V | 36 W | $229.00 | 13 in stock | |
|
LS-2BCP-200X120200 x 120 mm Collimated LED Backlight
| Red, Green, Blue, White | 200x120 mm | 214x134x23 mm | 24 V | 28.8 W | $199.00 | 14 in stock | |
|
LS-2BCP-150X150150 x 150 mm Collimated LED Backlight
| Red, Green, Blue, White | 150x150 mm | 164x164x23 mm | 24 V | 28.8 W | $199.00 | 17 in stock | |
|
LS-2BCP-120X120120 x 120 mm Collimated LED Backlight
| Red, Green, Blue, White | 120x120 mm | 134x134x23 mm | 24 V | 17.3 W | $159.00 | 14 in stock | |
|
LS-2BCP-100X100100 x 100 mm Collimated LED Backlight
| Red, Green, Blue, White | 100x100 mm | 114x114x23 mm | 24 V | 15.1 W | $139.00 | 17 in stock | |
|
LS-2BCP-110X60110 x 60 mm Collimated LED Backlight
| Red, Green, Blue, White | 110x60 mm | 124x74x23 mm | 24 V | 8.6 W | $119.00 | 14 in stock |
