75 mm, 1.2", 25 MP, C-mount machine vision lens
LS-FFL-0578
- Focal length 75 mm
- Mount C-mount
- Sensor 1.2"
$779.00
Ships in 2-3 weeks
Lenses
1.2-inch machine vision lenses
Distinguish 1.2-inch from 1/2-inchBrowse machine vision lenses cataloged for the 1.2-inch optical sensor format. Compare image-circle coverage, mount and focal length without confusing 1.2-inch with the smaller 1/2-inch format.
Products

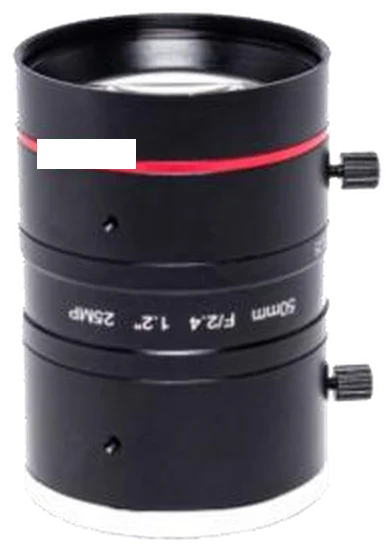

50 mm, 1.2", 25 MP, C-mount machine vision lens
LS-FFL-0577
- Focal length 50 mm
- Mount C-mount
- Sensor 1.2"
$739.00
Ships in 2-3 weeks

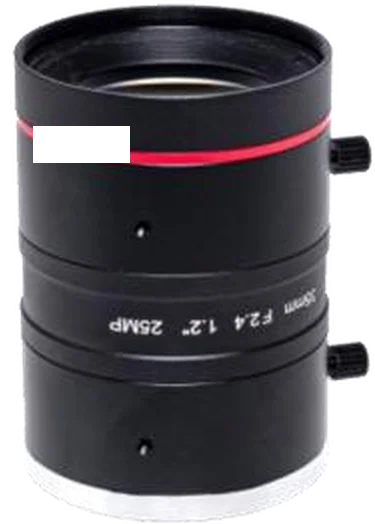

35 mm, 1.2", 25 MP, C-mount machine vision lens
LS-FFL-0576
- Focal length 35 mm
- Mount C-mount
- Sensor 1.2"
$709.00
Ships in 2-3 weeks

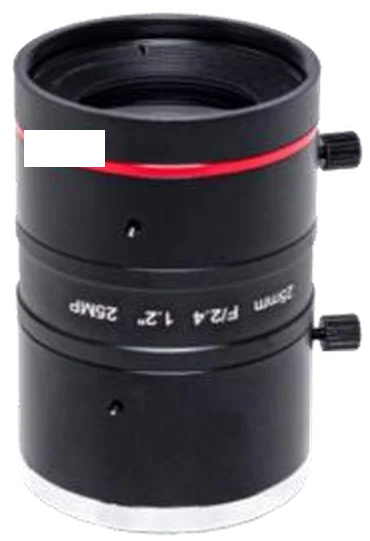

25 mm, 1.2", 25 MP, C-mount machine vision lens
LS-FFL-0575
- Focal length 25 mm
- Mount C-mount
- Sensor 1.2"
$689.00
Ships in 2-3 weeks

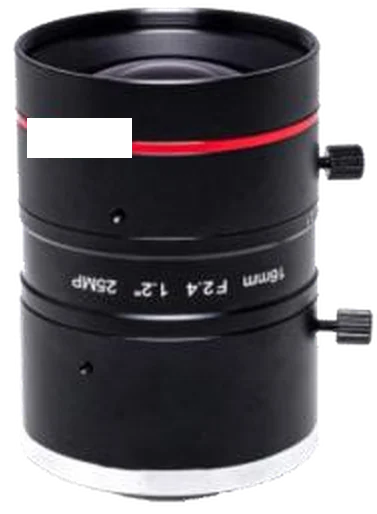

16 mm, 1.2", 25 MP, C-mount machine vision lens
LS-FFL-0574
- Focal length 16 mm
- Mount C-mount
- Sensor 1.2"
$679.00
Ships in 2-3 weeks

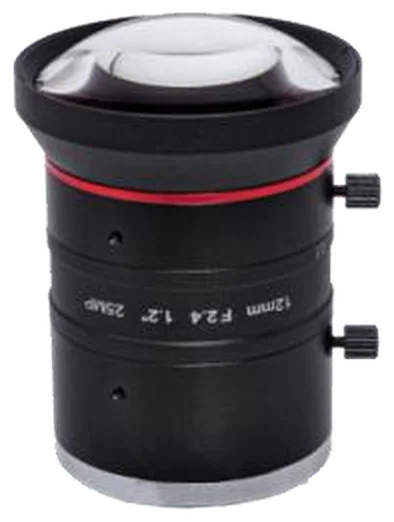

12 mm, 1.2", 25 MP, C-mount machine vision lens
LS-FFL-0573
- Focal length 12 mm
- Mount C-mount
- Sensor 1.2"
$669.00
Ships in 2-3 weeks

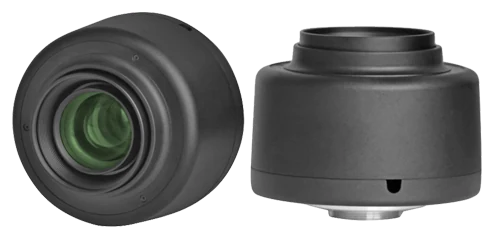

35 mm, 1.2", 25 MP, C-mount motorized-focus lens
LS-FFL-1510
- Focal length 35 mm
- Mount C-mount
- Sensor 1.2"
$1,449.00
Ships in 2-3 weeks
90 mm, 1.2", 20 MP, C-mount macro lens
LS-FFL-1448
- Focal length 90 mm
- Magnification 0.45x-0.33x
- Mount C-mount
$849.00
Ships in 2-3 weeks
75 mm, 1.2", 10 MP, C-mount liquid-lens autofocus lens
LS-FFL-1418
- Focal length 75 mm
- Mount C-mount
- Sensor 1.2"
$959.00
Ships in 2-3 weeks
50 mm, 1.2", 25 MP, C-mount machine vision lens, WD 150 mm
LS-FFL-0377
- Focal length 50 mm
- Mount C-mount
- Sensor 1.2"
$409.00
Ships in 2-3 weeks
35 mm, 1.2", 25 MP, C-mount machine vision lens, WD 150 mm
LS-FFL-0376
- Focal length 35 mm
- Mount C-mount
- Sensor 1.2"
$449.00
Ships in 2-3 weeks
25 mm, 1.2", 25 MP, C-mount machine vision lens, WD 150 mm
LS-FFL-0375
- Focal length 25 mm
- Mount C-mount
- Sensor 1.2"
$519.00
Ships in 2-3 weeks
20 mm, 1.2", 25 MP, C-mount machine vision lens
LS-FFL-0374
- Focal length 20 mm
- Mount C-mount
- Sensor 1.2"
$359.00
Ships in 2-3 weeks
16 mm, 1.2", 25 MP, C-mount machine vision lens, WD 150 mm
LS-FFL-0373
- Focal length 16 mm
- Mount C-mount
- Sensor 1.2"
$349.00
Ships in 2-3 weeks
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-FFL-057875 mm, 1.2", 25 MP, C-mount machine vision lens
| 75 mm | C-mount | 1.2" | F2.8 Manual iris | 25 Megapixel | - | $779.00 | Ships in 2-3 weeks | |
 LS-FFL-057750 mm, 1.2", 25 MP, C-mount machine vision lens
| 50 mm | C-mount | 1.2" | F2.4 Manual iris | 25 Megapixel | - | $739.00 | Ships in 2-3 weeks | |
 LS-FFL-057635 mm, 1.2", 25 MP, C-mount machine vision lens
| 35 mm | C-mount | 1.2" | F2.4 Manual iris | 25 Megapixel | - | $709.00 | Ships in 2-3 weeks | |
 LS-FFL-057525 mm, 1.2", 25 MP, C-mount machine vision lens
| 25 mm | C-mount | 1.2" | F2.4 Manual iris | 25 Megapixel | - | $689.00 | Ships in 2-3 weeks | |
 LS-FFL-057416 mm, 1.2", 25 MP, C-mount machine vision lens
| 16 mm | C-mount | 1.2" | F2.4 Manual iris | 25 Megapixel | - | $679.00 | Ships in 2-3 weeks | |
 LS-FFL-057312 mm, 1.2", 25 MP, C-mount machine vision lens
| 12 mm | C-mount | 1.2" | F2.4 Manual iris | 25 Megapixel | - | $669.00 | Ships in 2-3 weeks | |
 LS-FFL-151035 mm, 1.2", 25 MP, C-mount motorized-focus lens
| 35 mm | C-mount | 1.2" | F2.4-16 | 25 MP | - | $1,449.00 | Ships in 2-3 weeks | |
 LS-FFL-144890 mm, 1.2", 20 MP, C-mount macro lens
| 90 mm | C-mount | 1.2" | F2.8 | - | 0.45x-0.33x | $849.00 | Ships in 2-3 weeks | |
 LS-FFL-141875 mm, 1.2", 10 MP, C-mount liquid-lens autofocus lens
| 75 mm | C-mount | 1.2" | F8.7 | 0.3 > @ 75 lp/mm | - | $959.00 | Ships in 2-3 weeks | |
 LS-FFL-037750 mm, 1.2", 25 MP, C-mount machine vision lens, WD 150 mm
| 50 mm | C-mount | 1.2" | - | - | - | $409.00 | Ships in 2-3 weeks | |
|
LS-FFL-037635 mm, 1.2", 25 MP, C-mount machine vision lens, WD 150 mm
| 35 mm | C-mount | 1.2" | - | - | - | $449.00 | Ships in 2-3 weeks | |
|
LS-FFL-037525 mm, 1.2", 25 MP, C-mount machine vision lens, WD 150 mm
| 25 mm | C-mount | 1.2" | - | - | - | $519.00 | Ships in 2-3 weeks | |
|
LS-FFL-037420 mm, 1.2", 25 MP, C-mount machine vision lens
| 20 mm | C-mount | 1.2" | - | - | - | $359.00 | Ships in 2-3 weeks | |
|
LS-FFL-037316 mm, 1.2", 25 MP, C-mount machine vision lens, WD 150 mm
| 16 mm | C-mount | 1.2" | - | - | - | $349.00 | Ships in 2-3 weeks |
Distinguish 1.2-inch from 1/2-inch
Optical format is a sensor-size designation, not the literal physical width of the chip. The decimal format 1.2-inch is different from the fraction 1/2-inch. Confirm the camera sensor dimensions and the lens image circle, then use working distance and field of view to select focal length.
- Read the sensor designation carefully: 1.2-inch and 1/2-inch are separate format labels. Use the camera model and active sensor dimensions when confirming coverage.
- Match the mechanical mount and focus arrangement in addition to the format. Check the drawing for flange clearance and any required adapter.
- Compare the printed resolution, aperture and distortion at the intended field and working distance; a shared sensor-format label does not make the models optically identical.
