Cameras

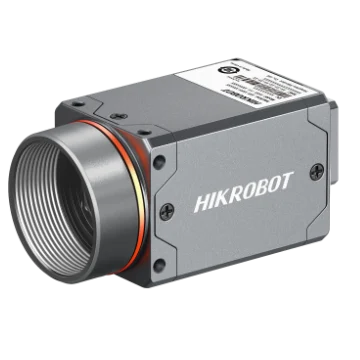

1/1.7-inch area scan cameras

Hikrobot industrial area-scan cameras from 0.4 MP to over 600 MP, mono and colour, global or rolling shutter. These cameras carry a 1/1.7-inch sensor (9.5 mm diagonal): choose a lens rated for this format or larger, so the image circle covers the whole sensor.

All area scan cameras · 1.1-inch area scan cameras · 1-inch area scan cameras · 2/3-inch area scan cameras · 1/1.8-inch area scan cameras · 1/2-inch area scan cameras · 1/2.5-inch area scan cameras · 1/2.9-inch area scan cameras · APS-C area scan cameras · APS-H area scan cameras

59 models Configure a system All cameras

Products

									Compare
MV-CU020-90GM V2Hikrobot MV-CU020-90GM V2 2.5 MP Area Scan Camera, GigE, GMAX4002, Mono	2048 × 1200	CMOS, global shutter	49 fps @ 2048 × 1200 Mono 8	C-mount	Mono	4 μm × 4 μm	$309.00	Not available in the United States	Compare MV-CU020-90GM V2
MV-CU020-90GCHikrobot MV-CU020-90GC 2.5 MP Area Scan Camera, GigE, GMAX4002, Color	2048 × 1200	CMOS, global shutter	49 fps @ 2048 × 1200 Bayer GB 8	C-mount	Color	4 μm × 4 μm	$309.00	Not available in the United States	Compare MV-CU020-90GC
MV-CU020-90GMHikrobot MV-CU020-90GM 2.5 MP Area Scan Camera, GigE, GMAX4002, Mono	2048 × 1200	CMOS, global shutter	49 fps @ 2048 × 1200 Mono 8	C-mount	Mono	4 μm × 4 μm	$309.00	Not available in the United States	Compare MV-CU020-90GM
MV-CS120-10UCHikrobot MV-CS120-10UC 12 MP Area Scan Camera, USB3.0, Color	4024 × 3036	CMOS, rolling shutter	29.4 fps @ 4024 × 3036 Bayer RG 8	C-mount	Color	-	$1,349.00	Not available in the United States	Compare MV-CS120-10UC
MV-CS120-10UMHikrobot MV-CS120-10UM 12 MP Area Scan Camera, USB3.0, Mono	4024 × 3036	CMOS, rolling shutter	29.4 fps @ 4024 × 3036 Mono 8	C-mount	Mono	-	$1,349.00	Not available in the United States	Compare MV-CS120-10UM
MV-CS020-10UCHikrobot MV-CS020-10UC 2 MP Area Scan Camera, USB3.0, IMX430, 2nd Generation, Color	1624 × 1240	CMOS, global shutter	90 fps @ 1624 × 1240 Bayer RG 8	C-mount	Color	-	$629.00	Not available in the United States	Compare MV-CS020-10UC
MV-CS020-10UMHikrobot MV-CS020-10UM 2 MP Area Scan Camera, USB3.0, IMX430, 2nd Generation, Mono	1624 × 1240	CMOS, global shutter	90 fps @ 1624 × 1240 Mono 8	C-mount	Mono	-	$629.00	Not available in the United States	Compare MV-CS020-10UM
MV-CS120-10GC V5Hikrobot MV-CS120-10GC V5 12 MP Area Scan Camera, GigE, Color	4024 × 3036	CMOS, rolling shutter	10 fps @ 4024 × 3036 Bayer RG 8	C-mount	Color	1.85 μm × 1.85 μm	$1,259.00	Not available in the United States	Compare MV-CS120-10GC V5
MV-CS120-10GM V5Hikrobot MV-CS120-10GM V5 12 MP Area Scan Camera, GigE, Mono	4024 × 3036	CMOS, rolling shutter	10 fps @ 4024 × 3036 Mono 8	C-mount	Mono	1.85 μm × 1.85 μm	$1,259.00	Not available in the United States	Compare MV-CS120-10GM V5
MV-CS020-10GCHikrobot MV-CS020-10GC 2 MP Area Scan Camera, GigE, IMX430, Color	1624 × 1240	CMOS, global shutter	60 fps @ 1624 × 1240 Bayer RG 8	C-mount	Color	4.5 μm × 4.5 μm	$589.00	Not available in the United States	Compare MV-CS020-10GC
MV-CS020-10GMHikrobot MV-CS020-10GM 2 MP Area Scan Camera, GigE, IMX430, Mono	1624 × 1240	CMOS, global shutter	60 fps @ 1624 × 1240 Mono 8	C-mount	Mono	4.5 μm × 4.5 μm	$589.00	Not available in the United States	Compare MV-CS020-10GM
