Camera lookup table control through frame grabber serial

A Camera Link camera can offer image-processing controls that never appear in the acquisition software's attribute list. This creates a practical problem when you need a lookup table, a custom tone curve, or a saved camera preset rather than another exposure adjustment. The solution is to distinguish acquisition configuration from camera control, then verify whether the documented serial path exposes the missing function. You can do that without guessing commands, modifying protected settings, or assuming that an interface-compatible board supports every camera feature.

Why the configuration file can omit camera controls

Camera lookup table control belongs to the camera only when the camera actually implements that processing stage. A configuration file describes what the acquisition driver needs and which controls its integration exposes. It is not necessarily a complete inventory of the camera's firmware capabilities.

Depending on the driver, that file may define image dimensions, pixel interpretation, synchronization, and selected camera commands. Additional functions can remain accessible through a separate, documented camera-control mechanism.

Keep these layers separate:

For node-based interfaces, the feature-access error guide explains a different problem: resolving controls in an exposed feature model. An omitted Camera Link attribute instead calls for checking the camera command manual and the acquisition driver's serial documentation.

Do not add an invented attribute to a configuration file and expect the camera to recognize it. Use configuration-file editing only when the driver documents the required syntax and behavior.

Establish the documented control path first

Before writing software, obtain the camera manual and the frame-grabber programming documentation from their manufacturers or authorized distributors. Match the documentation to the installed hardware, firmware, and driver versions.

Confirm the following items:

• The camera implements the requested lookup-table or preset function.
• The frame grabber exposes a camera serial channel through a supported API or utility.
• The camera's required serial parameters are supported.
• Command termination, response framing, timeout behavior, and error responses are documented.
• The camera permits the operation in the intended acquisition state.
• The command affects the camera, rather than a host display or frame-grabber processing stage.

A LUT in a display application can make the preview brighter while leaving acquired pixel values unchanged. Conversely, an on-camera LUT may alter the transmitted values before the frame grabber receives them. Establish where processing occurs before comparing images.

If several application components can change camera settings, assign a single owner to serial control. Otherwise, an acquisition initialization routine may overwrite a setting immediately after your command succeeds.

Verify commands as complete transactions

Treat serial control as a command-response protocol, not a sequence of unchecked writes. The exact functions and command bytes must come from the applicable documentation; there is no universal Camera Link LUT command.

A reliable transaction follows this sequence:

1. Record the baseline. Save the active acquisition configuration and read available camera status. Capture a reference image under fixed illumination.
2. Enter the required operating state. Stop acquisition if the camera or driver requires it for the requested change. Wait for outstanding operations to finish.
3. Open the documented serial endpoint. Confirm that it belongs to the intended board, port, and camera. Discovery order is not a reliable camera identity.
4. Send a harmless documented query. Use an identification or status request, if supported, before attempting a write.
5. Assemble the complete response. A read call may return only part of a message. Follow the documented terminator or length rule within a bounded timeout.
6. Send the requested setting. Preserve the specified encoding, separators, checksums, and termination exactly.
7. Check the camera's response. Distinguish acceptance, rejection, busy status, and transport failure.
8. Read back and test. Query the resulting setting where supported, then inspect newly captured image data.

Log the transmitted bytes, received bytes, timestamps, camera identity, and interpreted result. Represent control characters explicitly in diagnostic logs so that missing termination does not look like a valid command.

A successful write API call usually establishes only what that API documents. It may mean that bytes were queued or transmitted, not that the camera accepted the setting. Likewise, an acknowledgement may confirm syntax without proving that a preset was saved permanently.

Avoid automatic retries for state-changing commands unless their behavior is documented. Repeating a status query and repeating a preset-save operation have different consequences.

Understand what higher-bit-depth mapping removes

A lookup table maps an input code to an output code. If the output has fewer available codes, multiple input values must share an output value. The mapping can redistribute contrast, but it cannot retain every original distinction.

Consider a hypothetical camera with a 10-bit processing input and an 8-bit transmitted output. These are example values, not specifications for any product below.

For an input code of 512:

The neighboring input code 513 also maps to 128. Once only that output is transmitted, downstream software cannot determine which original input produced it.

A nonlinear curve changes where output codes are allocated. For example, a hypothetical piecewise-linear curve could use these points:

The first segment allocates 128 output steps across 256 input steps. The last allocates only 31 output steps across 255 input steps. This emphasizes darker input values while compressing brighter ones.

Actual cameras may use different interpolation, rounding, clipping, or breakpoint rules. Gamma parameters also use different conventions, so verify the documented equation rather than assuming a particular parameter brightens the image.

A LUT cannot restore clipped sensor information or remove acquisition noise. If measurement depends on intensity differences, compare the processed output against a documented higher-bit-depth mode when one exists. Do not assume that such a mode is available.

Keep camera output mapping separate from host buffer interpretation. The packed pixel conversion guide covers packing and container conversion, which cannot recover information already discarded by a camera LUT.

Separate active settings from persistent presets

Loading a table, selecting a table, and saving a table can be different operations. The same distinction applies to a complete camera preset.

Build a persistence test around explicit questions:

• Did the command change the active table or only edit an inactive table?
• Does recalling a preset also change exposure, gain, image dimensions, or output format?
• Is the setting volatile, explicitly saved, or automatically retained?
• Which preset or default is selected after power is restored?
• Does application startup overwrite the camera's retained state?

First verify the active setting and its image effect without saving. Then perform the documented save operation, if required, and wait for its documented completion condition. Finally, close the application, cycle camera power using the approved procedure, reconnect, and read back the state before applying your normal startup recipe.

This order distinguishes genuine camera persistence from software that silently restores a value during connection. Repeat the test with the normal startup sequence enabled to check for conflicting writes.

A preset that changes image dimensions or transmitted format may also require a matching acquisition configuration. Do not resume capture with an incompatible buffer description.

Use the camera startup settings guide when defining which component owns initialization. If settings become read-only after reconnection, the write-protect troubleshooting guide addresses that separate access-state problem.

Choose hardware by interface and verified control support

Start with the existing camera interface, then verify the control path. The frame grabbers category and accessories finder help identify interface candidates, but catalog interface labels do not establish support for a particular camera command set.

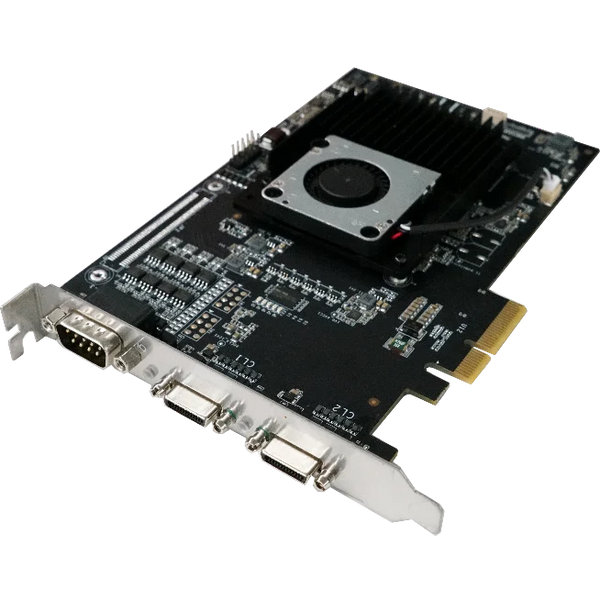

The MV-GC1102IOL is cataloged with the Camera Link interface. Treat it as a candidate for documentation review, not confirmation that your camera's LUT commands, serial parameters, or operating system are supported.

For a separately evaluated Ethernet camera system, the MV-GE1104 is cataloged with the GigE interface. It is not a replacement interface for a Camera Link camera, and this listing does not establish any camera-side LUT capability.

If changing interfaces is an option, compare area scan cameras in the camera finder. Request documentation for the specific processing features you need before selecting a replacement. Changing transport does not guarantee equivalent tone curves, preset storage, or startup behavior.

Retain a working installation when its documented serial path meets the requirement. An interface migration is justified by system needs, not merely by an attribute missing from a software panel.

Validate the image effect and isolate failures

Use a stationary target with dark, middle, and bright regions. Fix exposure, gain, illumination, and any automatic adjustments that could hide the LUT's effect. Keep the preview display mapping unchanged.

Capture repeated frames before and after the change, then compare pixel values in the same regions. A brightness change in the preview alone is insufficient evidence of camera-side processing.

If acquisition itself becomes intermittent, use the camera acquisition troubleshooting guide rather than treating every missing frame as a serial-command failure.

After driver or firmware changes, repeat the command and persistence tests. The software upgrade validation checklist provides a broader regression framework.

Checks before commissioning

Before accepting the implementation, confirm these items:

• Documentation match: installed versions agree with the command and API references.
• Single control owner: no utility or background task competes for the serial endpoint.
• Response validation: partial replies, rejection, and timeout paths are handled explicitly.
• Known processing stage: camera mapping is distinguished from display and host processing.
• Measured image effect: fixed-condition captures demonstrate the intended pixel-value change.
• Persistence policy: active state, saved state, and startup restoration are tested independently.
• Recovery path: the documented original configuration can be restored without guessing commands.

Prepare the camera identification, frame-grabber model, software versions, relevant manual sections, and a short transaction log before requesting help. Use application support to review compatibility, or begin with the accessory configurator when selecting the acquisition hardware.
