Hikrobot MV-GC1102IOL Frame Grabber

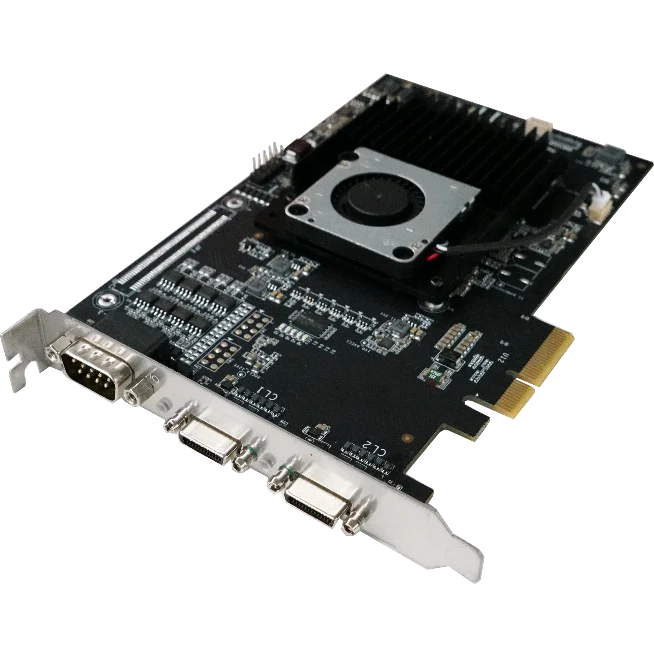

  • Hikrobot MV-GC1102IOL Frame Grabber

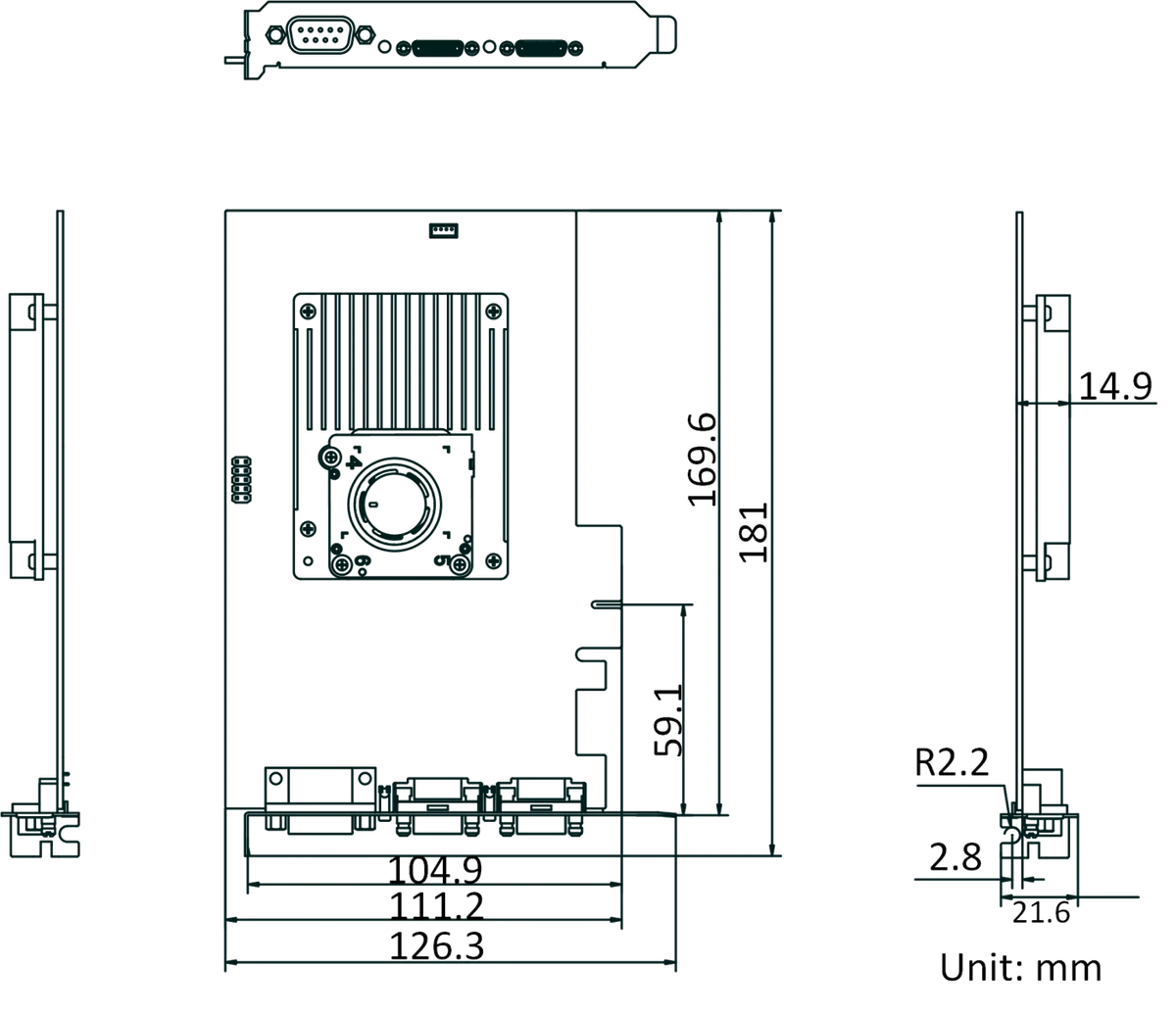

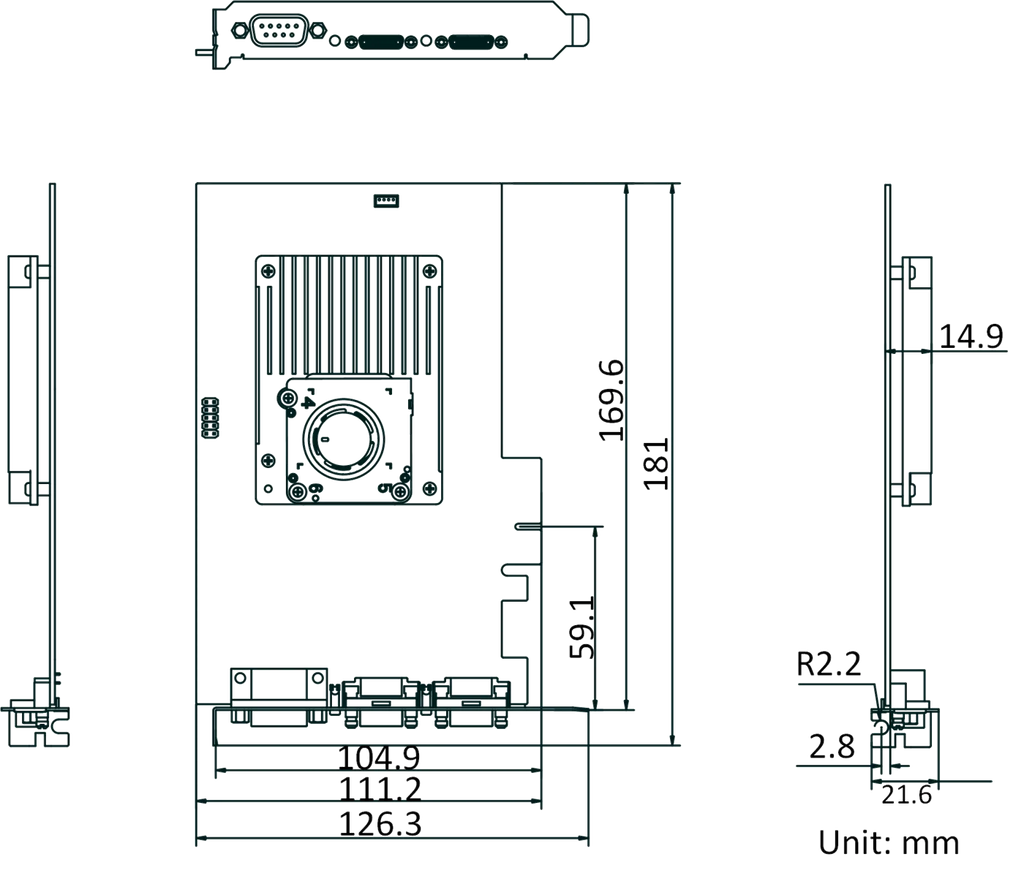

  • MV-GC1102IOL dimensions (mm)

Frame grabbers

Hikrobot MV-GC1102IOL Frame Grabber

Model MV-GC1102IOLHikrobot

  • InterfacePCI-E gen2 × 4
  • Configuration modeBase, Medium, Full, 80-bit, Lite
  • Pixel clock20 MHz to 85 MHz
  • On-board memory1 GB DDR3-RAM
$2,189.00

Ships in 2-3 weeks

0.38 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-GC1102IOL Frame Grabber. Supports Camera Link protocol with two SDR connectors accessing up to 6.8 Gbps data transfer speed theoretically. Supports PoCL with each channel providing 4 W at most.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelMV-GC1102IOL
BrandHikrobot
Configuration modeBase, Medium, Full, 80-bit, Lite
InterconnectPCI-E gen2 × 4
Indicator1
StandardCamera Link 2.1
Camera type supportedCamera Link industrial camera
Camera quantity supported2 at most
Camera connection speed6.8 Gbps
Stream2
Stream indicator2

Sensor and imaging

Pixel clock20 MHz to 85 MHz
Pixel formatMono 8/10/12/16, Bayer 8/10/12/16, RGB 8, BGR 8

Interfaces and I/O

InterfaceSDR × 2
I/O TypeConfigurable input/output × 8, compatible with single-ended/differential; Line 2/3 supports 3.3 VDC to 26 VDC input and 3.3 VDC to 26 VDC output; Line 0/1/4/5/6/7 supports 3.3 VDC to 12 VDC input, and 3.3 VDC output
ConnectorDB9 male connector, 9-pin header (2.54 mm interval, 2 × 5, 10-pin hole)
Client softwareMVS

Environment and compliance

TemperatureWorking temperature: 0 °C to 60 °C (32 °F to 140 °F); Storage temperature: -20 °C to 70 °C (-4 °F to 158 °F)
Humidity10% to 95% RH, non-condensing
CertificationCE, RoHS, KC

Computing

On-board memory1 GB DDR3-RAM
Operating system32/64-bit Windows 7/10

Electrical

Power outputPoCL, each channel provides 4 W@ 12 VDC at most
Power consumptionTyp. 9 W (without PoCL)

Mechanical

Delivery bandwidth1720 MB/s (max. transmission bandwidth), 1600 MB/s (sustained transmission bandwidth)
Dimension181 mm ×126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9")
Shipping weight (estimated)0.38 kg
