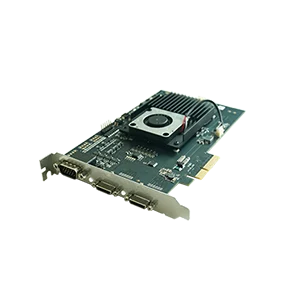

Hikrobot MV-GC1002-V2 CML FrameGrabber, with DB15 connector

Model MV-GC1002-V2Hikrobot

  • InterfacePCI-E gen2 × 4
  • Configuration modeBase, Medium, Full, 80-bit
  • Pixel clock20 MHz to 85 MHz
  • On-board memory1 GB DDR3-RAM
$2,189.00

Ships in 2-3 weeks

0.38 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-GC1002-V2 CML FrameGrabber, with DB15 connector. Supports Camera Link protocol with two SDR connectors accessing up to 6.8 Gbps data transfer speed theoretically. Supports PoCL with each channel providing 4 W at most.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelMV-GC1002-V2
BrandHikrobot
Configuration modeBase, Medium, Full, 80-bit
InterconnectPCI-E gen2 × 4
Indicator1
StandardCamera Link 2.1
Camera type supportedCamera Link industrial camera
Camera quantity supported2 at most
Camera connection speed6.8 Gbps
Stream2
Stream indicator2

Sensor and imaging

Pixel clock20 MHz to 85 MHz
Pixel formatMono 8/10/12/16; Bayer 8/10/12/16; RGB 8, BGR 8

Interfaces and I/O

InterfaceSDR × 2
I/O TypeConfigurable input/output × 11, compatible with single-ended/differential and support cascading; Baffle I/O: Line 0 to Line 6 support 3.3 VDC to 24 VDC input/output; Pin header I/O: Line 7 to Line 10 support 3.3 VDC to 12 VDC input, and 3.3 VDC output
ConnectorDB15 male connector, 9-pin header (2.54 mm interval, 2 × 5, 10 pin hole)
Client softwareMVS

Environment and compliance

TemperatureWorking temperature: 0 °C to 60 °C (32 °F to 140 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F)
Humidity10% RH to 95% RH (no condensation)
CertificationCE, RoHS, UL

Computing

On-board memory1 GB DDR3-RAM
Operating systemWindows 7/10/11, Ubuntu16.04 to 22.04 on Linux

Electrical

Power outputPoCL, each channel provides 4 W @ 12 VDC at most
Power consumptionTyp. 7 W (without PoCL)

Mechanical

Delivery bandwidth1720 MB/s (max. transmission bandwidth); 1600 MB/s (sustained transmission bandwidth)
Dimension181 mm ×126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9")
Shipping weight (estimated)0.38 kg
