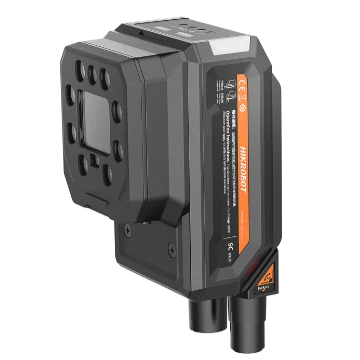

Hikrobot YTH-INA050M-16M-WBN-MF 5 MP mono smart camera

Model YTH-INA050M-16M-WBN-MFHikrobot

Resolution2432 × 2048
SensorCMOS, global shutter
InterfaceGigabit Ethernet(1000Mbit/s)
Speed60 fps
Lens mountM12
Mono / colourMono

$2,359.00

Ships in 2-3 weeks

0.62 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineer Browse Smart cameras & vision sensors

YTH-INA050M-16M-WBN-MF: resolution 2432 x 2048; sensor type CMOS, global shutter; sensor size 1/1.45"; max. frame rate 60 fps; mono/color Mono.

Hikrobot YTH-INA050M-16M-WBN-MF 5 MP mono smart camera. Embedded AI deep-learning algorithms for character recognition, object recognition, defect detection and more Integrated VM algorithm platform software with free use of 140+ algorithm functions

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CEKC

Specifications

General

Model	YTH-INA050M-16M-WBN-MF
Brand	Hikrobot
Function module	Vision Master Platform (include deep learning module)
Lens cap	Semi-polarizing lens cover, Clear optional, Full-polarized, Diffuse lens cover
Indicator	Power indicator (PWR), network indicator (LNK), and user-defined indicator (U1/U2)

Optics

Focal length	16 mm

Sensor and imaging

Sensor type	CMOS, global shutter
Pixel size	3.45 μm × 3.45 μm
Sensor size	1/1.45"
Resolution	2432 × 2048
Max. frame rate	60 fps
Gain	0 dB ~ 37 dB
Exposure time	15 μs ~ 3000 μs
Pixel format	Mono 8
Mono/color	Mono

Interfaces and I/O

Communication protocol	TCP, UDP, Modbus, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc.
Data interface	Gigabit Ethernet(1000Mbit/s)
Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input × 3 (Line 0/1/2), opto-isolated output × 3 (Line 3/4/5), RS-232 × 1

Light

Light source	White light source by default. Red, blue, or IR light source is optional.

Environment and compliance

Ingress protection	IP67
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, KC

Computing

Memory	8 GB
Storage	64 GB

Electrical

Power supply	24 VDC
Power consumption	Typical power: 12.3 W @ 24 VDC (built-in light on); Max. power: 48 W @ 24 VDC (built-in light on)

Mechanical

Lens mount	M12-mount, mechanical focusing

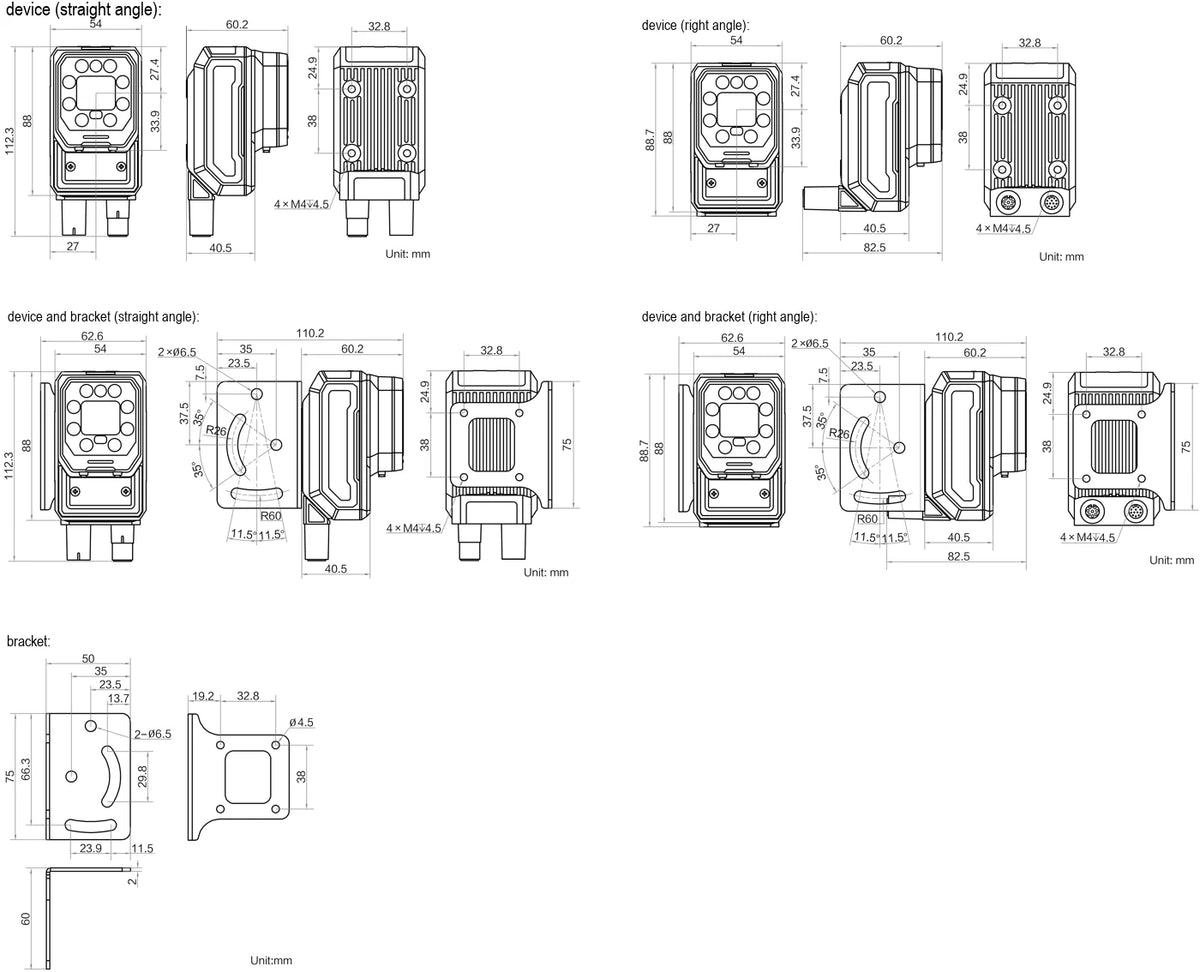

Dimension	Straight: 112.3 mm × 54 mm × 60.2 mm; Right-angle: 88.7 mm × 54 mm × 82.5 mm
Weight	Approx. 370 g (0.8 lb.)
Shipping weight (estimated)	0.62 kg

Downloads

Datasheet (PDF, Chinese)YTH-INA050M-16M-WBN-MF · 996 KB

Features

Frame rate up to 60 fps
Exposure time 15 µs to 3000 µs
Embedded AI deep-learning algorithms for character recognition, object recognition, defect detection and more
Integrated VM algorithm platform software with free use of 140+ algorithm functions
Rich I/O interface for multiple input and output signals
Supports multiple industrial communication modes for easy integration
Comprehensive status indicators for easy setup and maintenance
IP67 protection for harsh industrial environments

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Engineering data

The YTH-INA050M-16M-WBN-MF at a glance

The numbers that set this model apart, taken from its own printed specifications.

Resolution2432 × 2048 px

Max. frame rate60 fps

Focal length16 mm

Ingress protectionIP67

Power consumption12.3 Wtyp. at 24 V DC; max. 48 W

ShutterGlobal
