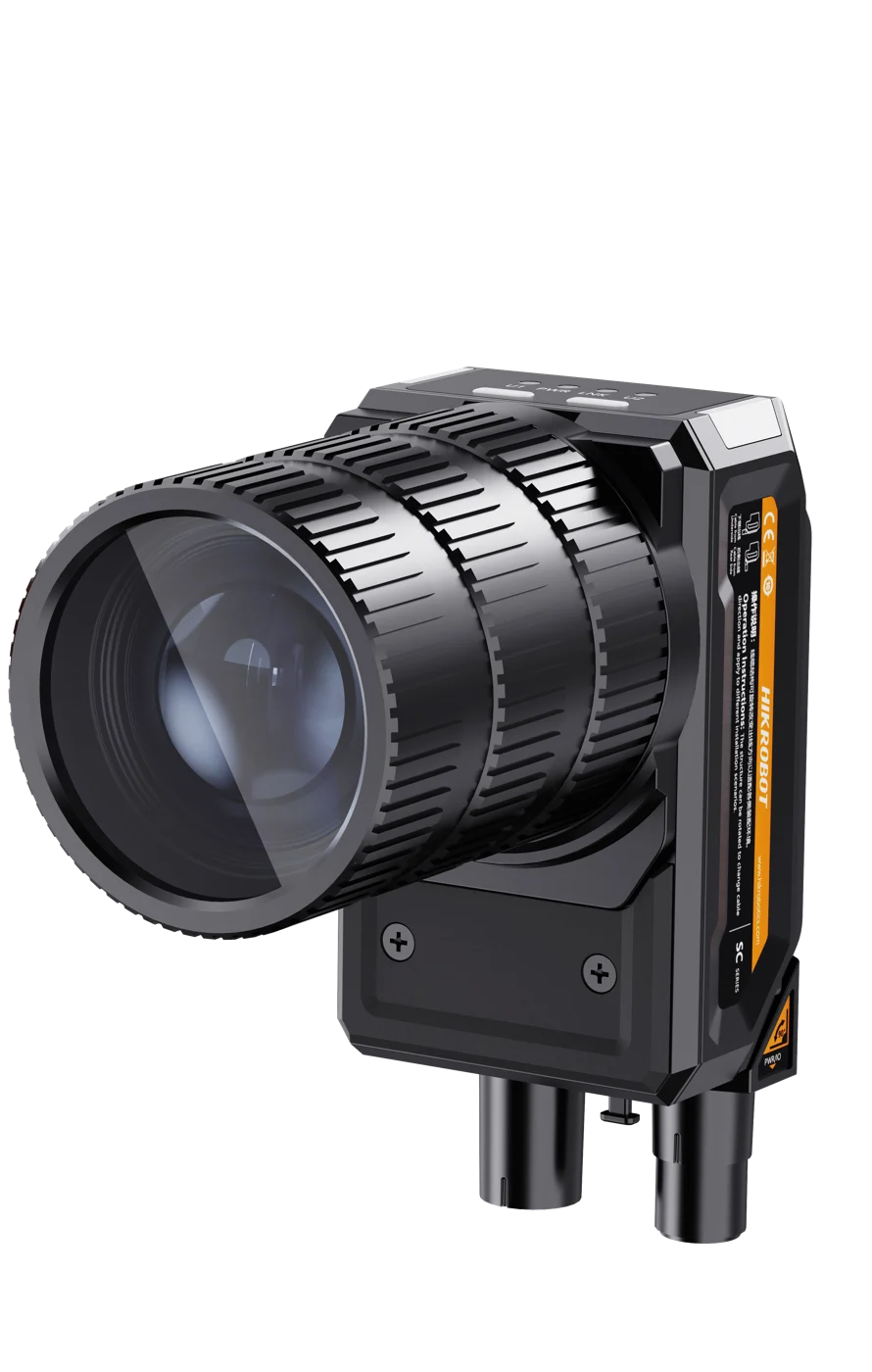

Hikrobot MV-SC5100XC-00C-NNN SC5000X series Smart Camera, 10MP, Color, C-Mount

Model MV-SC5100XC-00C-NNNHikrobot

Resolution4096 × 2816
SensorCMOS, rolling shutter
InterfaceGigabit Ethernet (1000 Mbit/s)
Speed10 fps
Lens mountC-mount
Mono / colourColor

$1,629.00

Ships in 2-3 weeks

0.62 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineer Browse Smart cameras & vision sensors

MV-SC5100XC-00C-NNN: resolution 4096 x 2816; sensor type CMOS, rolling shutter; sensor size 1/1.8"; max. frame rate 10 fps; mono/color Color.

Hikrobot MV-SC5100XC-00C-NNN SC5000X series Smart Camera, 10MP, Color, C-Mount. Adopts AI deep learning algorithm to achieve OCR, object recognition, defect detection, etc. Integrates VM functions, and supports more than 140 algorithms.

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CEKC

Specifications

General

Model	MV-SC5100XC-00C-NNN
Brand	Hikrobot
Function module	Vision Master Platform (include deep learning module)
Lens cap	Transparent lens cap
Indicator	Power indicator (PWR), network indicator (LNK), and user-defined indicator (U1/U2)

Sensor and imaging

Sensor type	CMOS, rolling shutter
Pixel size	2 μm × 2 μm
Sensor size	1/1.8"
Resolution	4096 × 2816
Max. frame rate	10 fps
Gain	0 dB to 37 dB
Exposure time	33 μs to 150 ms
Pixel format	Mono 8, RGB 8
Mono/color	Color

Interfaces and I/O

Communication protocol	TCP, UDP, Modbus, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc.
Data interface	Gigabit Ethernet (1000 Mbit/s)
Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input × 3 (Line 0/1/2), opto-isolated output × 3 (Line 3/4/5), RS-232 × 1

Light

Light source	Not included

Environment and compliance

Ingress protection	IP67 (under proper installation of waterproof lens cap)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Vibration resistance	Meets standard IEC 60068-2-6:2007.; Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)*
Shock resistance	Meets standard IEC 60068-2-27:2008.; Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)*
Certification	CE, KC

Computing

Memory	8 GB
Storage	64 GB

Electrical

Power supply	24 VDC
Power consumption	Avg. 10 W @ 24 VDC; Max. 14.4 W @ 24 VDC

Mechanical

Lens mount	C-mount
Dimension	Straight angle: 112.3 mm × 54 mm × 110 mm (4.4" × 2.1" × 4.3"); Right angle: 88.7 mm × 54 mm × 110 mm (3.5" × 2.1" × 4.3")
Weight	Approx. 370 g (0.8 lb.)
Shipping weight (estimated)	0.62 kg

Downloads

Features

Exposure time 33 µs to 150 ms
Frame rate up to 10 fps
Adopts AI deep learning algorithm to achieve OCR, object recognition, defect detection, etc.
Integrates VM functions, and supports more than 140 algorithms.
Adopts multiple I/O interfaces, such as multiple input/output signals.
Supports multiple communication protocols.
Supports indicators displaying device status for easy debugging and maintenance.
Supports ingress protection IP67.

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Engineering data

The MV-SC5100XC-00C-NNN at a glance

The numbers that set this model apart, taken from its own printed specifications.

Resolution4096 × 2816 px

Max. frame rate10 fps

Ingress protectionIP67

Power consumption10 Wavg. at 24 V DC; max. 14.4 W

ShutterRolling

Exposure range33 µs to 150 ms
