Vision controllers

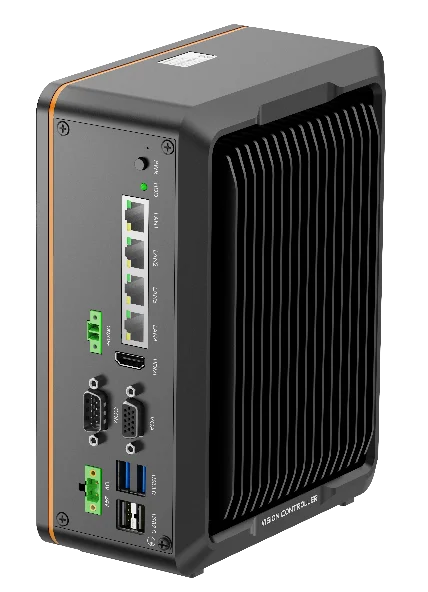

Hikrobot MV-VCB2103-128G40-NN VCB2100 vision controller, N97, 8GB+128G SSD, Basic version, PoE supported, No I/O, light and other functions
Model MV-VCB2103-128G40-NNHikrobot
- ProcessorIntel® Processor N97
- Memory8GB
- Storage128G SSD
- GPUIntel® UHD Graphics
- OSWindows 10 64-bit, Not activated
$2,079.00
Ships in 2-3 weeks
2.9 kg shipping weight
Not available in the United States. Available for delivery to other countries.
MV-VCB2103-128G40-NN: CPU Intel® Processor N97; memory 8 GB; storage 128G SSD; GPU Intel® UHD Graphics; network interface 4 x Gigabit Ethernet ports, PoE supported.
Hikrobot MV-VCB2103-128G40-NN VCB2100 vision controller, N97, 8GB+128G SSD, Basic version, PoE supported, No I/O, light and other functions. New Intel Alder Lake-N platform processor for powerful computing performance 4 GigE ports for fast, stable image transmission
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Certifications (as printed)CEKC
Specifications
General
| Model | MV-VCB2103-128G40-NN |
|---|---|
| Brand | Hikrobot |
Interfaces and I/O
| Video output | HDMI interface × 1, VGA interface × 1; Supports independent display output at the same time; Max. resolution 1920 × 1080 @ 60 Hz |
|---|---|
| Digital I/O | Not supported |
| USB Interface | 2× USB 2.0 ports; 2× USB 3.0 ports |
| Network interface | 4× Gigabit Ethernet ports, PoE supported |
| Serial Port | 1 × configurable RS-232 (configurable as RS-485/RS-422) |
Environment and compliance
| Temperature | Operating temp. 0 °C to 50 °C, Storage temp.: -30 °C to 70 °C |
|---|---|
| Humidity | 20% RH to 80% RH (no condensation) |
| Certification | CE, KC |
Computing
| CPU | Intel® Processor N97 |
|---|---|
| Memory | 8GB |
| Storage | 128G SSD |
| GPU | Intel® UHD Graphics |
| Operating system | Windows 10 64-bit, Not activated |
Electrical
| Power supply | 24 VDC |
|---|---|
| Power consumption | 71 W |
Mechanical
| Dimension | 160.59 mm × 205.6 mm × 86 mm |
|---|---|
| Weight | Approx. 2 kg (4.4 lb.) |
| Shipping weight (estimated) | 2.90 kg |
Engineering data
The MV-VCB2103-128G40-NN at a glance
The numbers that set this model apart, taken from its own printed specifications.
CPUIntel N97
Memory8 GB
GPUIntel UHD Graphics
Network4 × Gigabit Ethernet ports
Power supply24 V DC
Power consumption71 W
Other models in the VC2000 series Vision Controller series
See all 27 models| Model | Processor | Memory | Storage | Price | Availability | Link |
|---|---|---|---|---|---|---|
| MV-VCB2103-128G40-NNThis model | Intel® Processor N97 | 8GB | 128G SSD | $2,079.00 | Ships in 2-3 weeks | |
| MV-VC2143-128G40-1T | Intel® Processor N97 | 8 GB | 128 GB SSD + 1 TB HDD | $1,119.00 | Ships in 2-3 weeks | View |
| MV-VC2143-128G40-NN | Intel® Processor N97 | 8 GB | 128 GB SSD | $1,119.00 | Ships in 2-3 weeks | View |
| MV-VC2000-128G50-NN-mini | Intel® Celeron J6412 | 8 GB | 128G SSD | $1,119.00 | Ships in 2-3 weeks | View |
| MV-VC2100-128G40-NN | Intel® Processor N97 | 8GB | 128G SSD | $1,119.00 | Ships in 2-3 weeks | View |
| MV-VC2100-128G40-1T | Intel® Processor N97 | 8GB | 128G SSD + 1T HDD | $1,119.00 | Ships in 2-3 weeks | View |
| MV-VC2140-128G46-NN | Intel® Processor N97 | 8GB | 128G SSD | $1,119.00 | Ships in 2-3 weeks | View |
| MV-VC2140-128G46-1T | Intel® Processor N97 | 8GB | 128 GB SSD + 1 TB HDD | $1,119.00 | Ships in 2-3 weeks | View |
| MV-VC2103-128G40-1T | Intel® Processor N97 | 8GB | 128G SSD + 1T HDD | $1,119.00 | Ships in 2-3 weeks | View |
| MV-VC2103-128G40-NN | Intel® Processor N97 | 8GB | 128G SSD | $1,119.00 | Ships in 2-3 weeks | View |
| MV-VC2143-128G46-NN | Intel® Processor N97 | 8GB | 128G SSD | $1,119.00 | Ships in 2-3 weeks | View |
| MV-VC2143-128G46-1T | Intel® Processor N97 | 8GB | 128 GB SSD + 1 TB HDD | $1,119.00 | Ships in 2-3 weeks | View |
| MV-VC2101-128G40-NN | Intel® Processor N97 | 16GB | 128G SSD | $1,119.00 | Ships in 2-3 weeks | View |
| MV-VC2141-128G40-NN | Intel® Processor N97 | 16GB | 128G SSD | $1,119.00 | Ships in 2-3 weeks | View |
| MV-VC2141-256G40-NN | Intel® Processor N97 | 16GB | 256G SSD | $1,119.00 | Ships in 2-3 weeks | View |
| MV-VC2140-128G44-1T | Intel® Processor N97 | 8GB | 128 GB SSD + 1 TB HDD | $1,119.00 | Ships in 2-3 weeks | View |
| MV-VC2140-128G44-NN | Intel® Processor N97 | 8GB | 128G SSD | $1,119.00 | Ships in 2-3 weeks | View |
| MV-VCB2100-128G40-NN | Intel® Processor N97 | 8GB | 128G SSD | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCB2100-128G40-1T | Intel® Processor N97 | 8GB | 128 GB SSD + 1 TB HDD | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCB2140-128G40-1T | Intel® Processor N97 | 8GB | 128 GB SSD + 1 TB HDD | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCB2140-128G40-NN | Intel® Processor N97 | 8GB | 128G SSD | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCB2103-128G40-1T | Intel® Processor N97 | 8GB | 128 GB SSD + 1 TB HDD | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCB2143-128G40-1T | Intel® Processor N97 | 8GB | 128 GB SSD + 1 TB HDD | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCB2143-128G40-NN | Intel® Processor N97 | 8GB | 128G SSD | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCB2240-128G46-NN | Intel® Processor N97 | 8GB | 128G SSD | $2,079.00 | Ships in 2-3 weeks | View |
