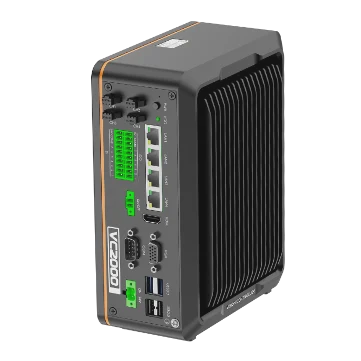

Hikrobot MV-VC2140-128G44-1T VC2100 vision controller, N97, 8GB+128G SSD+ 1THDD, Incl. light I/O, Supports 4200 license key
  • Hikrobot MV-VC2140-128G44-1T VC2100 vision controller, N97, 8GB+128G SSD+ 1THDD, Incl. light I/O, Supports 4200 license key
  • MV-VC2140-128G44-1T dimensions (mm)

Vision controllers

Hikrobot MV-VC2140-128G44-1T VC2100 vision controller, N97, 8GB+128G SSD+ 1THDD, Incl. light I/O, Supports 4200 license key

Model MV-VC2140-128G44-1THikrobot

  • ProcessorIntel® Processor N97
  • Memory8GB
  • Storage128 GB SSD + 1 TB HDD
  • NetworkGigE interface × 4
  • GPUIntel® UHD Graphics
$1,119.00

Ships in 2-3 weeks

2.9 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Vision controllers

MV-VC2140-128G44-1T: CPU Intel® Processor N97, memory 8 GB, storage 128 GB SSD + 1 TB HDD, GPU Intel® UHD Graphics, network interface GigE interface x 4.

Hikrobot MV-VC2140-128G44-1T VC2100 vision controller, N97, 8GB+128G SSD+ 1THDD, Incl. light I/O, Supports 4200 license key. New Intel Alder Lake-N platform processor for powerful computing performance GPIO support

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CEKC

Specifications

General

ModelMV-VC2140-128G44-1T
BrandHikrobot

Interfaces and I/O

Video outputHDMI interface × 1, VGA interface × 1; Supports independent display output at the same time; Max. resolution 1920 × 1080 @ 60 Hz
Digital I/OOpto-isolated input × 8; Opto-isolated output × 8
Light interfaceLight interface with 24 VDC constant voltage × 4; (Brightness is adjustable. Max. current 3 A for single light interface, and total max. power consumption 80 W. Supports light mode switching between strobe and solid via external control)
Network interfaceGigE interface × 4
USB Interface2× USB 2.0 ports; 2× USB 3.0 ports
Serial Port1× RS-232, switchable to RS-485/RS-422

Environment and compliance

TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 80% RH (no condensation)
CertificationCE, KC

Computing

CPUIntel® Processor N97
Memory8GB
Storage128 GB SSD + 1 TB HDD
GPUIntel® UHD Graphics
Operating systemUnactivated 64-bit Windows 10 LTSC 21H2
Encryption methodIncludes VM4200 license key

Electrical

Power supply24 VDC
Power consumptionTyp. 51 W (without light source)

Mechanical

Dimension165 mm × 205.6 mm × 86 mm
WeightApprox. 2 kg (4.4 lb.)
Shipping weight (estimated)2.90 kg

Engineering data

The MV-VC2140-128G44-1T at a glance

The numbers that set this model apart, taken from its own printed specifications.

CPUIntel N97
Memory8 GB
GPUIntel UHD Graphics
NetworkGigE interface × 4
Light outputs4 × 24 V DCconstant voltage
Digital I/O8 in / 8 outisolated

Other models in the VC2000 series Vision Controller series

See all 27 models
ModelProcessorMemoryStoragePriceAvailabilityLink
MV-VC2140-128G44-1TThis modelIntel® Processor N978GB128 GB SSD + 1 TB HDD$1,119.00 Ships in 2-3 weeks
MV-VC2143-128G40-1TIntel® Processor N978 GB128 GB SSD + 1 TB HDD$1,119.00 Ships in 2-3 weeks View
MV-VC2143-128G40-NNIntel® Processor N978 GB128 GB SSD$1,119.00 Ships in 2-3 weeks View
MV-VC2000-128G50-NN-miniIntel® Celeron J64128 GB128G SSD$1,119.00 Ships in 2-3 weeks View
MV-VC2100-128G40-NNIntel® Processor N978GB128G SSD$1,119.00 Ships in 2-3 weeks View
MV-VC2100-128G40-1TIntel® Processor N978GB128G SSD + 1T HDD$1,119.00 Ships in 2-3 weeks View
MV-VC2140-128G46-NNIntel® Processor N978GB128G SSD$1,119.00 Ships in 2-3 weeks View
MV-VC2140-128G46-1TIntel® Processor N978GB128 GB SSD + 1 TB HDD$1,119.00 Ships in 2-3 weeks View
MV-VC2103-128G40-1TIntel® Processor N978GB128G SSD + 1T HDD$1,119.00 Ships in 2-3 weeks View
MV-VC2103-128G40-NNIntel® Processor N978GB128G SSD$1,119.00 Ships in 2-3 weeks View
MV-VC2143-128G46-NNIntel® Processor N978GB128G SSD$1,119.00 Ships in 2-3 weeks View
MV-VC2143-128G46-1TIntel® Processor N978GB128 GB SSD + 1 TB HDD$1,119.00 Ships in 2-3 weeks View
MV-VC2101-128G40-NNIntel® Processor N9716GB128G SSD$1,119.00 Ships in 2-3 weeks View
MV-VC2141-128G40-NNIntel® Processor N9716GB128G SSD$1,119.00 Ships in 2-3 weeks View
MV-VC2141-256G40-NNIntel® Processor N9716GB256G SSD$1,119.00 Ships in 2-3 weeks View
MV-VC2140-128G44-NNIntel® Processor N978GB128G SSD$1,119.00 Ships in 2-3 weeks View
MV-VCB2100-128G40-NNIntel® Processor N978GB128G SSD$2,079.00 Ships in 2-3 weeks View
MV-VCB2100-128G40-1TIntel® Processor N978GB128 GB SSD + 1 TB HDD$2,079.00 Ships in 2-3 weeks View
MV-VCB2140-128G40-1TIntel® Processor N978GB128 GB SSD + 1 TB HDD$2,079.00 Ships in 2-3 weeks View
MV-VCB2140-128G40-NNIntel® Processor N978GB128G SSD$2,079.00 Ships in 2-3 weeks View
MV-VCB2103-128G40-1TIntel® Processor N978GB128 GB SSD + 1 TB HDD$2,079.00 Ships in 2-3 weeks View
MV-VCB2103-128G40-NNIntel® Processor N978GB128G SSD$2,079.00 Ships in 2-3 weeks View
MV-VCB2143-128G40-1TIntel® Processor N978GB128 GB SSD + 1 TB HDD$2,079.00 Ships in 2-3 weeks View
MV-VCB2143-128G40-NNIntel® Processor N978GB128G SSD$2,079.00 Ships in 2-3 weeks View
MV-VCB2240-128G46-NNIntel® Processor N978GB128G SSD$2,079.00 Ships in 2-3 weeks View
