Hikrobot MV-VC3303H-128G60 VC3000H Vision Controller, I3-8100, 8GB+128GSSD+2THDD, POE, PCI-E
  • Hikrobot MV-VC3303H-128G60 VC3000H Vision Controller, I3-8100, 8GB+128GSSD+2THDD, POE, PCI-E
  • MV-VC3303H-128G60 dimensions (mm)

Vision controllers

Hikrobot MV-VC3303H-128G60 VC3000H Vision Controller, I3-8100, 8GB+128GSSD+2THDD, POE, PCI-E

Model MV-VC3303H-128G60Hikrobot

  • ProcessorIntel® Core i3-8100
  • Memory8 GB
  • Storage128 GB SSD + 2 TB HDD
  • GPUIntel® HD Graphics 630
  • OSUnactivated 64-bit Windows 10
$2,419.00

Ships in 2-3 weeks

3.04 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Vision controllers

lumaspecvision.com/products/lumaspec-mv-vc3303h-128g60

MV-VC3303H-128G60 is this vision controller with an Intel Core i3-8100 (8 GB RAM), not Celeron G6900, Celeron G7400, i3 and 9 more.

MV-VC3303H-128G60: CPU Intel® Core i3-8100, memory 8 GB, storage 128 GB SSD + 2 TB HDD, GPU Intel® HD Graphics 630.

Hikrobot MV-VC3303H-128G60 VC3000H Vision Controller, I3-8100, 8GB+128GSSD+2THDD, POE, PCI-E.

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy

Certifications (as printed)CEKC

Specifications

General

ModelMV-VC3303H-128G60
BrandHikrobot

Interfaces and I/O

Video outputHDMI interface × 1, VGA interface × 1; Supports independent display outputs at the same time; Max. resolution 1920 × 1080 @ 60 Hz
Digital I/OOpto-isolated input × 8; Opto-isolated output × 16 (supports NPN/PNP switching)
Network interfaceGigE interface × 6, including GigE interface with PoE × 4 between I/O interface and power supply interface*
USB InterfaceUSB 2.0 × 4; USB 3.0 × 4; Built-in USB 2.0 × 1
Serial PortRS-232 × 2, supports switching to RS-485 and RS-422
Light interface24 VDC constant voltage × 4; (Max. power consumption of single channel is 72 W, total max. power consumption 80 W.)
Extended interfacePCIe 3.0 ×16 ( × 1)

Environment and compliance

Temperature0 °C to 50 °C (32 °F to 122 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, KC

Computing

CPUIntel® Core i3-8100
Memory8 GB
Storage128 GB SSD + 2 TB HDD
GPUIntel® HD Graphics 630
Operating systemUnactivated 64-bit Windows 10

Electrical

Power supply24 VDC
Power consumptionTyp. 144 W

Mechanical

Dimension161.4 mm × 208.5 mm × 105.5 mm (6.4" × 8.2" × 4.2")
WeightApprox. 2.1 kg (4.6 lb.)
Shipping weight (estimated)3.04 kg

Engineering data

The MV-VC3303H-128G60 at a glance

CPUIntel Core i3-8100
GPUIntel HD Graphics 630
NetworkGigE interface × 6
Light outputs4 × 24 V DCconstant voltage

Compatible parts

Fits with this part

Checked against the PC's printed camera ports: GigE cameras on its LAN ports, USB3 cameras on its USB 3 ports, 10GigE cameras only on a printed 10 GbE port.

Build the full system with this part

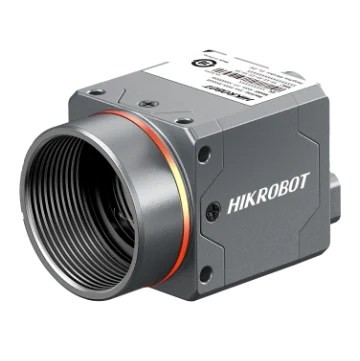

Cameras for this PC's ports

Plugs into one of its 4 USB 3 ports

Plugs into one of its 6 GigE ports

Plugs into one of its 4 USB 3 ports

Plugs into one of its 6 GigE ports

Plugs into one of its 4 USB 3 ports

Plugs into one of its 6 GigE ports

Before you buy

Questions about the MV-VC3303H-128G60

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

What can the MV-VC3303H-128G60 connect to?

The video output is HDMI interface × 1, VGA interface × 1; Supports independent display outputs at the same time; Max. resolution 1920 × 1080 @ 60 Hz. The digital I/O is Opto-isolated input × 8; Opto-isolated output × 16 (supports NPN/PNP switching).

Can the MV-VC3303H-128G60 drive lights directly?

Yes - the light interface is 24 VDC constant voltage × 4; (Max. power consumption of single channel is 72 W, total max. power consumption 80 W.).

What comes installed in the MV-VC3303H-128G60?

The operating system is 64-bit Windows 10 (not activated).

What power supply does the MV-VC3303H-128G60 need?

It runs on 24 VDC. The power consumption is Typ. 144 W.

What temperature range is the MV-VC3303H-128G60 rated for?

Its rated temperature range is 0 °C to 50 °C (32 °F to 122 °F).

Other models in the VC3000 series Vision Controller series

See all 113 models in the series

How this model compares

  • Compared with MV-VC3503H-128G60: CPU Intel® Core i3-8100 here, Intel® Core i5-8500 there.
ModelProcessorMemoryStoragePower consumptionPriceAvailabilityLink
MV-VC3301H-128G60Intel® Core i3-81008 GB128 GB SSDTyp. 95 W$2,419.00 Ships in 2-3 weeks View
MV-VC3302H-128G60Intel® Core i3-81008 GB128 GB SSD + 2 TB HDDTyp. 95 W$2,419.00 Ships in 2-3 weeks View
MV-VC3303H-128G60This modelIntel® Core i3-81008 GB128 GB SSD + 2 TB HDDTyp. 144 W$2,419.00 Ships in 2-3 weeks
MV-VC3304H-128G60Intel® Core i3-810016 GB128 GB SSD + 2 TB HDDTyp. 95 W$2,419.00 Ships in 2-3 weeks View
MV-VC3502H-128G60Intel® Core i5-85008 GB128 GB SSD + 2 TB HDDTyp. 95 W$3,709.00 Quote Ships in 2-3 weeks View
MV-VC3503H-128G60Intel® Core i5-85008 GB128 GB SSD + 2 TB HDDTyp. 144 W$3,709.00 Quote Ships in 2-3 weeks View
MV-VC3702H-128G60Intel® Core i7-87008 GB128 GB SSD + 2 TB HDDTyp. 95 W$4,069.00 Quote Ships in 2-3 weeks View
MV-VC3703H-128G60Intel® Core i7-87008 GB128 GB SSD + 2 TB HDDTyp. 144 W$4,069.00 Quote Ships in 2-3 weeks View
MV-VC3704H-128G60Intel® Core i7-870016 GB128 GB SSD + 2 TB HDDTyp. 95 W$4,069.00 Quote Ships in 2-3 weeks View
