Hikrobot MV-VC3201X-128G66 VC3000X vision controller, G7400, 8GB+128G SSD, No PoE, PCIe expansion supported, Incl. VM6200Pro license
  • Hikrobot MV-VC3201X-128G66 VC3000X vision controller, G7400, 8GB+128G SSD, No PoE, PCIe expansion supported, Incl. VM6200Pro license

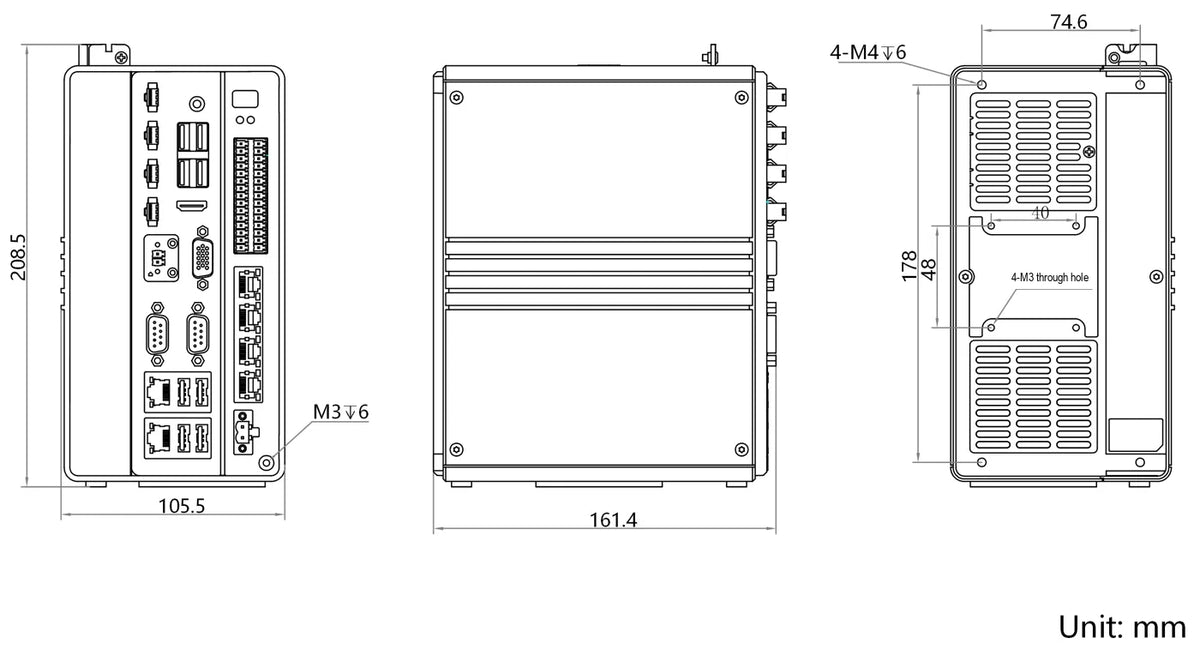

  • MV-VC3201X-128G66 dimensions (mm)

Vision controllers

Hikrobot MV-VC3201X-128G66 VC3000X vision controller, G7400, 8GB+128G SSD, No PoE, PCIe expansion supported, Incl. VM6200Pro license

Model MV-VC3201X-128G66Hikrobot

  • ProcessorIntel® Celeron® G7400
  • Memory8 GB
  • Storage128G SSD
  • Network6× Gigabit Ethernet ports
  • GPUIntel® HD Graphics 710
  • OSUnactivated Windows 10
$2,319.00

Ships in 2-3 weeks

3.04 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Vision controllers

MV-VC3201X-128G66: CPU Intel® Celeron® G7400, memory 8 GB, storage 128G SSD, GPU Intel® HD Graphics 710.

Hikrobot MV-VC3201X-128G66 VC3000X vision controller, G7400, 8GB+128G SSD, No PoE, PCIe expansion supported, Incl. VM6200Pro license. Desktop-class Intel Gen 12 CPU for powerful computing performance Extensive expansion slots for common machine-vision image acquisition interfaces, with stable performance

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CEKC

Specifications

General

ModelMV-VC3201X-128G66
BrandHikrobot

Interfaces and I/O

Extended interface1× PCIe 3.0 x16 slot
Video output1× HDMI port, 1× VGA port; Simultaneous independent display output supported; HDMI: up to 1920 × 1080 @ 60Hz, VGA: up to 1920 × 1440 @ 60Hz
Digital I/O8 digital isolated inputs supported; 16 opto-isolated outputs supported (NPN/PNP switchable)
Network interface6× Gigabit Ethernet ports
USB Interface4× USB 2.0 ports; 4× USB 3.0 ports
Serial Port2× full-function RS-232, RS-485/RS-422 switchable
Light interface4-channel 24 V constant-voltage light drive, Max. power per channel: 72 W, Max. power (4 channels): 80 W

Environment and compliance

Temperature0 to 50 °C
Humidity20% RH to 95% RH (no condensation)
CertificationCE, KC

Computing

CPUIntel® Celeron® G7400
Memory8 GB
Storage128G SSD
GPUIntel® HD Graphics 710
Operating systemUnactivated Windows 10
Encryption methodVM6200Pro license

Electrical

Power supply24 VDC
Power consumption144 W

Mechanical

Dimension161.4 mm × 208.5 mm × 105.5 mm
WeightApprox. 2.1 kg
Shipping weight (estimated)3.04 kg

Engineering data

The MV-VC3201X-128G66 at a glance

The numbers that set this model apart, taken from its own printed specifications.

CPUIntel Celeron G7400
Memory8 GB
GPUIntel HD Graphics 710
Network6 × Gigabit Ethernet ports
Light outputs4 × 24 V DCconstant voltage; max. 72 W per channel
Digital I/O8 in / 16 outisolated

Other models in the VC3000 series Vision Controller series

See all 113 models
ModelProcessorMemoryStoragePriceAvailabilityLink
MV-VC3201X-128G66This modelIntel® Celeron® G74008 GB128G SSD$2,319.00 Ships in 2-3 weeks
MV-VC3301H-128G60Intel® Core i3-81008 GB128 GB SSD$2,319.00 Ships in 2-3 weeks View
MV-VC3302H-128G60Intel® Core i3-81008 GB128 GB SSD + 2 TB HDD$2,319.00 Ships in 2-3 weeks View
MV-VC3303H-128G60Intel® Core i3-81008 GB128 GB SSD + 2 TB HDD$2,319.00 Ships in 2-3 weeks View
MV-VC3304H-128G60Intel® Core i3-810016 GB128 GB SSD + 2 TB HDD$2,319.00 Ships in 2-3 weeks View
MV-VC3101H-128G66Intel® Celeron® G49008 GB128G SSD$2,319.00 Ships in 2-3 weeks View
MV-VC3102H-128G66Intel® Celeron® G49008 GB$2,319.00 Ships in 2-3 weeks View
MV-VC3201H-128G66Intel® Celeron® G54008 GB128G SSD$2,319.00 Ships in 2-3 weeks View
MV-VC3202H-128G66Intel® Celeron® G54008 GB$2,319.00 Ships in 2-3 weeks View
MV-VC3301H-128G66Intel® Core i3-81008 GB128G SSD$2,319.00 Ships in 2-3 weeks View
MV-VC3304H-128G66Intel® Core i3-81008 GB×2128 GB SSD + 2 TB HDD, 128 GB SSD$2,319.00 Ships in 2-3 weeks View
MV-VC3101X-128G66Intel® Celeron® G69008 GB128G SSD$2,319.00 Ships in 2-3 weeks View
MV-VC3102X-128G66Intel® Celeron® G69008 GB$2,319.00 Ships in 2-3 weeks View
MV-VC3202X-128G66Intel® Celeron® G74008 GB$2,319.00 Ships in 2-3 weeks View
MV-VC3301X-128G66Intel® Core i3-121008 GB128G SSD$2,319.00 Ships in 2-3 weeks View
MV-VC3304X-128G66Intel® Core i3-121008 GB×2128 GB SSD + 2 TB HDD$2,319.00 Ships in 2-3 weeks View
MV-VC3305H-128G60Intel® Core i3-81008 GB×2128G SSD$2,319.00 Ships in 2-3 weeks View
MV-VC3306H-128G60Intel® Core i3-81008 GB×2128 GB SSD + 2 TB HDD, 128 GB SSD$2,319.00 Ships in 2-3 weeks View
MV-VC3305X-128G60Intel® Core i3-121008 GB×2128G SSD$2,319.00 Ships in 2-3 weeks View
MV-VC3311X-128G60Intel® Core i3-121008 GB128G SSD$2,319.00 Ships in 2-3 weeks View
MV-VC3312X-128G60Intel® Core i3-121008 GB128 GB SSD + 2 TB HDD$2,319.00 Ships in 2-3 weeks View
MV-VC3313X-128G60Intel® Core i3-121008 GB128 GB SSD + 2 TB HDD$2,319.00 Ships in 2-3 weeks View
MV-VC3314X-128G60Intel® Core i3-121008 GB×2128 GB SSD + 2 TB HDD$2,319.00 Ships in 2-3 weeks View
MV-VC3315X-128G60Intel® Core i3-121008 GB×2128G SSD$2,319.00 Ships in 2-3 weeks View
MV-VC3501H-128G60Intel® Core i5-85008 GB128 GB SSD$3,209.00 Quote Ships in 2-3 weeks View
