Hikrobot MV-TL200 RGB-D stereo structured-light 3D camera
Model MV-TL200Hikrobot
- InterfaceGigabit Ethernet(1000Mbit/s)
- Speed1.5 fps
- TypeLogistics / volume
- Near field of view1350 mm × 1200 mm
$3,249.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 2-3 weeks
3.6 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-TL200 RGB-D stereo structured-light 3D camera. Built-in high-precision depth fusion algorithm with millimeter-level accuracy Extra-large field of view and depth of field for palletizing/depalletizing, pallet pattern recognition and large-item volume measurement
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-TL200 |
|---|---|
| Brand | Hikrobot |
| Clearance distance (CD) | 1200 mm |
| Measurement range (MR) | 1800 mm |
| Depth image detection accuracy | X, Y: 5 mm@1.2 m; 9 mm@2 m; 14 mm@3 m; Z: 1 mm@1.2 m; 2 mm@2 m; 3 mm@3m |
| Data type | Raw image (mono + color), Depth map, RGB-D image |
| Laser safety class | Class 3R |
Optics
| Near field of view | 1350 mm × 1200 mm |
|---|---|
| Far field of view | 3650 mm × 2750 mm |
Sensor and imaging
| Resolution | 3072 × 2048 @ RGB image; 1536 × 1024 @ depth map |
|---|---|
| Scan frame rate | 1.5 fps |
Interfaces and I/O
| Data interface | Gigabit Ethernet(1000Mbit/s) |
|---|---|
| Digital I/O | 12-pin M12 connector for power and I/O, 3 opto-isolated inputs (Line 0/3/6), 3 opto-isolated outputs (Line 1/4/7) |
| Client software | HiViewer |
Light
| Color image detection accuracy | X, Y: 3 mm@1.2 m; 4.6 mm@ 2m; 6.8 mm@ 3m |
|---|
Environment and compliance
| Ingress protection | IP65 |
|---|---|
| Temperature | Operating temperature: 0°C to 45°C, Storage temp.: -30 °C to 80 °C |
| Humidity | 20% RH to 85% RH (no condensation) |
| Certification | CE, RoHS |
Computing
| Operating system | Windows 7/10 32/64bits |
|---|
Electrical
| Power supply | 12~24 VDC |
|---|---|
| Power consumption | 7 W@24 VDC |
Mechanical

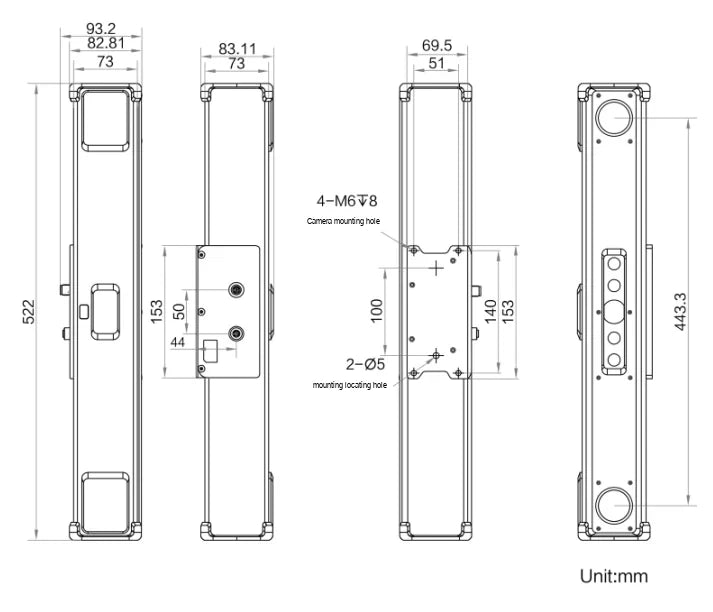

| Dimension | 522 mm × 82.8 mm × 83.1 mm |
|---|---|
| Weight | Approx. 2.5 kg (5.5 lb.) |
| Shipping weight (estimated) | 3.60 kg |
Other models in the Warehouse Logistics Stereo Camera series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| MV-DT1300S | 2 MP | On request | Ships in 2-3 weeks | View |

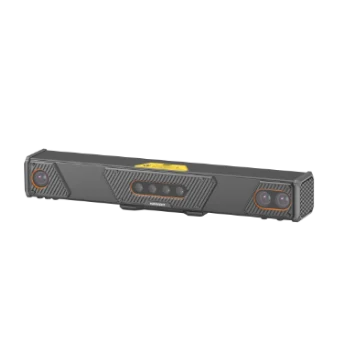

| MV-DB1300A | 6.3 MP | $3,229.00 Quote | Ships in 2-3 weeks | View |
