3D sensors

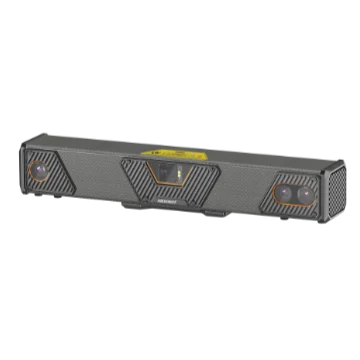

Hikrobot MV-DLS1300P Laser galvanometer stereo camera

Model MV-DLS1300PHikrobot

InterfaceGigabit Ethernet(1000Mbit/s)
TypeLogistics / volume
Near field of view1360 mm × 1200 mm@1500 mm
Far field of view3200 mm × 2800 mm@3500 mm

$16,579.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 2-3 weeks

2.2 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-DLS1300P Laser galvanometer stereo camera. Custom optical system for excellent image quality Highly uniform laser for complete, detailed point clouds

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-DLS1300P
Brand	Hikrobot
Clearance distance (CD)	1500 mm
Measurement range (MR)	2000 mm
Repeatability (Z-axis)*	0.3 mm@2500 mm1
VDI/VDE accuracy	0.4 mm@2500 mm2
Acquisition time	0.4 ~ 0.9 s
Data type	Raw image (mono + color), Depth map, RGB-D image
Laser safety class	Class 2

Optics

Near field of view	1360 mm × 1200 mm@1500 mm
Far field of view	3200 mm × 2800 mm@3500 mm
Typical field of view	2200 mm × 2000 mm@2500 mm

Sensor and imaging

Resolution	3200 × 2400 @ RGB image; 1440 × 1152 @ depth map

Interfaces and I/O

Data interface	Gigabit Ethernet(1000Mbit/s)
Digital I/O	12-pin M12 connector provides power supply and I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7)
Client software	RobotPilot, HiViewer

Light

Wavelength	638 nm

Environment and compliance

Ingress protection	IP65
Temperature	Operating temp.: -10 to 45 °C, Storage temp.: -30 to 80 °C
Humidity	20% to 85% RH (non-condensing)
Certification	RoHS

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11

Electrical

Image output latency	0.9 ~ 1.6 s
Power supply	24 VDC
Power consumption	16W@24 VDC

Mechanical

Dimension	456.1 mm × 79.8 mm × 98.5 mm
Weight	Approx. 1.5 kg
Shipping weight (estimated)	2.20 kg

Downloads

Features

Custom optical system for excellent image quality
Highly uniform laser for complete, detailed point clouds
Multi-core parallel processing architecture for high efficiency
Synchronized, aligned RGB and depth maps for fast, easy secondary development
High-strength carbon fiber design for high stability
Extra-wide field of view for long-distance applications
