Photoelectric sensors

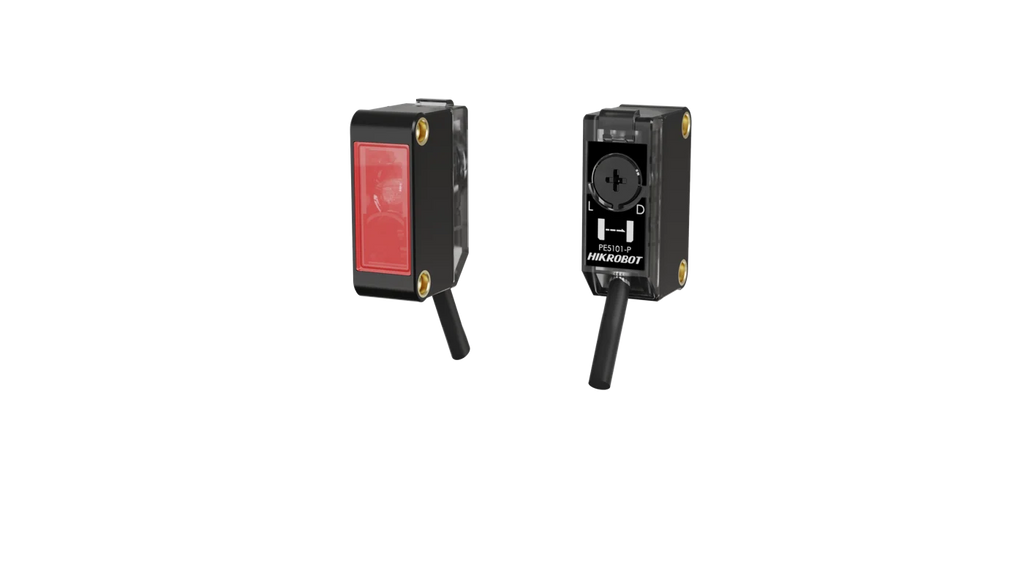

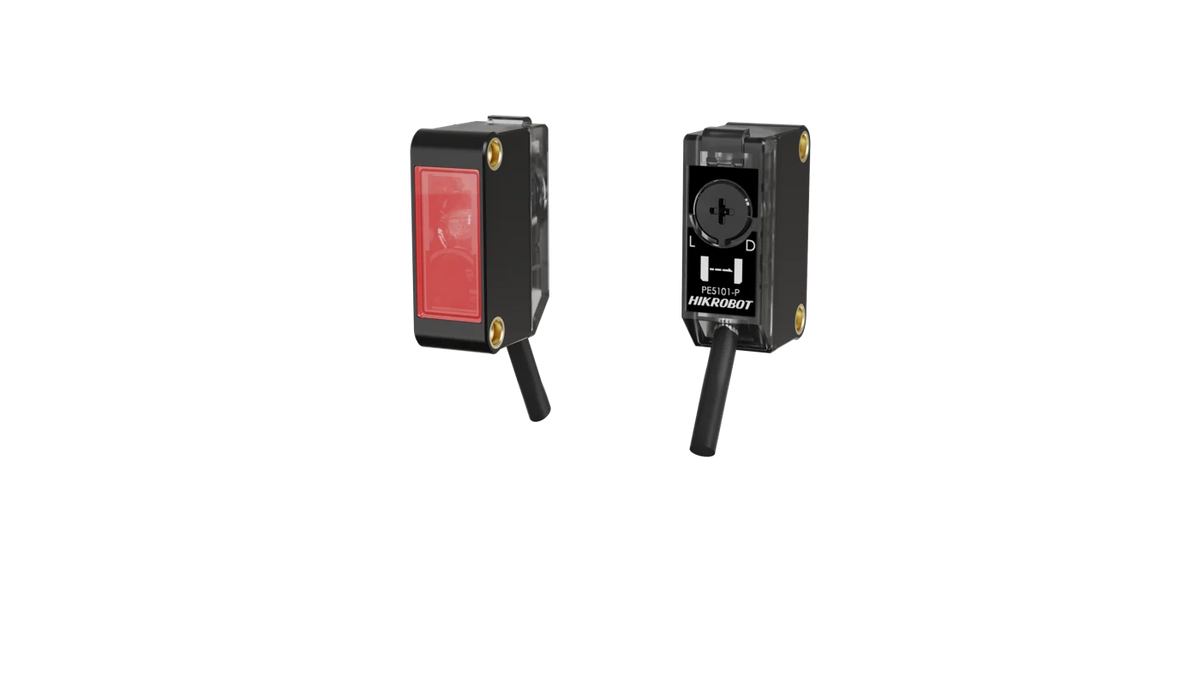

Hikrobot MV-PE5101 Through-beam sensor(15m, Red LED, NPN)
Model MV-PE5101Hikrobot
- Range15 m
- Light sourceRed LED 660 nm
- Response≤ 500 μs
- OutputNPN
$49.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 2-3 weeks
0.16 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-PE5101 Through-beam sensor(15m, Red LED, NPN). Provides a large red spot for ease of alignment. Remains unaffected if exposed to direct sunlight with strong anti-interference capability.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-PE5101 |
|---|---|
| Brand | Hikrobot |
| Detecting distance | 15 m |
| Sensing target | Opaque object above Φ15 mm |
| Response time | ≤ 500 μs |
| Repeatability (perpendicular to sensing axis) | ≤ 0.5 mm |
| Insulation resistance | 20 MΩ or more (between the terminal block for power supply and the housing) |
| Indicator | Operation indicator: orange (receiver); Stability indicator: green (receiver); Power indicator: orange (transmitter) |
| Connecting method | Cable lead-out (standard length: 2 m, 78.7") |
Light
| Light source | Red LED 660 nm |
|---|---|
| Ambient illumination | Sunlight: < 10000 lux; Incandescent lamp: < 3000 lux |
Environment and compliance
| Temperature | Working temperature: –25 °C to 55 °C (–13 °F to 131 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
|---|---|
| Humidity | 35% RH to 85% RH |
| Ingress protection | IP67 |
| Vibration resistance | 10 Hz to 500 Hz, double amplitude 1.5 mm (0.1"), 2 hours in each of the X, Y, and Z directions |
| Shock resistance | 500 m/s2, 3 times in each of the X, Y, and Z directions |
| Certification | CE, RoHS |
Electrical
| Output | NPN-NO/NC (supports light-on/dark-on switch) |
|---|---|
| Supply voltage | 12 VDC to 24 VDC ± 10%, including Ripple (P-P) 10% or less |
| Residual voltage | ≤ 2 VDC |
| Operating current | ≤ 20 mA |
| Max. sink/source current | ≤ 100 mA |
| Circuit protection | Reverse polarity protection, overcurrent protection, and overvoltage protection |
| Withstand voltage | 1000 VAC, 1 min (between the terminal block for power supply and the housing) |
Mechanical
| Dimension | 20 mm × 12 mm × 31.6 mm (0.8" × 0.5" × 1.2") |
|---|---|
| Weight | Transmitter: approx. 45 g (0.1 lb.) (including cable); Receiver: approx. 45 g (0.1 lb.) (including cable) |
| Material | Housing: polycarbonate; Lens: acrylic |
| Shipping weight (estimated) | 0.16 kg |
