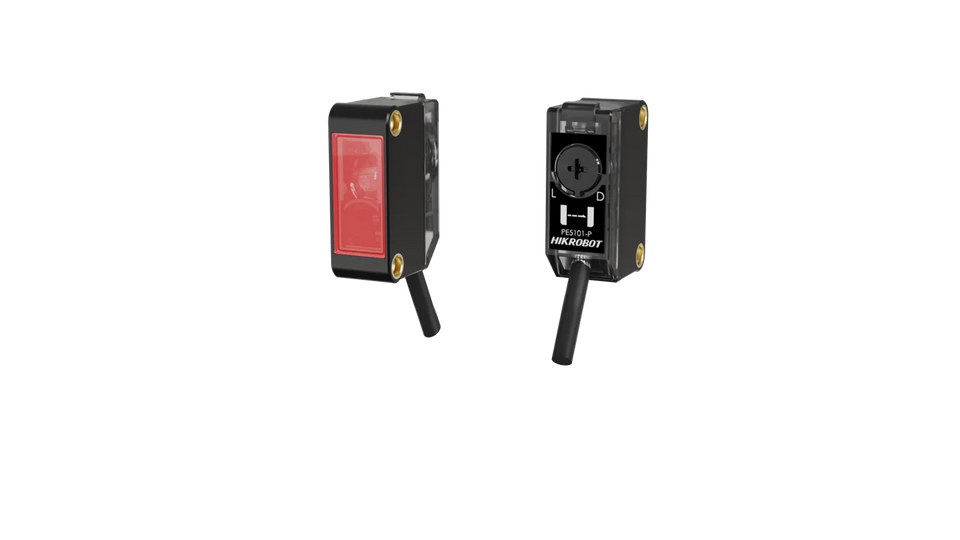

Built-in amplifier photoelectric sensor

Photoelectric sensors

Built-in amplifier photoelectric sensor

19 models
from $39.00
Series HIK-BUILT-IN-AMPLIFIER

The Built-in amplifier photoelectric sensor is a range of 19 photoelectric sensors from Hikrobot, from $39.00. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 19 models Series datasheet (PDF)

The series at a glance

Output: NPN, PNP
Light source: Infrared LED, Infrared laser, Red LED
Sensing range: Up to 100 mm, 100 mm - 1 m, 1-5 m, 5-20 m, Over 20 m
Type: Diffuse-reflective, Retro-reflective, Through-beam, Time-of-flight

Features

Provides a large red spot for ease of alignment.
Remains unaffected if exposed to direct sunlight with strong anti-interference capability.
Requires no adjustment with ease of use.
Provides a red spot for ease of alignment.
Supports stable detection of transparent, highly reflective, and tilted objects.
Easy to use.
Provides a large infrared spot for ease of alignment.
Supports sensitivity adjustment.

All 19 models in the Built-in amplifier photoelectric sensor

						Link
MV-PE5101-P	15 m	Red LED 660 nm	≤ 20 mA	≤ 500 μs	$39.00quote	View
MV-PE5801-P	5 mm to 50 mm	Red LED 650 nm	≤ 20 mA	≤ 500 μs	$39.00quote	View
MV-PE5101	15 m	Red LED 660 nm	≤ 20 mA	≤ 500 μs	$49.00quote	View
MV-PE5112	30 m	Infrared LED 850 nm	≤ 20 mA	≤ 500 μs	$49.00quote	View
MV-PE5112-P	30 m	Infrared LED 850 nm	≤ 20 mA	≤ 500 μs	$49.00quote	View
MV-PE5301	0.1 m to 4 m	Red LED 650 nm	≤ 20 mA	≤ 500 μs	$49.00quote	View
MV-PE5313	0.1 m to 1 m	Infrared LED 850 nm	≤ 20 mA	≤ 500 μs	$49.00quote	View
MV-PE5313-P	0.1 m to 1 m	Infrared LED 850 nm	≤ 20 mA	≤ 500 μs	$49.00quote	View
MV-PE5501	5 mm to 100 mm	Red LED 650 nm	≤ 20 mA	≤ 500 μs	$49.00quote	View
MV-PE5502	10 mm to 350 mm	Red LED 660 nm	≤ 20 mA	≤ 500 μs	$49.00quote	View
MV-PE5502-P	10 mm to 350 mm	Red LED 660 nm	≤ 20 mA	≤ 500 μs	$49.00quote	View
MV-PE5602	300 mm	Red LED 660 nm	≤ 20 mA	≤ 500 μs	$49.00quote	View
MV-PE5602-P	300 mm	Red LED 660 nm	≤ 20 mA	≤ 500 μs	$49.00quote	View
MV-PE5603	1000 mm	Red LED 660 nm	≤ 20 mA	≤ 500 μs	$49.00quote	View
MV-PE5603-P	1000 mm	Red LED 660 nm	≤ 20 mA	≤ 500 μs	$49.00quote	View
MV-PE5715	50 mm to 5000 mm	Infrared laser 905 nm	≤ 35 mA @ 12V, ≤ 20 mA @ 24V	500 μs/10 ms switch	$49.00quote	View
MV-PE5801	5 mm to 50 mm	Red LED 650 nm	≤ 20 mA	≤ 500 μs	$49.00quote	View
MV-PE5301-P	0.1 m to 4 m	Red LED 650 nm	≤ 20 mA	≤ 500 μs	$59.00quote	View
MV-PE5501-P	5 mm to 100 mm	Red LED 650 nm	≤ 20 mA	≤ 500 μs	$59.00quote	View
