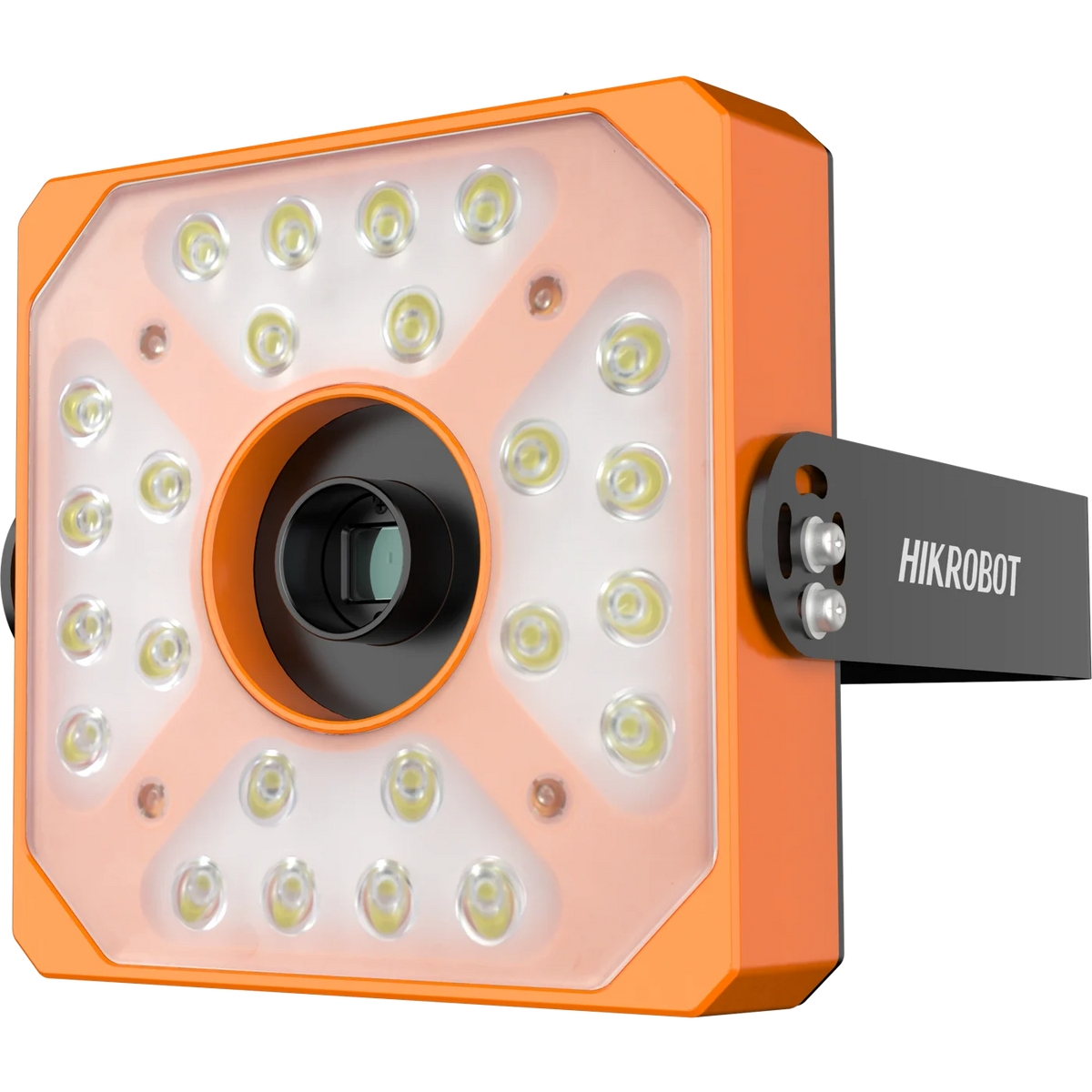

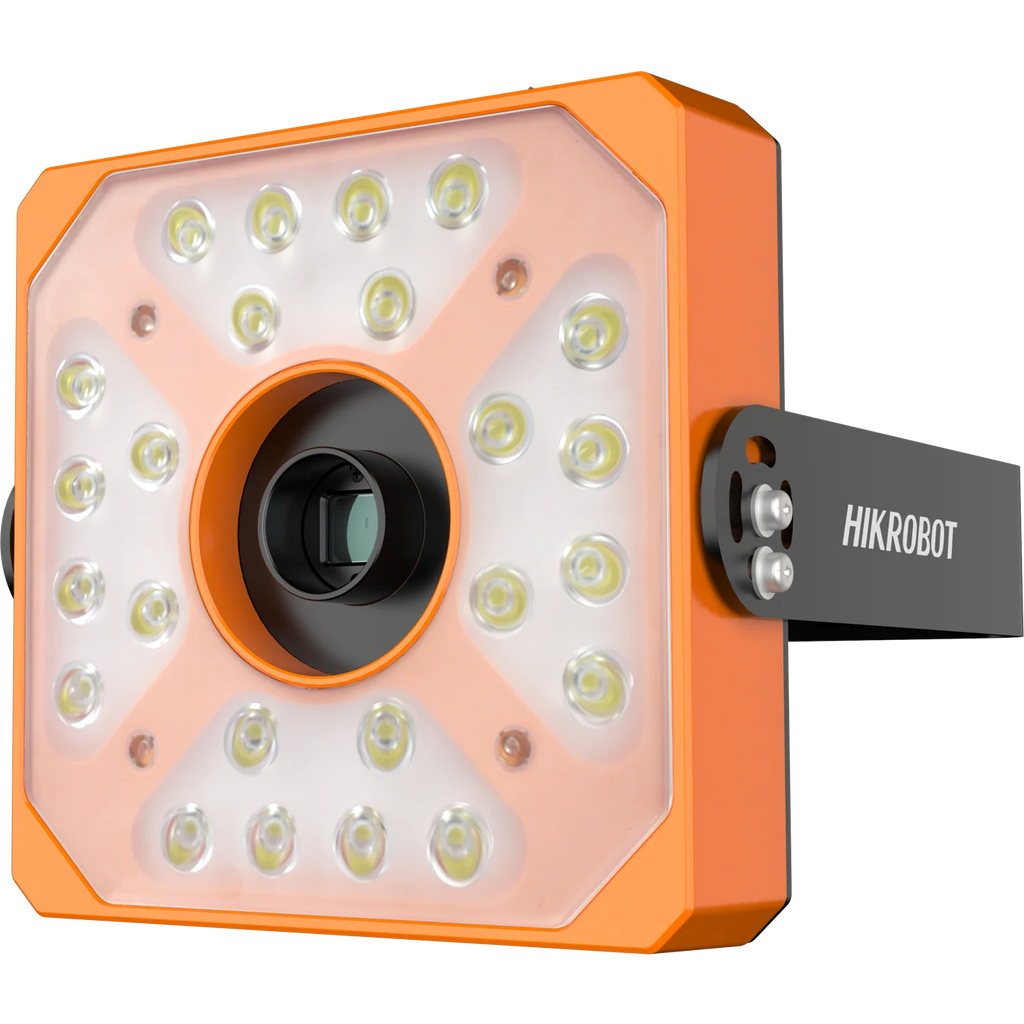

Hikrobot MV-PD010003-06M-12C 6MP Logistic Code Reading Set

Model MV-PD010003-06M-12CHikrobot

Resolution3072 × 2048
InterfaceGigabit Ethernet
Speed17 fps @3072 × 2048
Mono / colourMono
Focal length12 mm

$609.00

Ships in 2-3 weeks

1.49 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-PD010003-06M-12C 6MP Logistic Code Reading Set. Adopts code recognition technology. Supports acquisition and integration of data and images.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-PD010003-06M-12C
Brand	Hikrobot
Operation system	32/64-bit Windows XP/7/10

Optics

Focal length	12 mm
Best working distance	900 mm
Field of view (range)	550 mm × 340 mm @10 mil
Depth of field	500 mm
Aperture	F2.8 to F16

Sensor and imaging

Symbologies	1D codes: Code 39, Code 93, Code 128, Codabar, EAN; 2D codes: QR Code, Data Matrix
Resolution	3072 × 2048
Max. frame rate	17 fps @3072 × 2048
Mono/color	Mono
Pixel format	Mono 8

Interfaces and I/O

Data interface	Gigabit Ethernet
Digital I/O	6-pin connecting terminal provides power and I/O, including opto-isolated input × 1 (Line 0), and bi-directional non-isolated I/O × 1 (Line 2)
Client software	MVS, Code Platform

Light

Center illuminance	5800 lux@1000 mm
Uniformity	0.53
Luminous flux	2500 lm
Light source wavelength	420 nm to 730 nm
Color temperature	5700 K

Environment and compliance

Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity	20% to 80% RH, non-condensing
Certification	CE, KC

Computing

Operating system	32/64-bit Windows XP/7/10

Electrical

Power supply	24 VDC
Max. power consumption	20 W
Power consumption	20 W

Mechanical

Dimension (without lens)	164.2 mm × 149.6 mm × 159.1 mm (6.5" × 5.9" × 6.3")
Weight (without lens)	Approx. 990 g (2.2 lb.)
Shipping weight (estimated)	1.49 kg

Downloads

Features

Adopts code recognition technology.
Supports acquisition and integration of data and images.
Supports local data storage, uploading, and tracking.
Adopts integrated structure to facilitate installation.
Centralized light with high luminescence efficiency.
Long service life time, and stable performance.
Provides real-time and effective data for logistics related enterprises.
