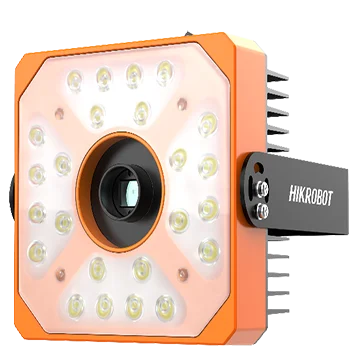

Hikrobot MV-IDS012M-16C-C 12MP Logistic Code Reader
Model MV-IDS012M-16C-CHikrobot
- Resolution3968 × 3000
- InterfaceGigabit Ethernet
- Speed20 fps
- Mono / colourMono
- Focal length16 mm (0.6")
$719.00
Ships in 2-3 weeks
1.49 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-IDS012M-16C-C 12MP Logistic Code Reader. Built-in code reading algorithm to read different types of one-dimensional and two-dimensional codes with good robustness. Integrates functions of image acquisition, data processing, and result output.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-IDS012M-16C-C |
|---|---|
| Brand | Hikrobot |
Optics
| Focal length | 16 mm (0.6") |
|---|---|
| Best working distance | 1870 mm (73.6") |
| Field of view (range) | 870 mm × 635 mm @10 mil |
| Depth of field | 700 mm (27.6") |
| Aperture | F2.4 to F16 |
Sensor and imaging
| Symbologies | 1-dimensional codes: Code 128, Code 39, Code 93, CodaBar, EAN 8, EAN 13, ITF 14, ITF 25, UPCA, and UPCE; 2-dimensional codes: QR Code, Data Matrix |
|---|---|
| Max. frame rate | 20 fps |
| Max. reading speed | 60 codes/sec |
| Resolution | 3968 × 3000 |
| Exposure time | 48 μs to 0.5 sec |
| Gain | 0 dB to 40 dB |
| Mono/color | Mono |
| Pixel format | Mono 8 |
Interfaces and I/O
| Data interface | Gigabit Ethernet |
|---|---|
| Digital I/O | 6-pin green terminal provides power and I/O, including opto-isolated input × 1 (LineIn 0), opto-isolated output × 1 (LineOut 3), and configurable non-isolated input/output × 1 (Line In 2/LineOut 4).; 3-pin green terminal provides RS-232 serial port. |
| Client software | IDMVS |
Light
| Center illuminance | 11000 lux @1000 mm |
|---|---|
| Uniformity | 0.56 |
| Luminous flux | 5200 lm |
| Light source wavelength | 420 nm to 730 nm |
| Color temperature | 6500 K |
Environment and compliance
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
|---|---|
| Humidity | 20% to 80% RH, non-condensing |
| Certification | CE |
Computing
| Operating system | 32/64-bit Windows XP/7/10 |
|---|
Electrical
| Power supply | 24 VDC |
|---|---|
| Max. power consumption | 53 W @24 VDC |
Mechanical
| Dimension (without lens) | 164.2 mm × 149.6 mm × 159.1 mm (6.5" × 5.9" × 6.3") |
|---|---|
| Weight (without lens) | Approx. 990 g (2.2 lb.) |
| Shipping weight (estimated) | 1.49 kg |
