Hikrobot MV-MFWO8500P/U Rugged industrial wired handheld code reader

Model MV-MFWO8500P/UHikrobot

Resolution1280 × 800
SensorCMOS
Speed50 fps
Pixel size3 µ m × 3 µm
Focal length6.7 mm

$239.00

Ships in 2-3 weeks

0.74 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-MFWO8500P/U Rugged industrial wired handheld code reader. In-house high-performance barcode algorithm efficiently reads 1D and 2D codes in industrial applications at standard distances Robust algorithm handles dirty, damaged and low-contrast codes

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-MFWO8500P/U
Brand	Hikrobot
Min. accuracy	3 mil
Detection angle	Tilt angle ±60°, Skew angle ±60°, Rotation angle 360°
Symbol contrast	20 %
Laser safety class	Laser 2
Repetition rate	50 HZ

Optics

Depth of field	Code 39 (5 mil): 30 mm ~ 200 mm; Code 128 (3 mil): 55 mm ~ 110 mm; Code 128 (20 mil): 56 mm ~ 660 mm; Data Matrix (10 mil): 20 mm ~ 220 mm; QR Code (10 mil): 20 mm ~ 220 mm; QR Code (20 mil): 10 mm ~ 450 mm
Field of view	Horizontal 31°, Vertical 20°
Focal length	6.7 mm

Sensor and imaging

Symbologies	1D code: Code 39, Code 93, Code 128, ITF 25, Coda Bar, EAN8, EAN13, ITF14, UPCA, UPCE, etc.; 2D code: QR Code, Data Matrix, MicroQR, Aztec; Stacked code: PDF417
Max. frame rate	50 fps
Sensor type	CMOS
Pixel size	3 µ m × 3 µm
Sensor size	1/4”
Resolution	1280 × 800
Aiming system	Cross laser aiming

Interfaces and I/O

Communication protocol	GigE: SmartSDK, TCP, FTP, Profinet, EthernetIP, Modbus, UDP, Serial; USB port: SmartSDK, USB (HID/CDC)
Data interface	Ethernet: Fast Ethernet (100 Mbit/s), RS-232, DC terminal; USB: USB 2.0, DC terminal
Client software	IDMVS

Light

Ambient illumination	0 ~ 100000 lux
Light source	Direct: white LED; Diffuse: red LED
Wavelength	650 nm
Beam divergence angle	14.5°

Environment and compliance

Ingress protection	IP65
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, KC

Electrical

Power supply	GigE: 12 to 24 VDC; USB port: USB 2.0: 5 VDC; DC terminal: 12 to 24 VDC
Max. power consumption	GigE: 6 W@24 VDC; USB port: USB 2.0: 4.6 W@5 VDC; DC terminal: 6W@24 VDC
Maximum power	1 mW

Mechanical

Lens mount	M5.8-Mount

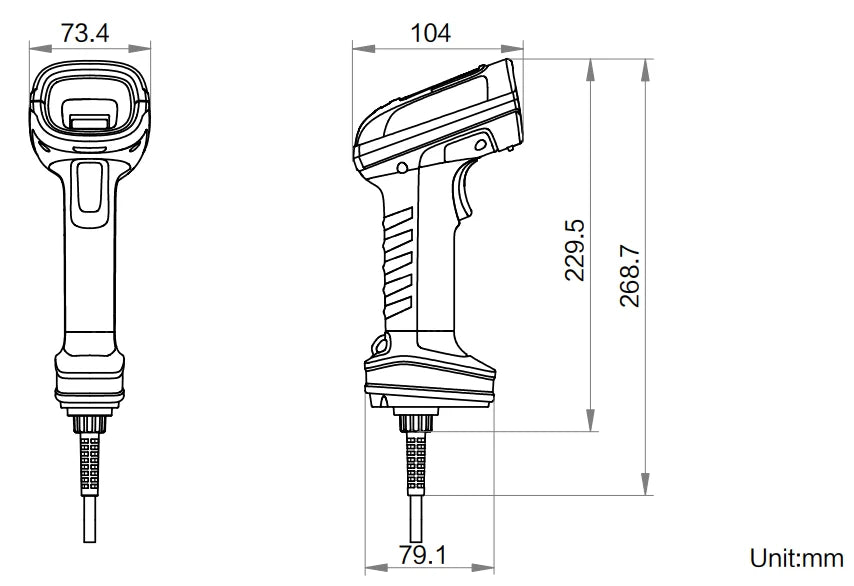

Dimension	73.4 mm × 104 mm × 229.5 mm
Weight	Approx. 460 g
Drop height	1.8 m
Pulse width	8 ms
Shipping weight (estimated)	0.74 kg

Downloads

Datasheet (PDF, Chinese)MV-MFWO8500P/U · 773 KB

Features

In-house high-performance barcode algorithm efficiently reads 1D and 2D codes in industrial applications at standard distances
Robust algorithm handles dirty, damaged and low-contrast codes
Continuous and batch reading modes greatly improve efficiency in multi-code scenarios
Supports TCP, Serial, FTP, Profinet, EthernetIP, Modbus, USB HID, USB CDC and other transmission protocols
Multi-light illumination system with direct and diffuse lighting for reflective surfaces
Detachable cable design for easy replacement
IP65 protection and 2.0 m drop resistance for harsh industrial environments

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer
