Handheld code readers

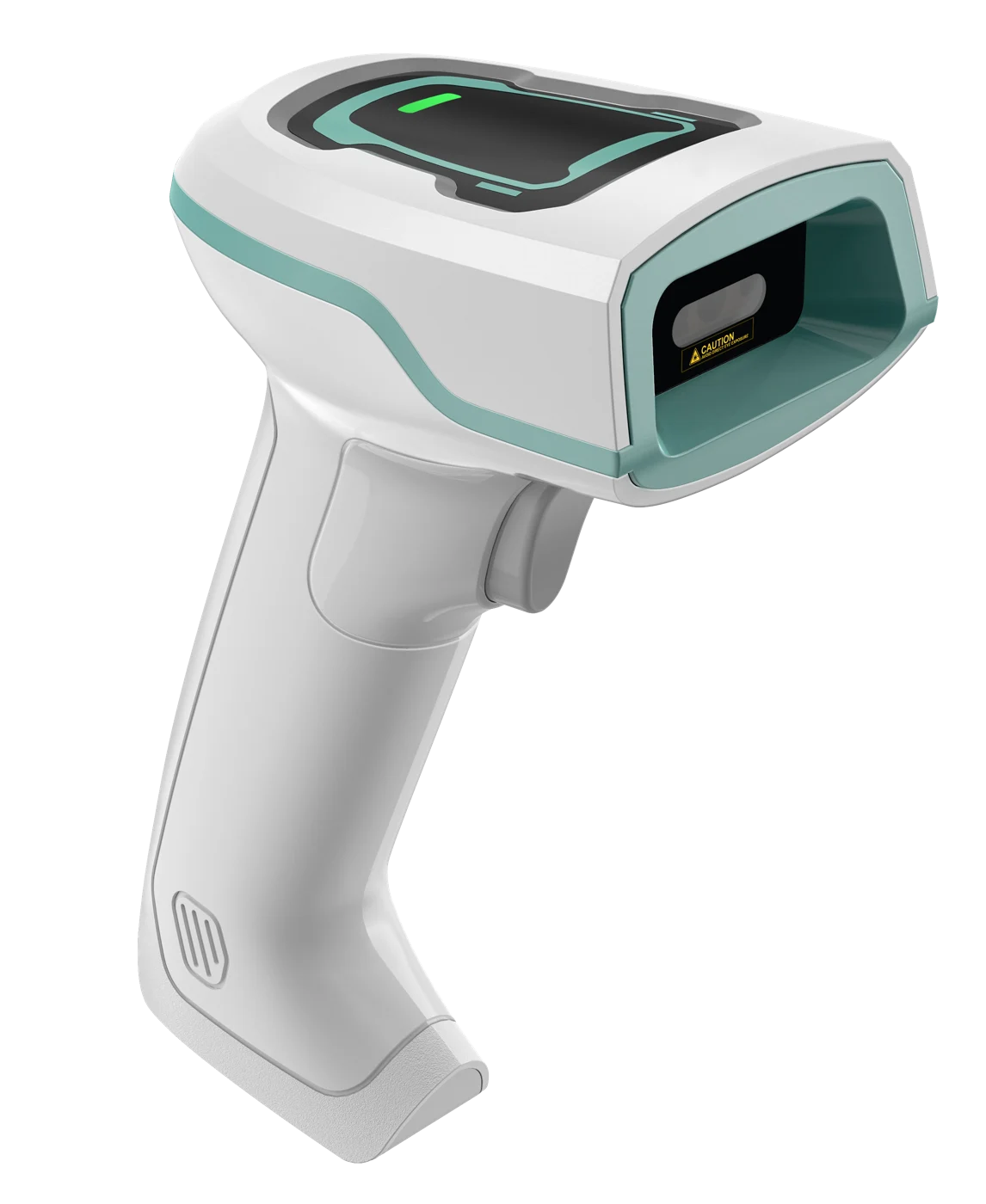

Hikrobot MV-IDH2000RF/H/13SR/05WN Medical RF wireless handheld code reader

Model MV-IDH2000RF/H/13SR/05WNHikrobot

Resolution1280 × 1024
SensorCMOS
InterfaceUSB 2.0 (Type B)
Focal length4.9 mm

$179.00

Ships in 2-3 weeks

0.32 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineer Browse Handheld code readers

lumaspecvision.com/products/lumaspec-mv-idh2000rf-h-13sr-05wn

This handheld reader has a USB 2.0 interface (4.9 mm focal length, IP42 ingress protection) (MV-IDH2000RF/H/13SR/05WN): it plugs straight into a PC's USB port, with no network setup. It also has a resolution of 1280 x 1024 and a field of view of 39° (H) x 29° (V).

It has a built-in white light and a laser cross that shows where it reads. At 66.5 x 94 x 169.5 mm and about 160 g, a small bracket holds it, and it adds little load to a moving axis. Rated -10 to 50 °C, it suits an indoor factory floor.

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Final sale Hikrobot products cannot be returned or exchanged; a defective or wrong item is covered by the warranty. Return policy

CertificationsCEKC

Specifications

General

Model	MV-IDH2000RF/H/13SR/05WN
Brand	Hikrobot
Min. accuracy	1D codes: 3 mil; 2D codes: 5 mil
Detection angle	Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Symbol contrast	20 %
Battery	2700mAh
Charging time	6 h
Endurance	12 h (one scan every, 2 s)
Prompt	LED indicator, buzzer, vibrator
Laser safety class	Laser 2

Optics

Depth of field	Code 128(3 mil):70 mm ~ 160 mm; Code 128(10 mil):30 mm ~ 440 mm; QR Code (10 mil):45 mm ~ 235 mm; QR Code (15 mil):20 mm ~ 360 mm; QR Code (20 mil):20 mm ~ 460 mm
Field of view	39° (H) × 29° (V)
Focal length	4.9 mm

Sensor and imaging

Symbologies	1D code: Code 39, Code 93, Code 128, GS1- Code128, Coda Bar, EAN8, EAN13, ISBN, ISSN, ITF14, ITF25, UPCA, UPCE; 2D code: QR Code, Data Matrix, MicroQR, Aztec; Stacked code: PDF417
Sensor type	CMOS
Resolution	1280 × 1024
Aiming system	Cross laser aiming

Interfaces and I/O

Communication mode	2.4G
Wireless range	80 m (open range)
Communication protocol	SmartSDK, USB, 2.4G
Data interface	USB 2.0 (Type B)
Client software	IDMVS
Data interface (smart base)	USB 2.0 (Type B), USB 2.0 (Type A)

Light

Ambient illumination	0 ~ 100000 lux
Light source	White LED
Laser wavelength	650 nm

Environment and compliance

Ingress protection	IP42
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F); Charging temperature: 0 °C to 40 °C (32 °F to 104 °F)
Humidity	5% RH to 95% RH (no condensation)
Certification	CE, KC
Temperature (smart base)	Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity (smart base)	5% RH to 95% RH (no condensation)

Electrical

Power supply	5 VDC
Current consumption	1.5 A (max.), 0.14 A (during standby)
Laser output power (max.)	1 mW
Power supply (smart base)	5 VDC
Current consumption (smart base)	1.5 A (max.), 0.01 A (during standby)

Mechanical

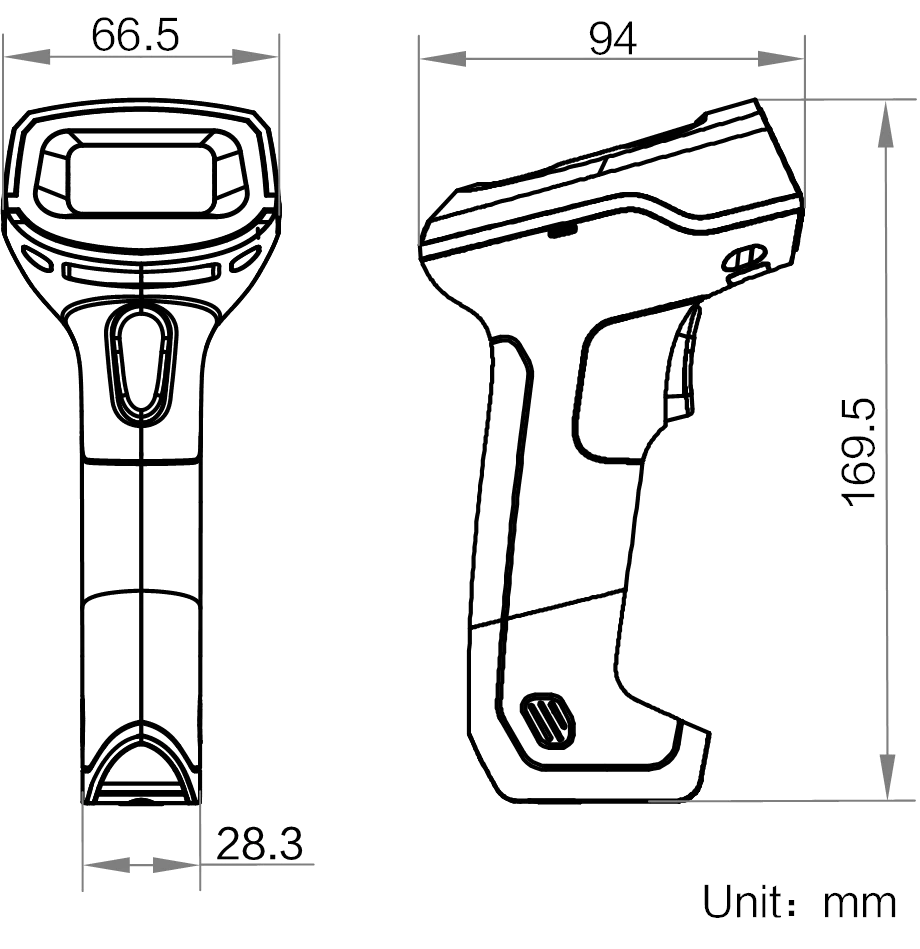

Dimension	66.5 mm × 94 mm × 169.5 mm
Weight	Approx. 160 g (0.4 lb.)
Drop height	1.8 m
Pulse width	8 ms
Dimension (smart base)	82.6 mm × 121.8 mm × 76.1 mm
Weight (smart base)	Approx. 120 g (0.3 lb.)
Shipping weight (estimated)	0.32 kg

Downloads

Features

This series is also made with USB 3.0 + USB 2.0
Medical-grade antibacterial, alcohol-resistant material
CMOS sensor
USB 2.0 interface (Type B)
In-house high-performance barcode algorithm efficiently reads difficult inkjet-printed codes in light industry, enterprise and retail
Robust algorithm handles dirty, damaged, laminated, under-inked and low-contrast codes
Continuous and batch reading modes greatly improve efficiency in multi-code scenarios
2.4G wireless communication with stable, reliable signal
2750 mAh battery for long standby time
Reads 1D codes down to 3 mil, 2D codes down to 5 mil

Complete the station

Configure a system Ask an engineer

Engineering data

The MV-IDH2000RF/H/13SR/05WN at a glance

Resolution1280 × 1024 px

Ingress protectionIP42

Weight160 gapprox.

Before you buy

Questions about the MV-IDH2000RF/H/13SR/05WN

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which codes does the MV-IDH2000RF/H/13SR/05WN read?

The symbologies are 1D code: Code 39, Code 93, Code 128, GS1- Code128, Coda Bar, EAN8, EAN13, ISBN, ISSN, ITF14, ITF25, UPCA, UPCE; 2D code: QR Code, Data Matrix, MicroQR, Aztec; Stacked code: PDF417.

How far does the MV-IDH2000RF/H/13SR/05WN read?

The depth of field is Code 128(3 mil):70 mm ~ 160 mm; Code 128(10 mil):30 mm ~ 440 mm; QR Code (10 mil):45 mm ~ 235 mm; QR Code (15 mil):20 mm ~ 360 mm; QR Code (20 mil):20 mm ~ 460 mm.

How does the MV-IDH2000RF/H/13SR/05WN connect?

The communication mode is 2.4G. The communication protocol is SmartSDK, USB, 2.4G.

What power supply does the MV-IDH2000RF/H/13SR/05WN need?

It runs on 5 VDC. The current consumption is 1.5 A (max.), 0.14 A (during standby).

What is the MV-IDH2000RF/H/13SR/05WN's IP rating?

It is rated IP42.

Learn

Guides for this part

Engineering guides picked for the MV-IDH2000RF/H/13SR/05WN: how to choose it, set it up and get a better image.

All guides

USB barcode scanner data capture in your applicationUSB barcode scanner data capture starts by identifying whether the reader supplies keyboard input, a virtual serial port or a documented device API. Barcode tool checkout system: plan a reliable workflowA barcode tool checkout system records each asset loan or return against an identified operator, an explicit action, and a timestamp. Barcode scanner robot communication without a PLCBarcode scanner robot communication without a PLC requires compatible electrical interfaces and a documented protocol supported by both devices.

Other models in the IDH2000 Series Handheld Code Reader series

See all 34 models in the series

How this model compares

Compared with MV-IDH2000RF/H/03SR/03WN: resolution 1280 x 1024 here, 640 x 480 there; field of view 39° (H) × 29° V here, 42° (H) × 32° V there.
Focal length 4.9 mm, the longest of 3 different focal lengths in the series (3.1 to 4.9 mm); next down 3.9 mm (MV-IDH2000/13SR/04WN/U).
