Fixed code readers

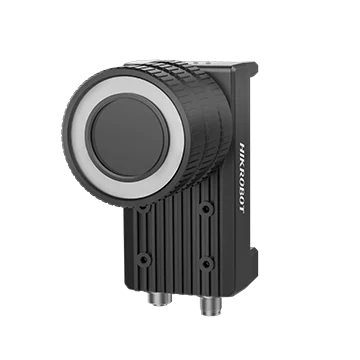

Hikrobot MV-ID6250PM-00C-NNG 25 MP logistics code reader

Model MV-ID6250PM-00C-NNGHikrobot

Resolution5120 × 5120
SensorCMOS, global shutter
InterfaceGigabit Ethernet(1000 Mbit/s)
Speed20 fps
Lens mountC-mount
Mono / colourMono

$5,689.00

List price

Ships in 2-3 weeks

1.15 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineer Browse Fixed code readers

MV-ID6250PM-00C-NNG: resolution 5120 x 5120; sensor type CMOS, global shutter; max. frame rate 20 fps; data interface Gigabit Ethernet(1000 Mbit/s).

Hikrobot MV-ID6250PM-00C-NNG 25 MP logistics code reader. 25 MP global-shutter ultra-high resolution covers an extra-large field of view, well suited to medium- and high-speed DWS applications Dedicated logistics deep-learning algorithm handles distorted, wrinkled, dirty and damaged barcodes

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-ID6250PM-00C-NNG
Brand	Hikrobot
Lens cap	Included
Compatibility	CE, RoHS

Sensor and imaging

Symbologies	1D code: Code 39, Code 128, Code 93, Code 11, ITF25, CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, Matrix 25, MSI, Industrial 2of5, China Post, etc.; Matrix 2D code: QR Code, Data Marix; Stacked 2D code: PDF417
Max. frame rate	20 fps
Max. reading speed	60 codes/sec
Sensor type	CMOS, global shutter
Pixel size	2.5 μm×2.5 μm
Sensor size	1”
Resolution	5120 × 5120
Exposure time	16 μs ~ 0.5 sec
Gain	Analog gain: up to 5×; Digital gain: -6 to 6 dB
Mono/color	Mono

Interfaces and I/O

Communication protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP
Data interface	Gigabit Ethernet(1000 Mbit/s)
Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1.
Client software	IDMVS

Light

Light source	Not included

Environment and compliance

Ingress protection	IP67 ( under proper installation of waterproof lens cap)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)

Electrical

Power supply	12 ~ 24 VDC
Max. power consumption	17 W @ 24 VDC

Mechanical

Lens mount	C-Mount
Dimension	126 mm × 66 mm × 113.2 mm
Weight	Approx. 750 g (1.7 lb.)
Shipping weight (estimated)	1.15 kg

Downloads

Datasheet (PDF, Chinese)MV-ID6250PM-00C-NNG · 803 KB

Features

25 MP global-shutter ultra-high resolution covers an extra-large field of view, well suited to medium- and high-speed DWS applications
Dedicated logistics deep-learning algorithm handles distorted, wrinkled, dirty and damaged barcodes
Multi-code reading across the field of view and shipping label extraction
Gigabit transmission with original image output for archiving
Networking support: build multi-reader systems via the code reading platform
IP67 protection for harsh industrial environments

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Engineering data

The MV-ID6250PM-00C-NNG at a glance

The numbers that set this model apart, taken from its own printed specifications.

Resolution5120 × 5120 px

Max. frame rate20 fps

Max. reading speed60 codes/s

Ingress protectionIP67

Power consumption17 Wmax. at 24 V DC

ShutterGlobal

Other models in the ID6000 Series Logistic Code Reader series

See all 9 models

Model	Resolution	Sensor	Interface	Price	Availability	Link
MV-ID6250PM-00C-NNGThis model	5120 × 5120	CMOS, global shutter	Gigabit Ethernet(1000 Mbit/s)	$5,689.00 Quote	Ships in 2-3 weeks	Compare
MV-ID6120PM-00C-NNG	4096 × 3072	CMOS, global shutter	Gigabit Ethernet (1000 Mbit/s)	$5,689.00 Quote	Ships in 2-3 weeks	CompareView
MV-ID6200M-00C-NNG	5440 × 3648	CMOS, rolling shutter	Gigabit Ethernet	$5,689.00 Quote	Ships in 2-3 weeks	CompareView
MV-ID6200EM-00C-NNG	5440 × 3648	CMOS, rolling shutter	Gigabit Ethernet (1000 Mbit/s)	$5,689.00 Quote	Ships in 2-3 weeks	CompareView
MV-ID6200PM-00C-NNG	5120 × 3968	CMOS, global shutter	Gigabit Ethernet(1000 Mbit/s)	$5,689.00 Quote	Ships in 2-3 weeks	CompareView
MV-ID6200PM-KU	5120 × 3968	CMOS, global shutter	Gigabit Ethernet(1000 Mbit/s)	$5,689.00 Quote	Ships in 2-3 weeks	CompareView
MV-ID6200EM-LS	5440 × 3648	CMOS, rolling shutter	Gigabit Ethernet(1000 Mbit/s)	$5,689.00 Quote	Ships in 2-3 weeks	CompareView
MV-ID6200EM-16Cef-NNG	5440 × 3648		Gigabit Ethernet(1000 Mbit/s)	$5,689.00 Quote	Ships in 2-3 weeks	CompareView
MV-ID6200EM-25Cef-NNG	5440 × 3648		Gigabit Ethernet(1000 Mbit/s)	$5,689.00 Quote	Ships in 2-3 weeks	CompareView
