Fixed code readers

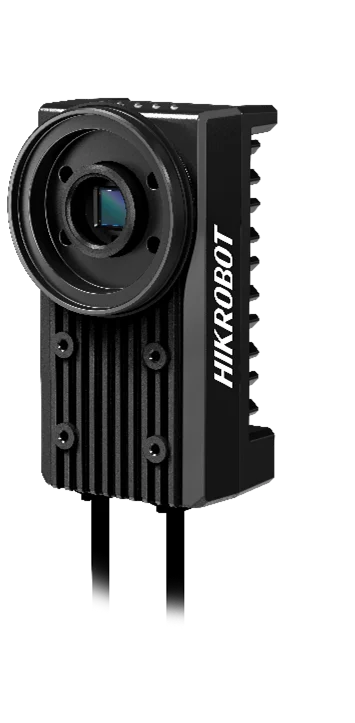

Hikrobot MV-ID6200EM-LS 20MP Logistic Code Reader

Model MV-ID6200EM-LSHikrobot

Resolution5440 × 3648
SensorCMOS, rolling shutter
InterfaceGigabit Ethernet(1000 Mbit/s)
Speed12 fps
Lens mountC-mount
Mono / colourMono

$5,689.00

Quote

Ships in 2-3 weeks

0.87 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-ID6200EM-LS 20MP Logistic Code Reader. Built-in deep-learning decoding algorithm handles distorted, wrinkled, ink-bleed and dirty codes Sony ultra-high-resolution sensor with horizontal resolution up to 5K pixels; the bottom horizontal field of view covers a 1 m conveyor

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-ID6200EM-LS
Brand	Hikrobot
Lens cap	Not included

Sensor and imaging

Symbologies	1D codes: Code 39, Code 128, Code 93, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE; 2D codes: QR Code, Data Matrix
Max. frame rate	12 fps
Max. reading speed	36 codes/sec
Sensor type	CMOS, rolling shutter
Pixel size	2.4 μm × 2.4 μm
Sensor size	1”
Resolution	5440 × 3648
Exposure time	16 μs ~ 500 ms
Mono/color	Mono
Gain	0 ~ 40 dB

Interfaces and I/O

Communication protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP
Data interface	Gigabit Ethernet(1000 Mbit/s)
Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 3/4/5) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1.
Client software	IDMVS

Light

Light source	Not included

Environment and compliance

Ingress protection	IP64
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS

Electrical

Power supply	12 ~ 24 VDC
Max. power consumption	12 W@24 VDC

Mechanical

Lens mount	C-Mount

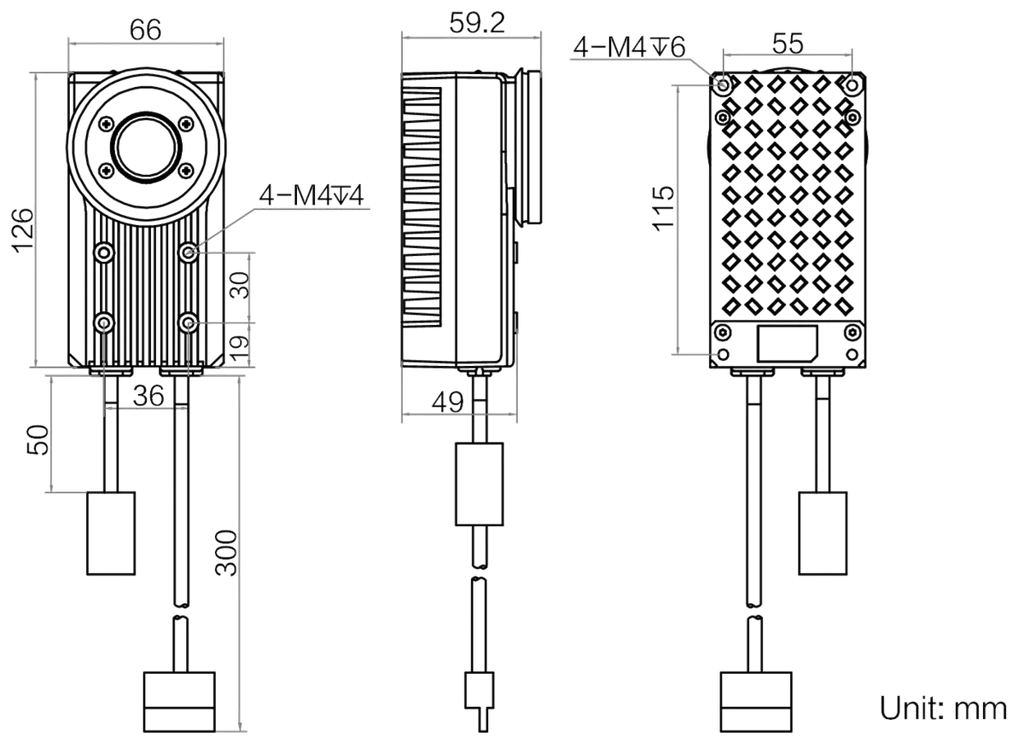

Dimension	126 mm × 66 mm × 55.3 mm
Weight	Approx. 550 g (1.2 lb.)
Shipping weight (estimated)	0.87 kg

Downloads

Features

Built-in deep-learning decoding algorithm handles distorted, wrinkled, ink-bleed and dirty codes
Sony ultra-high-resolution sensor with horizontal resolution up to 5K pixels; the bottom horizontal field of view covers a 1 m conveyor
A single camera rapidly reads multiple codes across an extra-wide field of view
Networking support for multi-camera fusion systems
Easy setup and fast commissioning; with the dedicated logistics code-reading light, enables dynamic DWS applications at 1.8 m/s
