Hikrobot IA-FAS16-AI-05ARH 1.6 MP industrial code reader

Fixed code readers

Hikrobot MV-ID2016XM-05M-RBN 1.6 MP resolution, 05mm, Red light, Semi-polarized, GigE, Autofocus industrial code reader

Model MV-ID2016XM-05M-RBNHikrobot

Resolution1408 × 1200
InterfaceFast Ethernet(100 Mbit/s)
Speed60 fps
Lens mountM12
Focal length5 mm

$739.00

Ships in 2-3 weeks

0.27 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-ID2016XM-05M-RBN 1.6 MP resolution, 05mm, Red light, Semi-polarized, GigE, Autofocus industrial code reader. Highly robust algorithm accurately reads difficult codes: damaged, skewed, low-contrast and laser-etched on metal Integrated digital wide dynamic range (WDR) processing, 4-zone independent light control and a range of optical accessories for sharper code detail

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-ID2016XM-05M-RBN
Brand	Hikrobot
Lens cap	Half polarization lens cap by default. Transparent or full polarization lens cap is optional.
Indicator	Power indicator PWR, Network indicator LNK, Code reading indicator OK/NG, User indicator U1

Optics

Focal length	5 mm
Field of view	34°(H) x 29°(V)

Sensor and imaging

Symbologies	1D codes: Code 39, Code 93, Code 128 (GS1-128 included), CodaBar, EAN 8, EAN 13, UPCA, UPCE; ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, and Pharmacode (one/two-track); 2D matrix codes: QR Code (GS1-QR included), Data Matrix (GS1-DM included), MicroQR, AZTEC, HanXin, Maxi code; Stacked codes: PDF417, MicroPDF417
Max. frame rate	60 fps
Max. reading speed	80 codes/sec
Sensor type	CMOS, Global shutter, Mono, 1/3.52”, 2.2 μm × 2.2 μm
Resolution	1408 × 1200
Exposure time	36 μs ~ 100 ms
Gain	0 dB ~ 48 dB
Aiming system	2 green LED lights

Interfaces and I/O

Data interface	Fast Ethernet(100 Mbit/s)
Communication protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Melsec/SLMP, Ethernet/IP, ModBus, UDP, FINS
Digital I/O	17-pin M12 connector for power and I/O: 2 isolated inputs (LineIn 0/1), 2 isolated outputs (LineOut 3/4), 1× RS-232, Device trigger via side button supported
Client software	IDMVS

Light

Light source	Red as standard (620 nm to 632 nm), optional white (6500 K), Blue (464 nm to 476 nm), red/blue dual-color (620 nm to 632 nm & 464 nm to 476 nm), infrared (840 nm to 870 nm), ultraviolet (360 nm to 370 nm)

Environment and compliance

Ingress protection	IP65
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Vibration resistance	Device only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019)
Shock resistance	Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019)
Certification	CE, RoHS, KC

Electrical

Power supply	24 VDC
Power consumption	Avg.: 5 W @ 24 VDC (light source enabled); Max.: 12 W @ 24 VDC (light source enabled)

Mechanical

Lens mount	M12-mount, mechanical focusing
Shell material	Metal

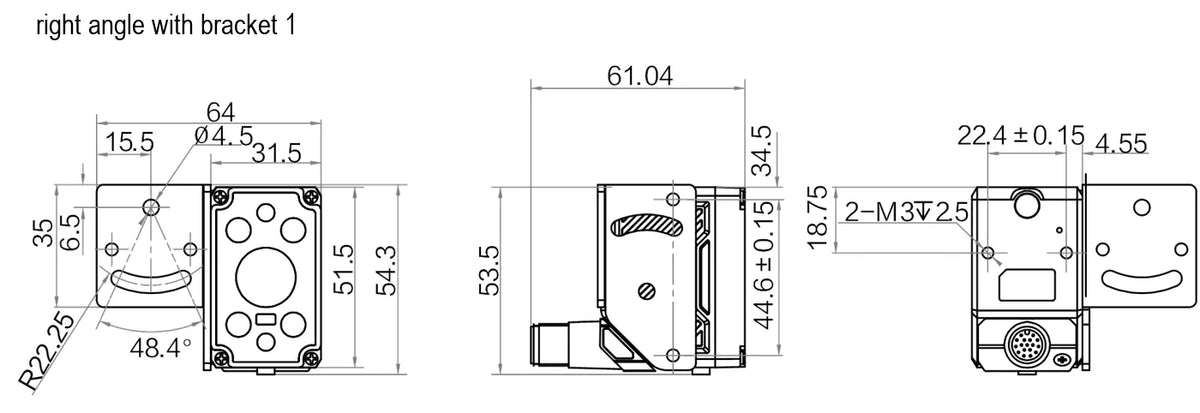

Dimension	Straight angle: 72.7 mm × 31.5 mm × 41 mm (2.9" × 1.2" × 1.6"); Right angle: 51.5 mm × 31.5 mm × 61 mm (2.0" × 1.2" × 2.4")
Weight	118 g
Shipping weight (estimated)	0.27 kg

Downloads

Features

Highly robust algorithm accurately reads difficult codes: damaged, skewed, low-contrast and laser-etched on metal
Integrated digital wide dynamic range (WDR) processing, 4-zone independent light control and a range of optical accessories for sharper code detail
Modular assembly, rotatable tail cable, separable cables and multi-side mounting interfaces for tight spaces
Multiple isolated I/O channels and industrial protocols for seamless integration with automation systems
With the IDMVS client: autofocus, one-click tuning and more for fast, easy setup

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer
