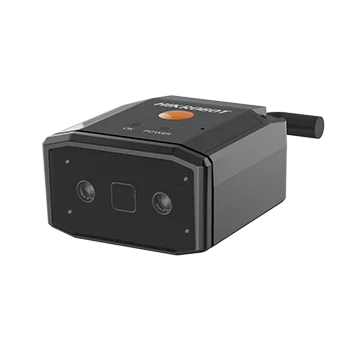

Hikrobot ED2X 1.3 MP ultra-compact smart code reader
  • Hikrobot ED2X 1.3 MP ultra-compact smart code reader
  • MV-ID2013EM-05-WBN dimensions (mm)

Fixed code readers

Hikrobot ED2X 1.3 MP ultra-compact smart code reader

Model ED2XHikrobot

  • Resolution1280 × 1024
  • SensorCMOS, global shutter
  • Speed50 fps
  • Lens mountM5.8
  • Mono / colourMono
  • Pixel size2.7 μm × 2.7 μm
$779.00

Ships in 2-3 weeks

0.2 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot ED2X 1.3 MP ultra-compact smart code reader. Ultra-compact: fits all kinds of machines and tight workstations Rich I/O interface and plug-in power connector for easy field wiring

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelED2X
BrandHikrobot
IndicatorPower indicator (POWER), status indicator (OK/NG)

Optics

Depth of fieldCode 39(5 mil):75 ~ 215 mm; Code 128(10 mil):50 ~ 400 mm; EAN 13(13 mil):60 ~ 420 mm; QR Code(15 mil):40 ~ 290 mm; Data Matrix(10 mil):50 ~ 240 mm
Focal length4.7 mm

Sensor and imaging

Symbologies1D code: Code 39, Code 93, Code 128, ITF14, ITF25, CodaBar, EAN, UPCA, UPCE, etc.; 2D code: QR Code, Data Matrix, etc.
Max. frame rate50 fps
Max. reading speed30 codes/sec
Sensor typeCMOS, global shutter
Pixel size2.7 μm × 2.7 μm
Sensor size1/4”
Resolution1280 × 1024
Exposure time60 μs ~ 0.6 sec
Gain1 ~ 28 dB
Mono/colorMono
Aiming systemGreen LED

Interfaces and I/O

Communication protocolGigE: SmartSDK, TCP Client, Serial, FTP, HTTP, TCP Server, UDP, Profinet, EthernetIP; USB: SmartSDK, USB (HID, CDC)
Data interfaceEthernet: Fast Ethernet (100 Mbit/s), RS-232, DC terminal; USB: USB 2.0
Digital I/OEthernet: DB15 connector provides power and I/O, Includes 2 non-isolated inputs (Line 0/1), 2 non-isolated outputs (Line 2/3), 1× RS-232, Triggering via side button supported; USB: DB15 connector for data transfer, Device trigger via side button supported
Client softwareIDMVS

Light

Ambient illumination0 ~ 10000 lux
Light sourceRed

Environment and compliance

Ingress protectionIP54
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, FCC, RoHS

Electrical

Power supplyEthernet: 12 to 24 VDC; USB: 5 VDC (USB2.0 powered)
Max. power consumptionEthernet: 2.5 W @ 12 VDC; USB: 2.5 W @ 5 VDC

Mechanical

Lens mountM5.8-Mount
Dimension45 mm × 43 mm × 25 mm
WeightApprox. 68.5 g (0.2 lb.)
Shipping weight (estimated)0.20 kg
