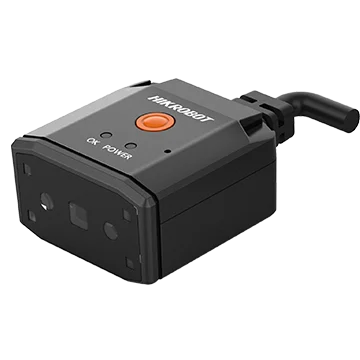

Hikrobot MV-ID2013EP-05-RBN-U 1.3 MP resolution, 5 mm focal length, 120 mm focus distance, Metal-housing high-value industrial code reader
  • Hikrobot MV-ID2013EP-05-RBN-U 1.3 MP resolution, 5 mm focal length, 120 mm focus distance, Metal-housing high-value industrial code reader

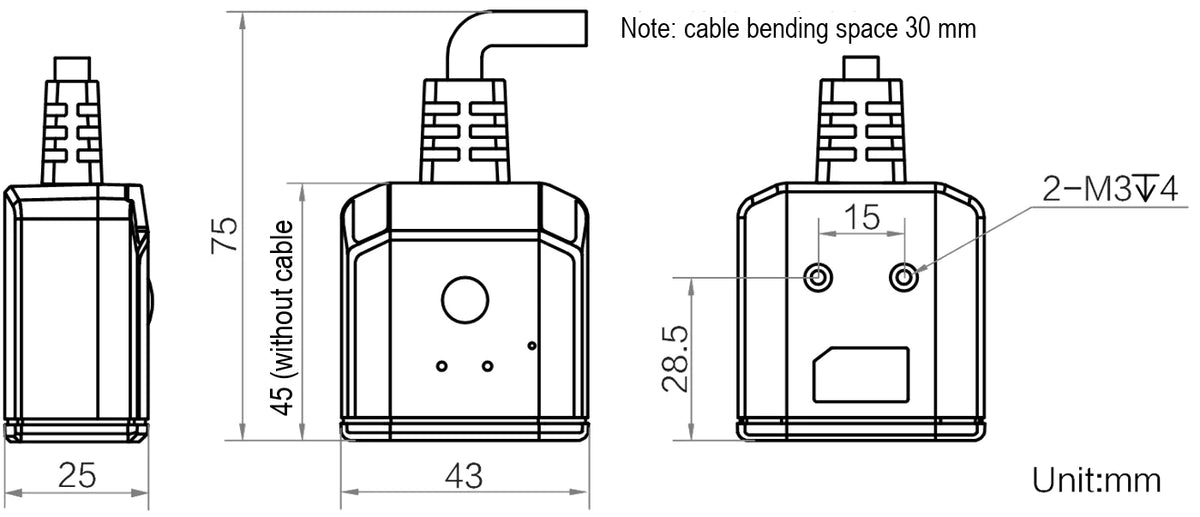

  • MV-ID2013EP-05-RBN-U dimensions (mm)

Fixed code readers

Hikrobot MV-ID2013EP-05-RBN-U 1.3 MP resolution, 5 mm focal length, 120 mm focus distance, Metal-housing high-value industrial code reader

Model MV-ID2013EP-05-RBN-UHikrobot

  • Resolution1280 × 1024
  • InterfaceUSB 2.0
  • Speed50 fps
  • Lens mountM5.8
  • Focal length4.7 mm
$709.00

Ships in 2-3 weeks

0.2 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Available in the US - comparable cameras:

Ask an engineerBrowse Fixed code readers

MV-ID2013EP-05-RBN-U: resolution 1280 x 1024, max. frame rate 50 fps, focal length 4.7 mm, light source Red, data interface USB 2.0.

Hikrobot MV-ID2013EP-05-RBN-U 1.3 MP resolution, 5 mm focal length, 120 mm focus distance, Red basic light, Clear window, USB, Metal-housing high-value industrial code reader. Ultra-compact: fits all kinds of machines and tight workstations. Rich I/O interface and plug-in power connector for easy field wiring.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-ID2013EP-05-RBN-U
BrandHikrobot
IndicatorPower indicator (POWER), status indicator (OK/NG)

Optics

Depth of fieldCode 39(5 mil):75 ~ 215 mm; Code 128(10 mil):50 ~ 400 mm; EAN13(13 mil):60 ~ 420 mm; QR Code(15 mil):40 ~ 290 mm; Data Matrix(10 mil):50 ~ 240 mm
Focal length4.7 mm

Sensor and imaging

Symbologies1D code: Code 39, Code 93, Code 128, ITF14, ITF25, CodaBar, EAN, UPCA, UPCE, etc.; Matrix 2D code: QR Code, Data Matrix, etc.
Max. frame rate50 fps
Max. reading speed30 codes/sec
Sensor typeCMOS, global shutter, mono, 1/4", 2.7 μm × 2.7 μm
Resolution1280 × 1024
Exposure time60 μs ~ 0.6 sec
Gain1 ~ 28 dB
Aiming systemGreen LED

Interfaces and I/O

Data interfaceUSB 2.0
Communication protocolSmartSDK, USB(HID, CDC)
Digital I/ODB15 connector for data transmission, Device trigger via side button supported
Client softwareIDMVS

Light

Ambient illumination0 ~ 10000 lux
Light sourceRed

Environment and compliance

Ingress protectionIP54
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
Vibration resistance10 Hz ~ 55 Hz, Full amplitude 1.5 mm X, Y, Z directions, 2 hours each (IEC 60068-2-6:2007, GB/T 2423.10-2019)
Shock resistance30 g / 11 ms, Half-sine wave, Six axes, 500 shocks per axis (IEC 60068-2-27, GB/T 2423.5-2019)
CertificationCE, RoHS, KC

Electrical

Power supply5 VDC (USB 2.0 powered)
Power consumptionAvg. power: 2.5 W @ 5 VDC; Max. power: 5 W @ 5 VDC

Mechanical

Shell materialMetal
Dimension45 mm × 43 mm × 25 mm
WeightApprox. 68.5 g (0.2 lb.)
Lens mountM5.8-Mount
Shipping weight (estimated)0.20 kg

Engineering data

The MV-ID2013EP-05-RBN-U at a glance

The numbers that set this model apart, taken from its own printed specifications.

Resolution1280 × 1024 px
Max. frame rate50 fps
Max. reading speed30 codes/s
Focal length4.7 mm
Ingress protectionIP54
Power consumption2.5 Wavg. at 5 V DC; max. 5 W
