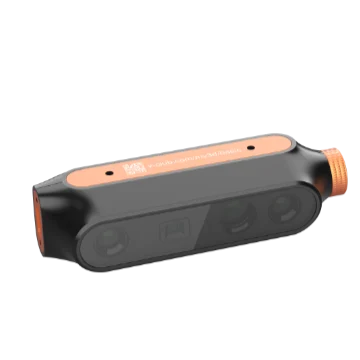

Hikrobot MV-EB435i V2.0 Stereo perception camera

Model MV-EB435i V2.0Hikrobot

InterfaceUSB3.0
Speed30 fps
TypeStereo / structured light
Near field of view310 mm × 210 mm

Price on request

Ships in 2-3 weeks

0.34 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-EB435i V2.0 Stereo perception camera. Active stereo technology with synchronized high-frame-rate RGB and depth map output V2.0 optimized optical design for higher-quality depth maps

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-EB435i V2.0
Brand	Hikrobot
Clearance distance (CD)	200 mm
Measurement range (MR)	4800 mm
Depth image detection accuracy	Accuracy: 1.5% @0.2 m ~ 3 m; Hole rate: < 0.2%
Data type	Left/right IR images, Color image, Depth map
Laser safety class	Class 1

Optics

Near field of view	310 mm × 210 mm
Far field of view	9200 mm × 5200 mm
Field of view	Depth map FOV: 84° × 55°

Sensor and imaging

Sensor type	IR sensor: global shutter; Color sensor: global shutter
Resolution	Depth map: 1280 × 720 @ 30 fps; RGB image: 640 × 360 @ 30 fps
Max. frame rate	30 fps

Interfaces and I/O

Data interface	USB3.0
Client software	HiViewer

Environment and compliance

Temperature	Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 85% RH (no condensation)
Certification	CE

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11

Electrical

Power supply	5 VDC (USB 3.0 powered)
Power consumption	4.5 W @ 5 VDC (USB 3.0 powered)

Mechanical

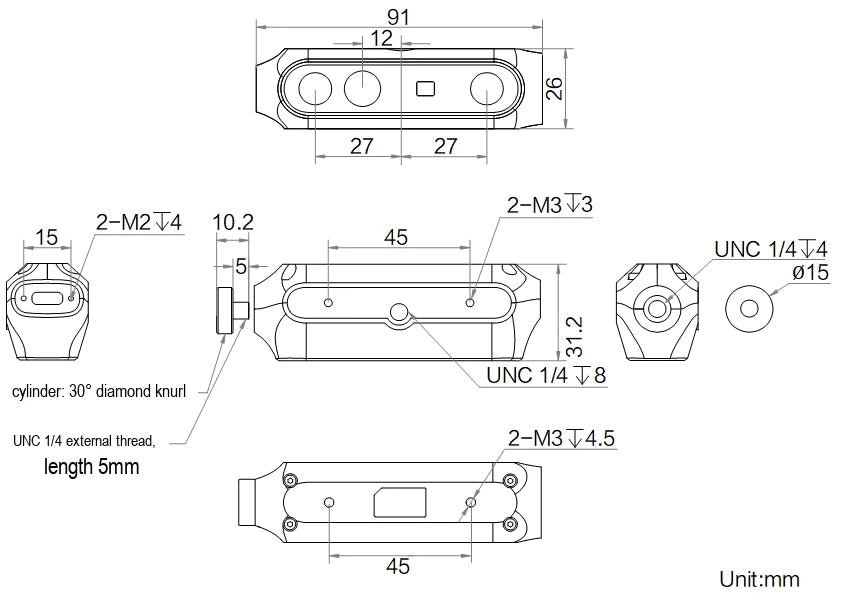

Dimension	91 mm × 26 mm × 31.2 mm
Weight	Device with heat sink: Approx. 170 g (0.4 lb.); Device without heat sink: Approx. 90 g (0.2 lb.)
Shipping weight (estimated)	0.34 kg

Downloads

Features

Active stereo technology with synchronized high-frame-rate RGB and depth map output
V2.0 optimized optical design for higher-quality depth maps
Factory-calibrated intrinsics and multi-platform SDK for fast, easy secondary development
Narrow-band filter for stronger interference resistance
Ultra-small with mounting holes on multiple sides for any installation requirement
