3D sensors

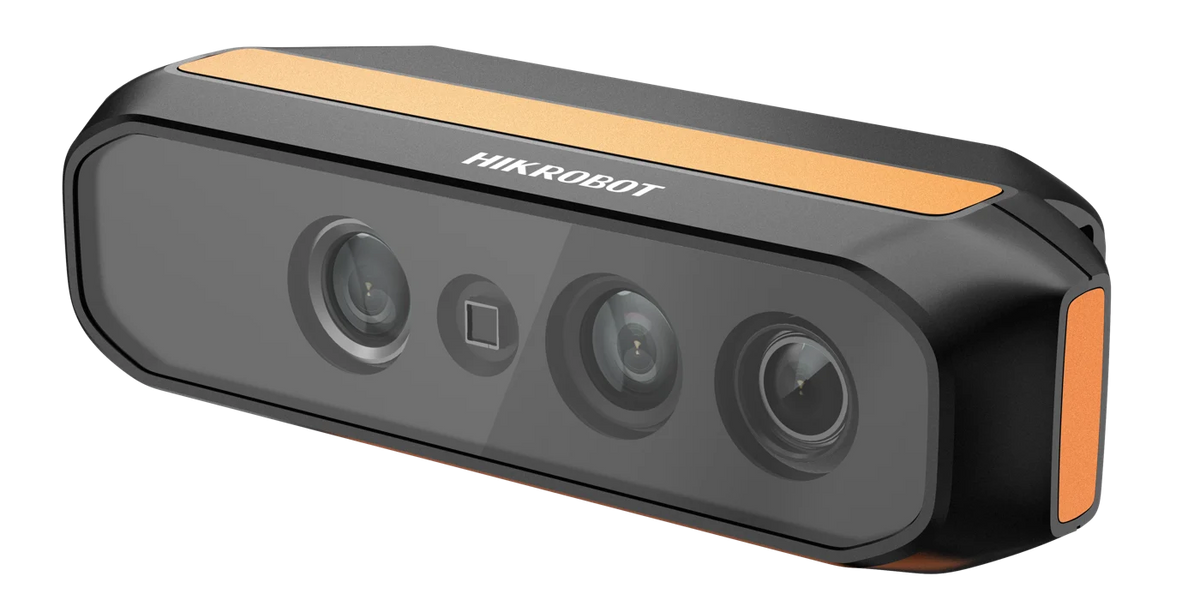

Hikrobot MV-DB02SNU RGBD smart stereo camera
Model MV-DB02SNUHikrobot
- InterfaceUSB 3.0
- Speed17 fps
- TypeStereo / structured light
- Near field of view110 mm × 85 mm
$3,229.00
Ships in 2-3 weeks
0.22 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-DB02SNU RGBD smart stereo camera. Active stereo technology with high-frame-rate depth map output Short-range design for near- to mid-range applications
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-DB02SNU |
|---|---|
| Brand | Hikrobot |
| Working range | 100 mm ~ 1000 mm |
| Depth image detection accuracy | Z: 5 mm @ 0.5 m, 10 mm @ 1 m |
| Data type | Left/right IR images, Color image, Depth map |
| Laser safety class | Class 1 |
Optics
| Near field of view | 110 mm × 85 mm |
|---|---|
| Far field of view | 1200 mm × 1000 mm |
| Field of view | Depth map FOV: 60° × 50° |
Sensor and imaging
| Resolution | Depth map: 1280 × 1024 @ 17 fps; RGB image: 1536 × 1280 @ 17 fps |
|---|---|
| Max. frame rate | 17 fps |
Interfaces and I/O
| Data interface | USB 3.0 |
|---|---|
| Client software | HiViewer |
Environment and compliance
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
|---|---|
| Humidity | 20% RH to 85% RH (no condensation) |
Computing
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 |
|---|
Electrical
| Power supply | 5 VDC (USB 3.0 powered) |
|---|---|
| Power consumption | 4.7 W @ 5 VDC (USB3.0 powered) |
Mechanical

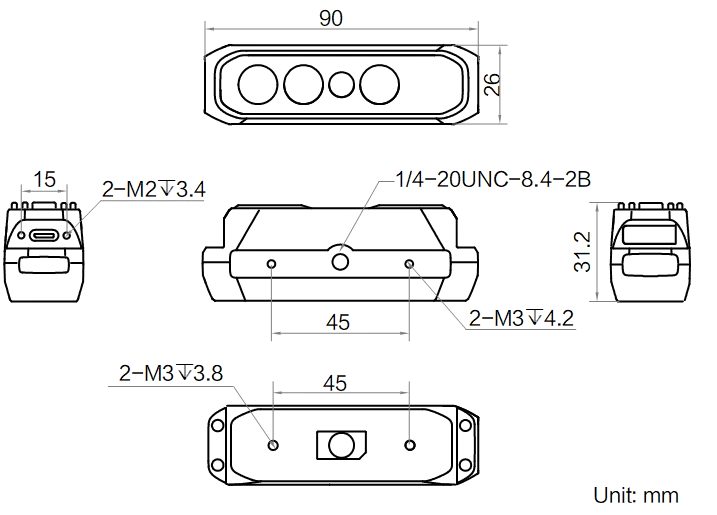

| Dimension | 90 mm × 26 mm × 31.2 mm |
|---|---|
| Weight | Approx. 87 g (0.2 lb.) |
| Shipping weight (estimated) | 0.22 kg |
