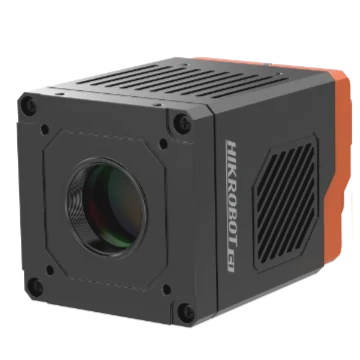

Hikrobot MV-CI013-GS-TF 1.3MP SWIR Camera, IMX990, GigE, with TEC and fan
  • Hikrobot MV-CI013-GS-TF 1.3MP SWIR Camera, IMX990, GigE, with TEC and fan

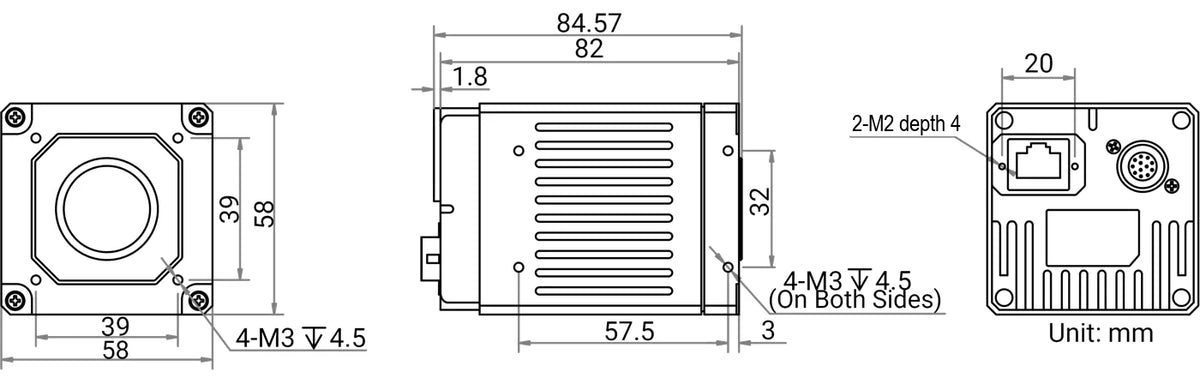

  • MV-CI013-GS-TF dimensions (mm)

Infrared cameras

Hikrobot MV-CI013-GS-TF 1.3MP SWIR Camera, IMX990, GigE, with TEC and fan

Model MV-CI013-GS-TFHikrobot

  • Resolution1280 × 1024
  • SensorInGaAs
  • Speed91 fps @ 1280 × 1024
  • Lens mountC-mount
  • Pixel size5 μm × 5 μm

Price on request

Ships in 2-3 weeks

0.76 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Infrared cameras

MV-CI013-GS-TF: resolution 1280 x 1024, sensor type InGaAs, sensor size 1/2", max. frame rate 91 fps @ 1280 x 1024.

Hikrobot MV-CI013-GS-TF 1.3MP SWIR Camera, IMX990, GigE, with TEC and fan. Adopts InGaAs sensor and supports spectral imaging of 0.4 μm to 1.7 μm. Supports TEC to provide good cooling effect.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CI013-GS-TF
BrandHikrobot
CompatibilityGigE Vision V2.0, GenICam

Sensor and imaging

Sensor typeInGaAs
Sensor modelSony® IMX990
Pixel size5 μm × 5 μm
Sensor size1/2"
Resolution1280 × 1024
Max. frame rate91 fps @ 1280 × 1024
Dynamic range56 dB
SNR52.2 dB
Gain0 dB to 18 dB
Exposure timeUltraShort exposure mode: 3 μs to 7 μs; Standard exposure mode: 8 μs to 0.1 sec
Exposure modeOff/Once/Continuous exposure mode
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
Client softwareMVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –30 °C to 50 °C (–22 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supply9 VDC to 24 VDC
Power consumptionTyp. 11.7 W @ 12 VDC (TEC enabled)

Mechanical

Lens mountC-mount
Installation methodInstallation via three-side screw holes
Dimension58 mm × 58 mm × 82 mm (2.3" × 2.3" × 3.2")
WeightApprox. 470 g (1.0 lb.)
Shipping weight (estimated)0.76 kg

Engineering data

Mount and connect the MV-CI013-GS-TF

Holes, threads, cable and protection as printed for this model.

MountingScrews
ProtectionIP40

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.

Other models in the Short Wave Infrared Camera series

See all 5 models
ModelResolutionSensorSpeedPriceAvailabilityLink
MV-CI013-GS-TFThis model1280 × 1024InGaAs91 fps @ 1280 × 1024On request Ships in 2-3 weeks
MV-CI013-GS-TH1280 × 1024InGaAs91 fps @ 1280 × 1024 Mono 8On request Ships in 2-3 weeks View
MV-CI013-GS-NN1280 × 1024InGaAs91 fps @ 1280 × 1024 Mono 8On request Ships in 2-3 weeks View
MV-CI050-Y1S-NN2592 × 2056InGaAs, global shutter120 fps @ 2592 × 2056 Mono 8On request Ships in 2-3 weeks View
MV-CI010-GS-NN1024 × 1InGaAs15 kHz @ 1024 × 1 Mono 8On request Ships in 2-3 weeks View
