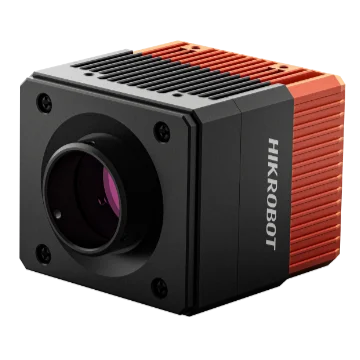

Hikrobot MV-CI010-GS-NN 1k SWIR line-scan, GigE, Fanless
Model MV-CI010-GS-NNHikrobot
- Resolution1024 × 1
- SensorInGaAs
- InterfaceGigabit Ethernet(1000Mbit/s)
- Speed15 kHz @ 1024 × 1 Mono 8
- Lens mountC-mount
- Pixel size12.5 μm × 12.5 μm
- Highest dynamic range of the 5 models in its series: 69.8 dB
Price on request
Ships in 2-3 weeks
0.6 kg shipping weight
Not available in the United States. Available for delivery to other countries.
MV-CI010-GS-NN: resolution 1024 x 1, sensor type InGaAs, data interface Gigabit Ethernet(1000Mbit/s), dynamic range 69.8 dB.
Hikrobot MV-CI010-GS-NN 1k SWIR line-scan, GigE, Fanless. InGaAs sensor with 0.9–1.7 µm broad-spectrum imaging, large 12.5 µm pixels and high dynamic range Compact camera body fits tight spaces in industrial equipment
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Certifications (as printed)CERoHS
Specifications
General
| Model | MV-CI010-GS-NN |
|---|---|
| Brand | Hikrobot |
| Compatibility | GigE Vision 2.0, GenICam |
Sensor and imaging
| Sensor type | InGaAs |
|---|---|
| Pixel size | 12.5 μm × 12.5 μm |
| Resolution | 1024 × 1 |
| Pixel format | Mono 8/10/12/14 |
| Max. line rate | 15 kHz @ 1024 × 1 Mono 8 |
| Dynamic range | 69.8 dB |
| SNR | 46.6 dB |
Interfaces and I/O
| Data interface | Gigabit Ethernet(1000Mbit/s) |
|---|---|
| Digital I/O | 12-pin P10 connector provides power and I/O: 1 single-ended frame trigger input, 1 single-ended line trigger input, 1 differential line trigger input (RS422 level) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
Environment and compliance
| Ingress protection | IP40 (under proper lens installation and wiring) |
|---|---|
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, RoHS |
Computing
| Operating system | Windows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits |
|---|
Electrical
| External trigger mode | Line trigger, frame trigger, line + frame trigger |
|---|---|
| Power supply | 12 VDC |
| Power consumption | 5.0 W @ 12 VDC |
Mechanical

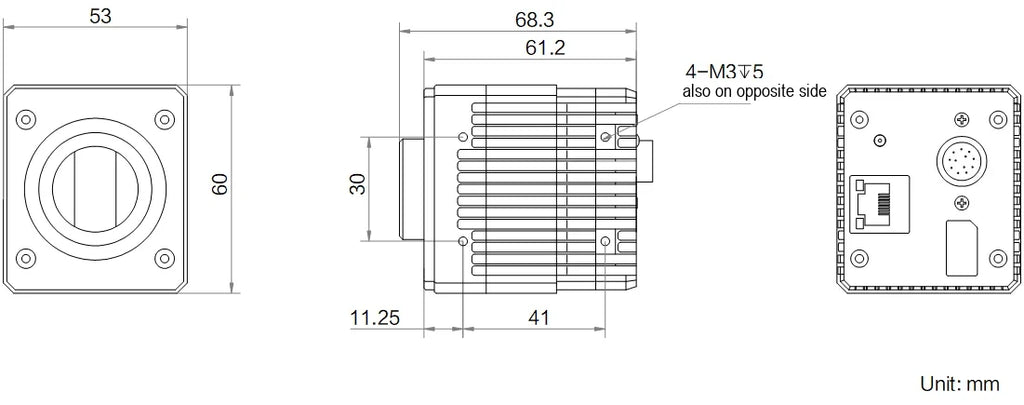

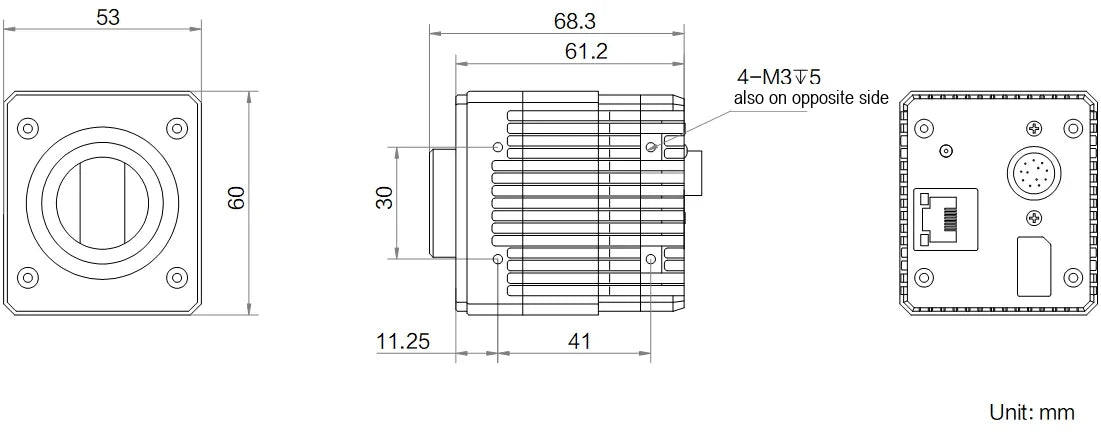

| Dimension | 53 mm × 60 mm × 61.2 mm (incl. lens mount) |
|---|---|
| Weight | Approx. 355 g |
| Lens mount | C-Mount |
| Shipping weight (estimated) | 0.60 kg |
