Manual X / Y / Z axis displacement slide stages, travel ±15mm (LS-X4060)
Model LS-X4060
- MaterialAluminum alloy
- Travel±15mm
- Load49N(5kgf)
- TypeManual slide stages
$159.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.49 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Manual X / Y / Z axis displacement slide stages. Camera stand brackets and manual / motorized slide plate accessories for automation and vision set-ups. At a glance: travel ±15mm; load 49N(5kgf); table size 40 x 60 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-X4060 |
|---|---|
| Axis | X |
| Min. scale | 0.01mm |
| Precision | 0.03mm |
| Parallelism | 0.03mm |
| Movement | X axis |
| Drive | Gear rack, manual |
| Movement parallelism | <0.3/30 |
Mechanical
| Travel | ±15mm |
|---|---|
| Load | 49N(5kgf) |
| Material | Aluminum alloy |
| Weight | 0.28kg |

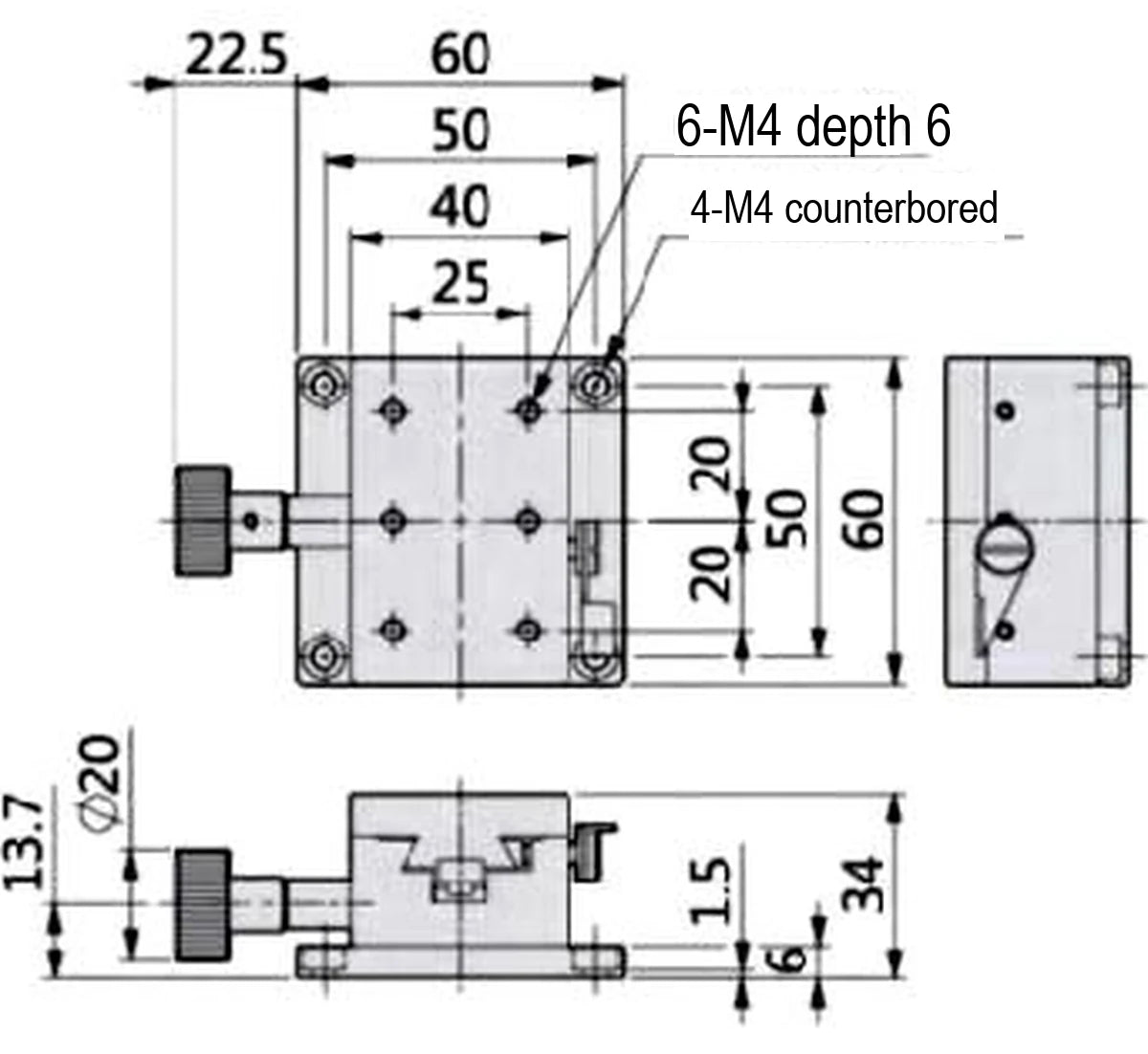

| Table size | 40 x 60 mm |
| Table thickness | 34 mm |
| Shipping weight (estimated) | 0.49 kg |
