Telecentric lenses
Bi-telecentric lens for 39mm cameras, 0.698x, WD 138 mm (LS-VCM71M-56-AL)
Model LS-VCM71M-56-AL
- Magnification0.698x
- MountF-mount
- SensorAPS-H
- Working distance138±2
- Field of view56
$1,519.00
In stock - ships the same business day (2 available, order by 2 PM ET)
1.92 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Bi-telecentric lens series for sensors up to 71M (39 mm dia.), F-Mount/Other. Models are named by object field of view (dia. mm); each lists magnification, working distance, F/#, MTF30, depth of field, distortion <0.1% and telecentricity <0.1°.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-VCM71M-56-AL |
|---|
Optics
| Distortion (% max) | <0.1 |
|---|---|
| Telecentricity (deg max) | <0.1 |
| F/# | 10 |
| MTF30 (lp/mm) | >80 |
| Magnification (x) | 0.698 |
| Working distance (mm) | 138±2 |
| Depth of field (mm) | ±1 |
| Field of view (dia. mm) | 56 |
| Object-to-image distance I/O (mm) | 413±3 |
| Best Aperture (F/#) | 13.1 |
| Field of view with CHR 70M (31.0x21.7 sensor) (mm x mm) | 44.5x31.2 |
| Compatible telecentric led lighting | LS-VCL-56-XW-Y |
Sensor and imaging
| Max sensor size (dia. mm) | 39(71M) |
|---|---|
| Sensor format | 39 mm |

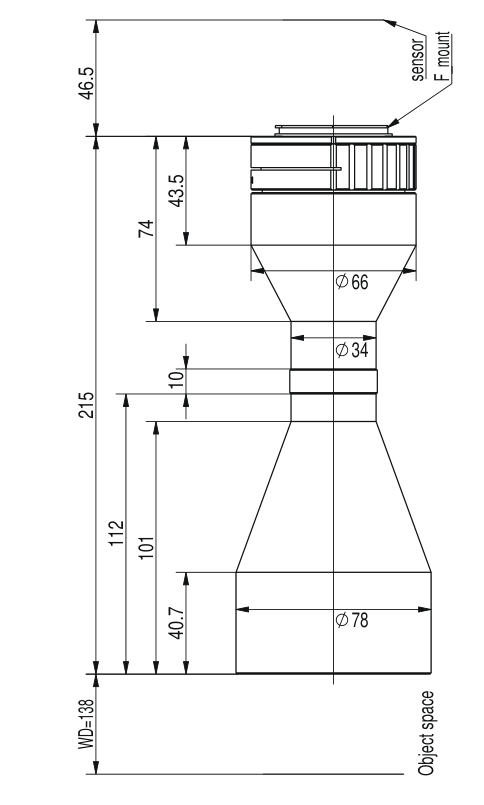

Mechanical
| Mount | F-Mount/Other |
|---|---|
| Length (mm) | 215 |
| Weight (kg) | 1.3 |
Other models in the Bi-telecentric lens for 39mm cameras (VCM71M series) series
See all 23 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-VCM71M-26-AL | 1.503x, WD 72 mm | from $999.00 | 13 in stock | View |
| LS-VCM71M-42P-AL | 0.931x, WD 118 mm, F-mount | $1,119.00 | 4 in stock | View |
| LS-VCM71M-36-AL | 1.08x, WD 111 mm | from $1,169.00 | 12 in stock | View |
| LS-VCM71M-42-AL | 0.929x, WD 119 mm | from $1,279.00 | 10 in stock | View |
| LS-VCM71M-48-AL | 0.814x, WD 128 mm | from $1,379.00 | 11 in stock | View |
| LS-VCM71M-48S-AL | 0.813x, WD 138 mm, F or Other-mount | $1,379.00 | 3 in stock | View |
| LS-VCM71M-80P-AL | 0.488x, WD 230 mm, F-mount | $1,639.00 | 2 in stock | View |
| LS-VCM71M-64-AL | 0.613x, WD 187 mm | from $1,649.00 | 10 in stock | View |
| LS-VCM71M-64P-AL | 0.61x, WD 159 mm | from $1,649.00 | 11 in stock | View |
| LS-VCM71M-90-AL | 0.434x, WD 208 mm, F-mount | $1,779.00 | 3 in stock | View |
| LS-VCM71M-72-AL | 0.543x, WD 178 mm | from $1,789.00 | 12 in stock | View |
| LS-VCM71M-100P-AL | 0.393x, WD 238 mm, F-mount | $1,909.00 | 2 in stock | View |
| LS-VCM71M-80-AL | 0.487x, WD 229 mm | from $1,929.00 | 10 in stock | View |
| LS-VCM71M-100-AL | 0.419x, WD 254 mm | from $2,149.00 | 10 in stock | View |
| LS-VCM71M-110-AL | 0.351x, WD 251 mm | from $2,459.00 | 10 in stock | View |
| LS-VCM71M-120-AL | 0.325x, WD 280 mm, F or Other-mount | $2,609.00 | 5 in stock | View |
| LS-VCM71M-136-AL | 0.287x, WD 288 mm | from $2,889.00 | 11 in stock | View |
| LS-VCM71M-150-AL | 0.261x, WD 301 mm | from $3,129.00 | 9 in stock | View |
| LS-VCM71M-170-AL | 0.23x, WD 318 mm | from $3,469.00 | 10 in stock | View |
| LS-VCM71M-190-AL | 0.205x, WD 330 mm, F or Other-mount | $3,819.00 | 4 in stock | View |
| LS-VCM71M-240-AL | 0.163x, WD 410 mm | from $4,669.00 | 15 in stock | View |
| LS-VCM71M-300-AL | 0.13x, WD 465 mm, F or Other-mount | $5,699.00 Quote | Ships in 2-3 weeks | View |
