Telecentric lenses

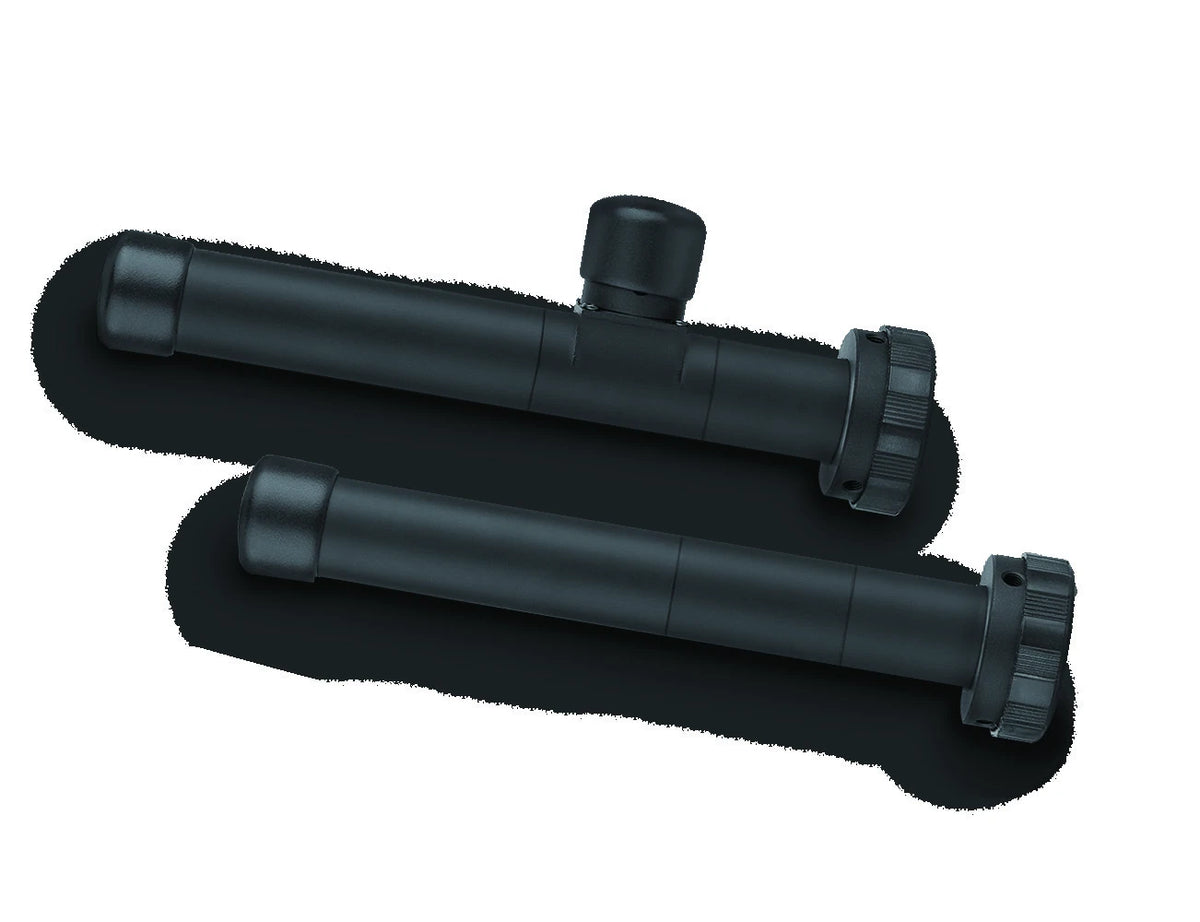

Standard / fixed magnification telecentric lens, 0.8x, WD 65 mm, 1/2", C-Mount (LS-TCL-2928)
Model LS-TCL-2928
- Magnification0.8x
- MountC-mount
- Sensor1/2"
- Working distance65 mm
- Aperture23.9
- Resolution20.1
$1,439.00
Ships in 2-3 weeks
0.55 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
LS-TCL-S93 series C-Mount Macro lens have telecentric lens elements to achieve high performance at reasonable prices.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-2928 |
|---|---|
| NA | 0.0167 |
Optics
| Working distance (mm) | 65 |
|---|---|
| Aperture (F/#) | 23.9 |
| Depth of field (mm) | 3.0 |
| Coaxial light | No |
| Iris | No |
| Magnification (x) | 0.8 |
| Field of view with 9M001 (6.66x5.33 sensor) (mm x mm) | 8.3x6.7 |
| Field of view with ICX267/205 (6.47x4.84 sensor) (mm x mm) | 8.1x6.1 |
Sensor and imaging
| Max sensor size (dia. mm) | 8.0(1/2") |
|---|---|
| Resolution (μm) | 20.1 |
| Sensor format | 1/2" |

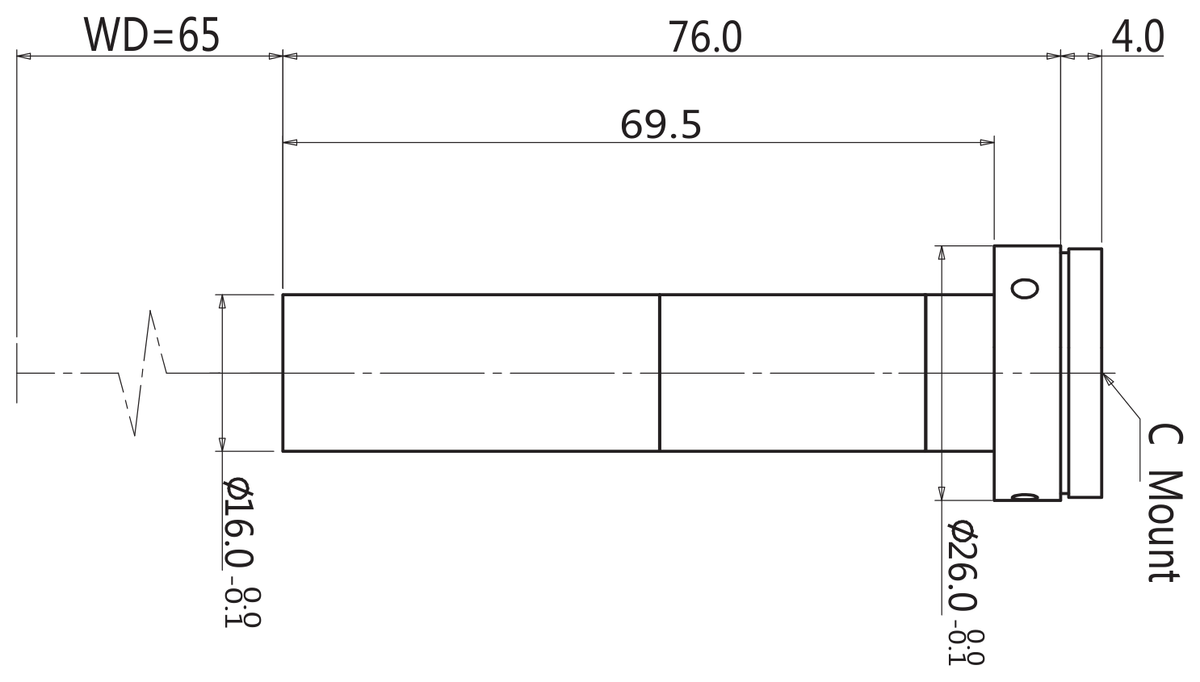

Mechanical
| Mount | C |
|---|---|
| Length (mm) | 76.0 |
| Shipping weight | 0.55 kg |
