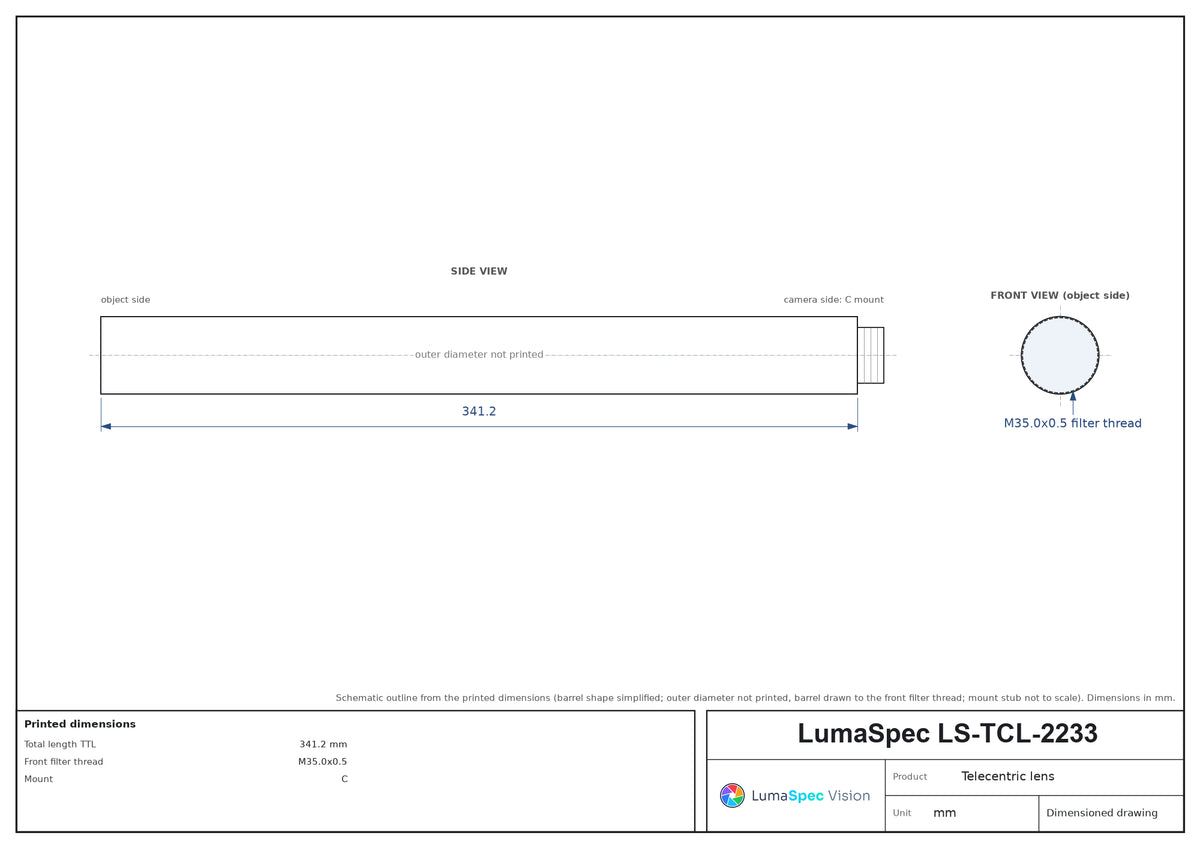

LS-TCL-2233 dimensions (mm)
  • LS-TCL-2233 dimensions (mm)
  • 1x, WD 150 mm, 1.1", C-mount telecentric lens (LS-TCL-2233)

Main picture: this model's dimensioned drawing, from its printed dimensions. The photo shows representative lenses of this series, not this exact model; size and shape differ by model.

Telecentric lenses

1x, WD 150 mm, 1.1", C-mount telecentric lens (LS-TCL-2233)

Model LS-TCL-2233

  • Magnification1.0x
  • MountC-mount
  • Sensor1.1"
  • Working distance150 mm
  • Aperture17.9
  • Largest total length TTL of the 103 models that list it (127 in its series): 341.2 mm
$1,219.00

Ships in 2-3 weeks

0.68 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1x, WD 150 mm, 1.1", C-mount telecentric lens (LS-TCL-2233)LS-TCL-2233

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-TCL-2233: magnification 1.0x, working distance 150 mm, NA 0.02797, theoretical depth of field ±0.7@F17.9.

1x, WD 150 mm, 1.1", C-mount Telecentric Lens. At a glance: magnification 1.0x; working distance 150 mm; max sensor size 18.0 mm (1.1"); object-side resolution 12 µm; image-side f/# 17.9.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2233

Optics

Magnification (x)1.0
Working distance (mm)150
Image-side F/#17.9
Image-side MTF30 (lp/mm)50
Theoretical depth of field (mm)±0.7@F17.9
Object-side resolution (um)12
Numerical aperture NA0.02797
Image-side distortion (% max)<0.2
Object-side telecentricity (deg max)<0.03
Total length TTL (mm)341.2
Coaxial illuminationNo
Front filter threadM35.0x0.5

Sensor and imaging

Sensor format1.1"
Max sensor size (dia. mm)18.0

Mechanical

MountC
Shipping weight (estimated)0.68 kg

Photo shows a representative model of this series; see the specifications for this model.

Engineering data

Field of view with the LS-TCL-2233

Worked out from this lens's own magnification and image circle: the field it sees on each sensor format.

Image circleØ 18 mmCovers sensors up to 1.1"
Magnification1×
Working distance150 mmDepth of field ±0.7 mm @ F17.9
Distortion< 0.2 %
Total length341.2 mm
NA0.02797
Filter threadM35.0 × 0.5
MTF50 lp/mmimage side, at 30 % contrast
Field of view (width × height) by sensor format
Sensor format1×
2/3"8.45 × 7.07 mm8.4 × 7.1 mm
1/1.2"11.25 × 7.03 mm11.2 × 7 mm
1"13.2 × 8.8 mm13.2 × 8.8 mm
1.1"14.13 × 10.35 mm14.1 × 10.3 mm

Field of view = sensor size ÷ magnification. Sensor sizes are typical for each optical format.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

Cameras this lens fits

7.1 mm sensor diagonal; this lens covers up to 18 mm

17.2 mm sensor diagonal; this lens covers up to 18 mm

9.5 mm sensor diagonal; this lens covers up to 18 mm

3.2 mm sensor diagonal; this lens covers up to 18 mm

6.6 mm sensor diagonal; this lens covers up to 18 mm

With a 5 mm C-CS ring

15.8 mm sensor diagonal; this lens covers up to 18 mm

Adapters

For CS-mount cameras

Other models in the 5-20 MP telecentric lenses (LS-TCL-S63) series

See all 127 models
  • Largest total length TTL of the 103 models that list it (127 in its series): 341.2 mm
