Telecentric lenses

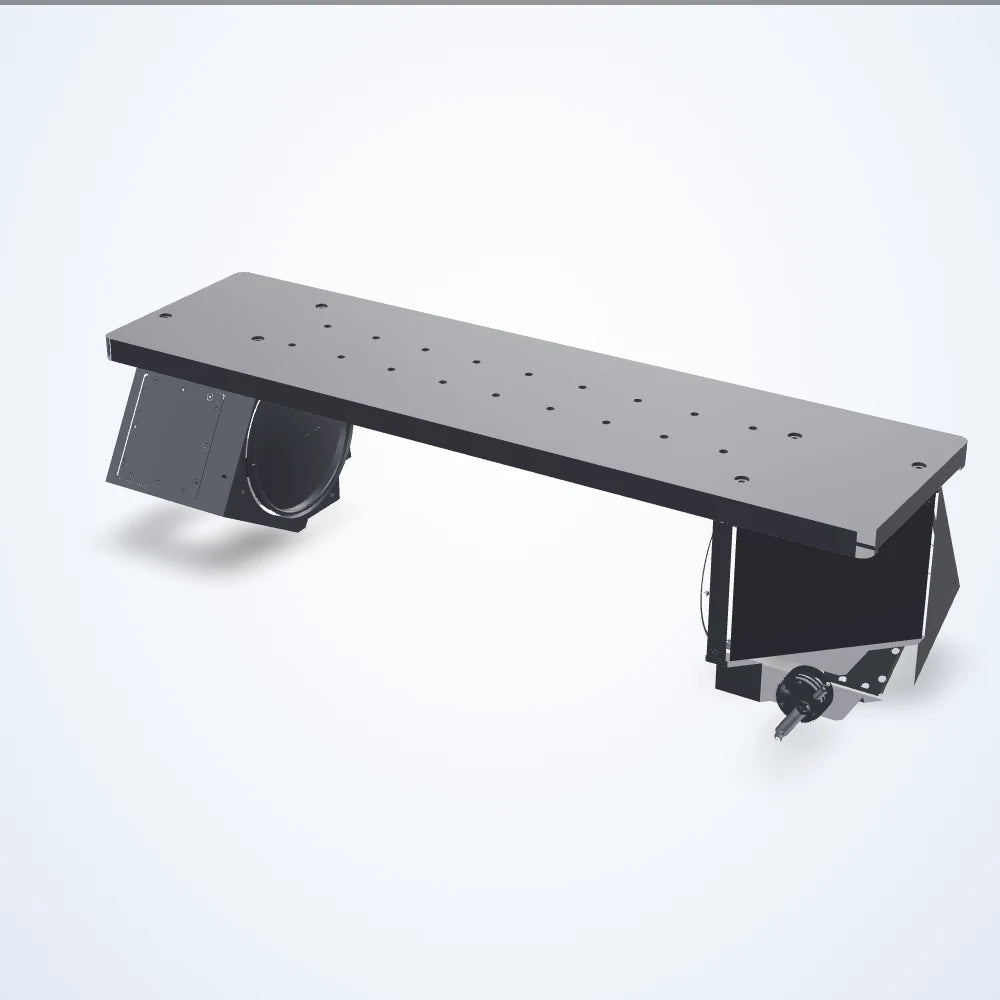

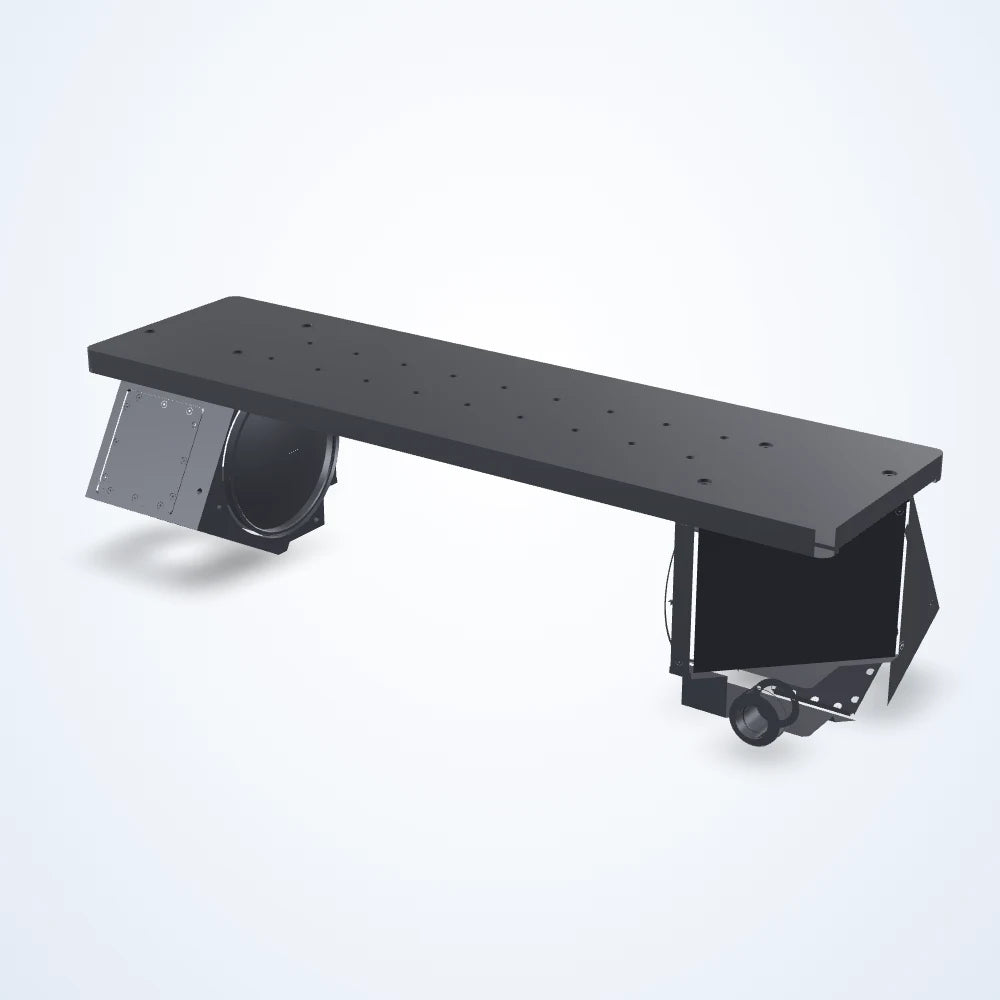

0.093× telecentric lens, 2/3", C-mount (LS-TCL-0390)
Model LS-TCL-0390
- Magnification0.093×
- MountC-mount
- Sensor2/3"
- Working distance278.6 mm
- Resolution55 μm
$11,469.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 278.6 mm; depth of field 47.9 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0390 |
|---|---|
| FOV @ 1/1.8″ | 76.67 x 57.31 mm |
| Fov @ 1/2.0″ | 68.82 x 51.61 mm |
| Fov @ 1/2.5″ | 61.29 x 46.02 mm |
| FOV @ 1/2″ | 68.82 x 51.61 mm |
| Fov @ 1/3.0″ | 51.61 x 38.71 mm |
| FOV @ 2/3″ | 91.40 x 76.24 mm |
| Lens type | Telecentric |
| Working ƒ/n | f/8 |
Optics
| Magnification | 0.093× |
|---|---|
| Working distance | 278.6 mm |
| Depth of field | 47.9 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.04 |
| Filter thread | No Filter Threads |
| Image circle | 11.4 mm |
| Image size dimensions | 9.4 x 9.4 mm |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.06° |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution (pixel size) | 55 μm |
Light
| LED current | 350 mA |
|---|---|
| LED voltage | 3.3 Volts |
| LED voltage maximum | 4 Volts |
| Light color | Green |
| Wavelength | 520 nm |
Environment and compliance
| Operating relative humidity (%) | 20-85 Non Condensing |
|---|---|
| Operating temperature range | 0 to 40°C |
| Storage temperature range | 0 to 50°C |
Electrical
| Power consumption maximum | 2.5 Watts |
|---|---|
| Pulse current maximum | 2000 mA |
| Supply voltage | 12 - 24 Volts |
Mechanical
| Mount | C-mount |
|---|---|

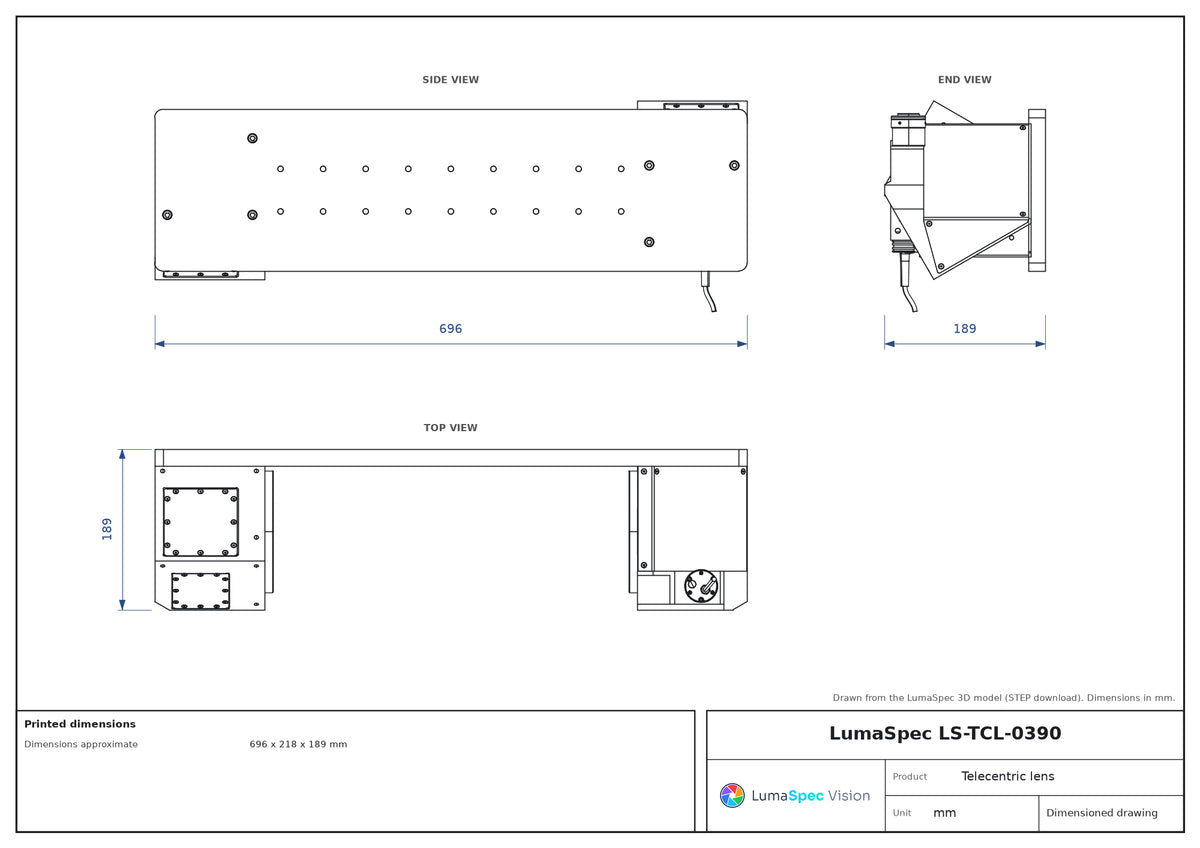

| Dimensions approximate | 696 x 218 x 189 mm |
| Installation location | Indoor Use Only |
| Weight | 15810 Grams |
Other models in the Telecentric lens series, 2/3", C-mount (S25) series
See all 5 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-TCL-0386 | 0.184× | $6,229.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0387 | 0.157× | $7,049.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0388 | 0.138× | $7,649.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0389 | 0.11× | $9,799.00 Quote | Lead time confirmed with your quote | View |
