0.157× telecentric lens, 2/3", C-mount, wavelength 525 nm (LS-TCL-0387)
  • 0.157× telecentric lens, 2/3", C-mount, wavelength 525 nm (LS-TCL-0387)

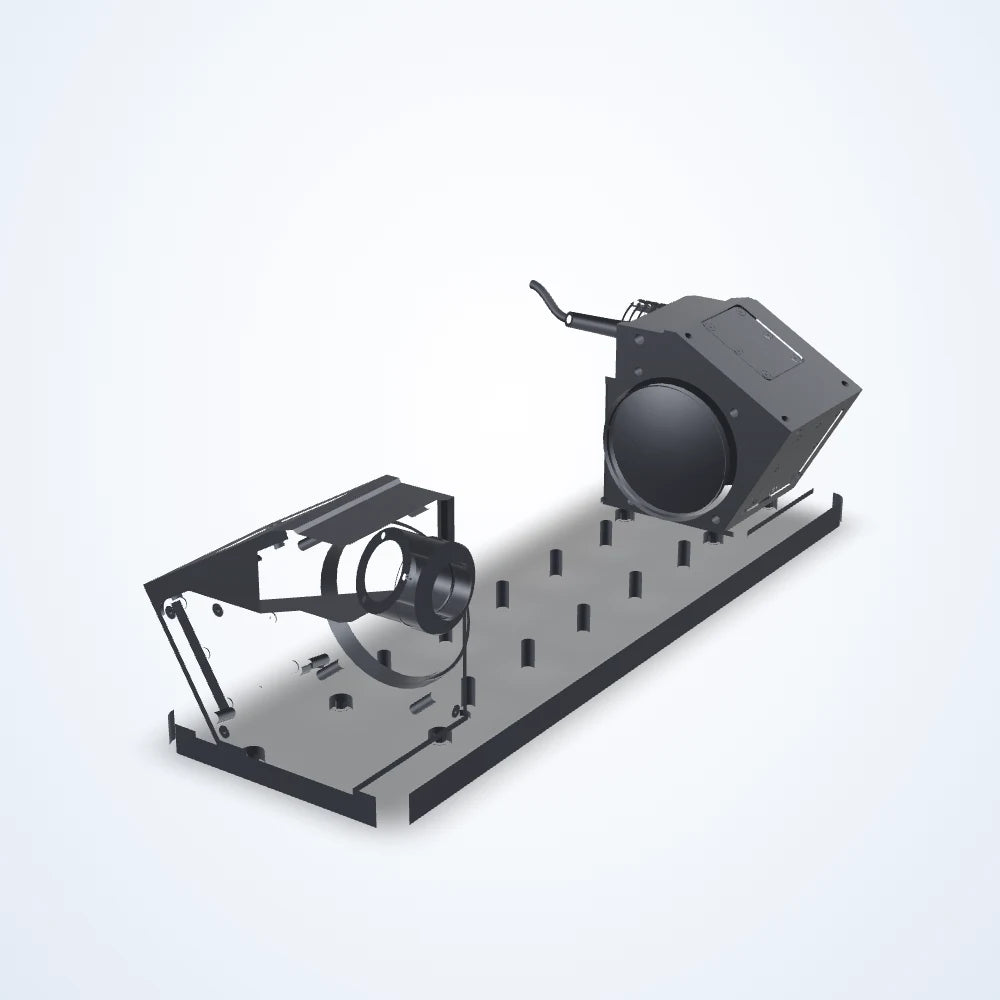

  • 0.157× telecentric lens, 2/3", C-mount, wavelength 525 nm (LS-TCL-0387) - view 2

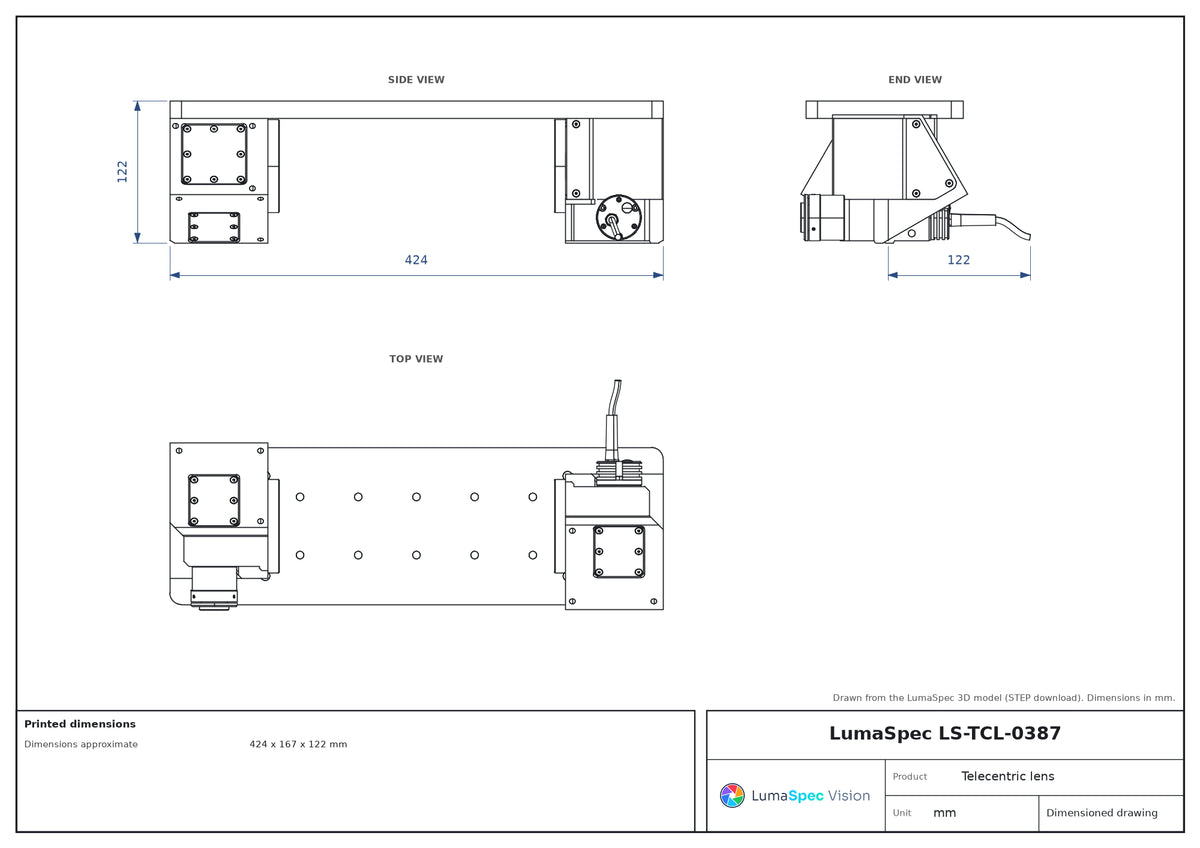

  • LS-TCL-0387 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.157× telecentric lens, 2/3", C-mount, wavelength 525 nm (LS-TCL-0387)

Model LS-TCL-0387

  • Magnification0.157×
  • MountC-mount
  • Sensor2/3"
  • Working distance157.8 mm
  • Resolution32 μm
$7,049.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

0.157× telecentric lens, 2/3", C-mount, wavelength 525 nm (LS-TCL-0387)LS-TCL-0387

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 157.8 mm; depth of field 16.8 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0387
FOV @ 1/1.8″45.41 x 33.95 mm
Fov @ 1/2.0″40.76 x 30.57 mm
Fov @ 1/2.5″36.31 x 27.26 mm
FOV @ 1/2″40.76 x 30.57 mm
Fov @ 1/3.0″30.57 x 22.93 mm
FOV @ 2/3″54.14 x 45.16 mm
Lens typeTelecentric
Working ƒ/nf/8

Optics

Magnification0.157×
Working distance157.8 mm
Depth of field16.8 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.03
Filter threadNo Filter Threads
Image circle11.1 mm
Image size dimensions9.6 x 9.6 mm
Telecentricity maximum0.08°
Telecentricity typical< 0.05°

Sensor and imaging

Sensor format2/3"
Resolution (pixel size)32 μm

Light

LED current350 mA
LED voltage2.8 Volts
Light colorGreen
Wavelength525 nm

Environment and compliance

Operating relative humidity (%)20-85 Non Condensing
Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Electrical

Power consumption maximum2.5 Watts
Pulse current maximum2000 mA
Supply voltage12 - 24 Volts

Mechanical

MountC-mount
Dimensions approximate424 x 167 x 122 mm
Installation locationIndoor Use Only
Weight5227 Grams
