Telecentric lenses

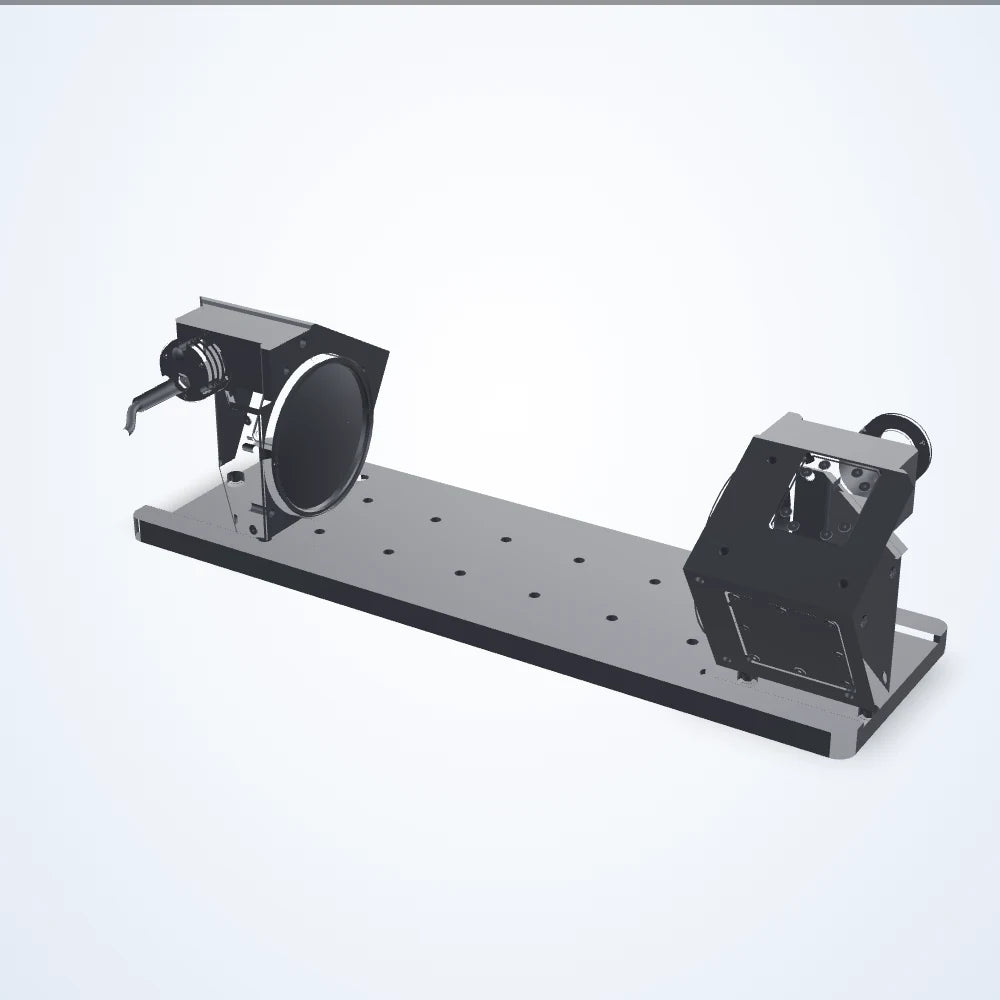

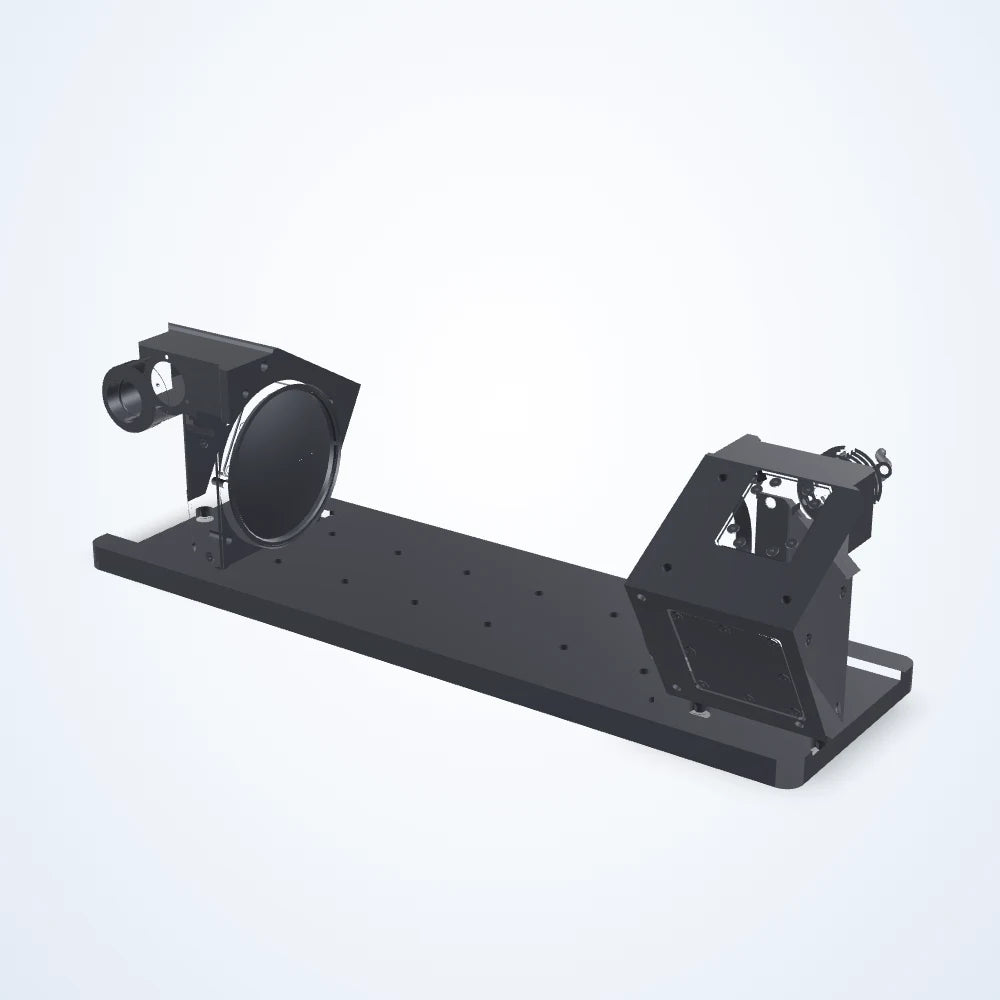

0.138× telecentric lens, 2/3", C-mount, wavelength 520 nm, FOV 51.67 x 38.62 mm (LS-TCL-0388)
Model LS-TCL-0388
- Magnification0.138×
- MountC-mount
- Sensor2/3"
- Working distance181.8 mm
- Resolution37 μm
$7,649.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 181.8 mm; depth of field 21.7 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0388 |
|---|---|
| FOV @ 1/1.8″ | 51.67 x 38.62 mm |
| Fov @ 1/2.0″ | 46.38 x 34.78 mm |
| Fov @ 1/2.5″ | 41.30 x 31.01 mm |
| FOV @ 1/2″ | 46.38 x 34.78 mm |
| Fov @ 1/3.0″ | 34.78 x 26.09 mm |
| FOV @ 2/3″ | 61.59 x 51.38 mm |
| Lens type | Telecentric |
| Working ƒ/n | f/8 |
Optics
| Magnification | 0.138× |
|---|---|
| Working distance | 181.8 mm |
| Depth of field | 21.7 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.03 |
| Filter thread | No Filter Threads |
| Image circle | 11.5 mm |
| Image size dimensions | 9.5 x 9.5 mm |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.05° |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution (pixel size) | 37 μm |
Light
| LED current | 350 mA |
|---|---|
| LED voltage | 3.3 Volts |
| LED voltage maximum | 4 Volts |
| Light color | Green |
| Wavelength | 520 nm |
Environment and compliance
| Operating relative humidity (%) | 20-85 Non Condensing |
|---|---|
| Operating temperature range | 0 to 40°C |
| Storage temperature range | 0 to 50°C |
Electrical
| Power consumption maximum | 2.5 Watts |
|---|---|
| Pulse current maximum | 2000 mA |
| Supply voltage | 12 - 24 Volts |
Mechanical
| Mount | C-mount |
|---|---|

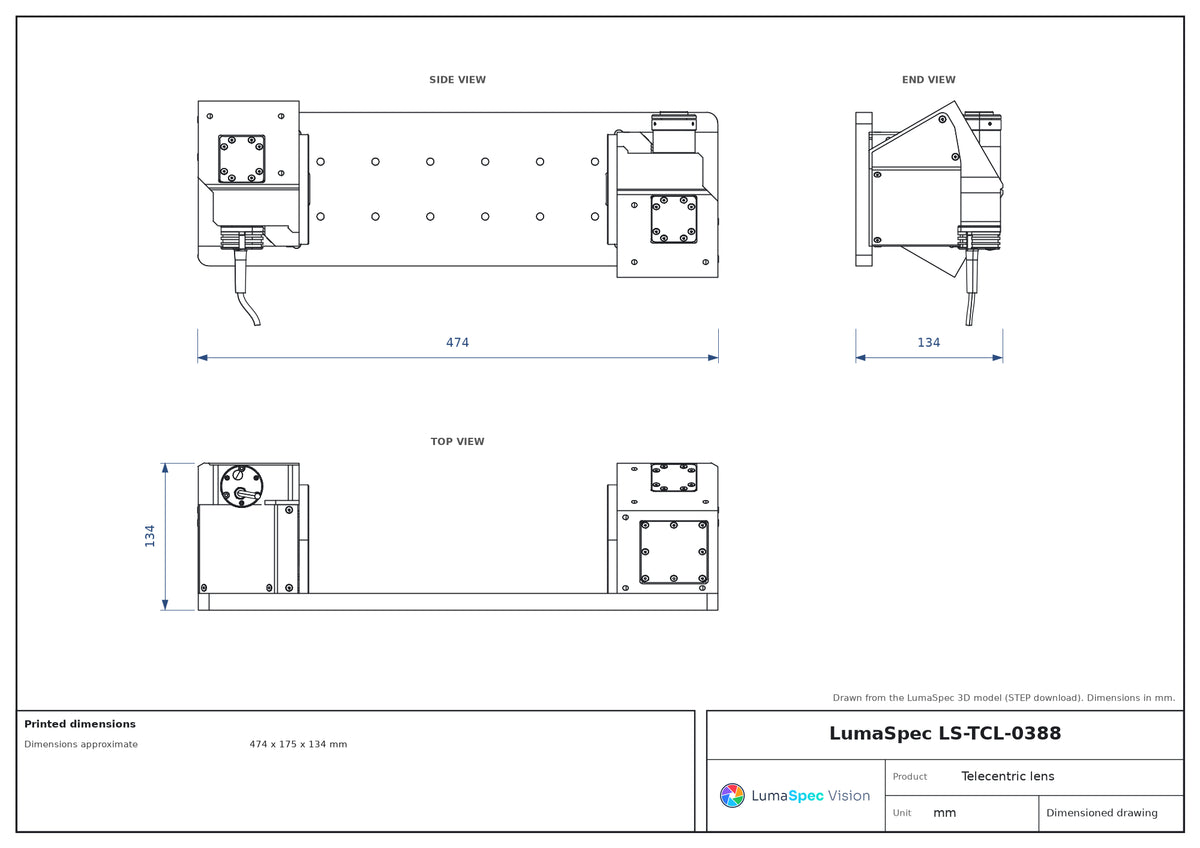

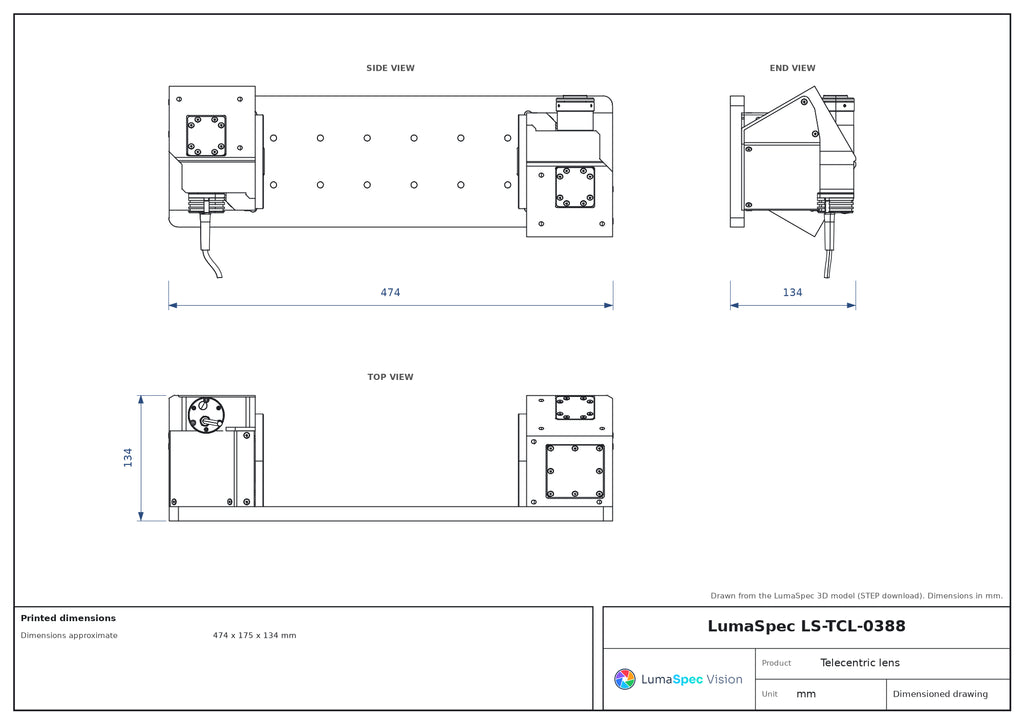

| Dimensions approximate | 474 x 175 x 134 mm |
| Installation location | Indoor Use Only |
| Weight | 6549 Grams |
