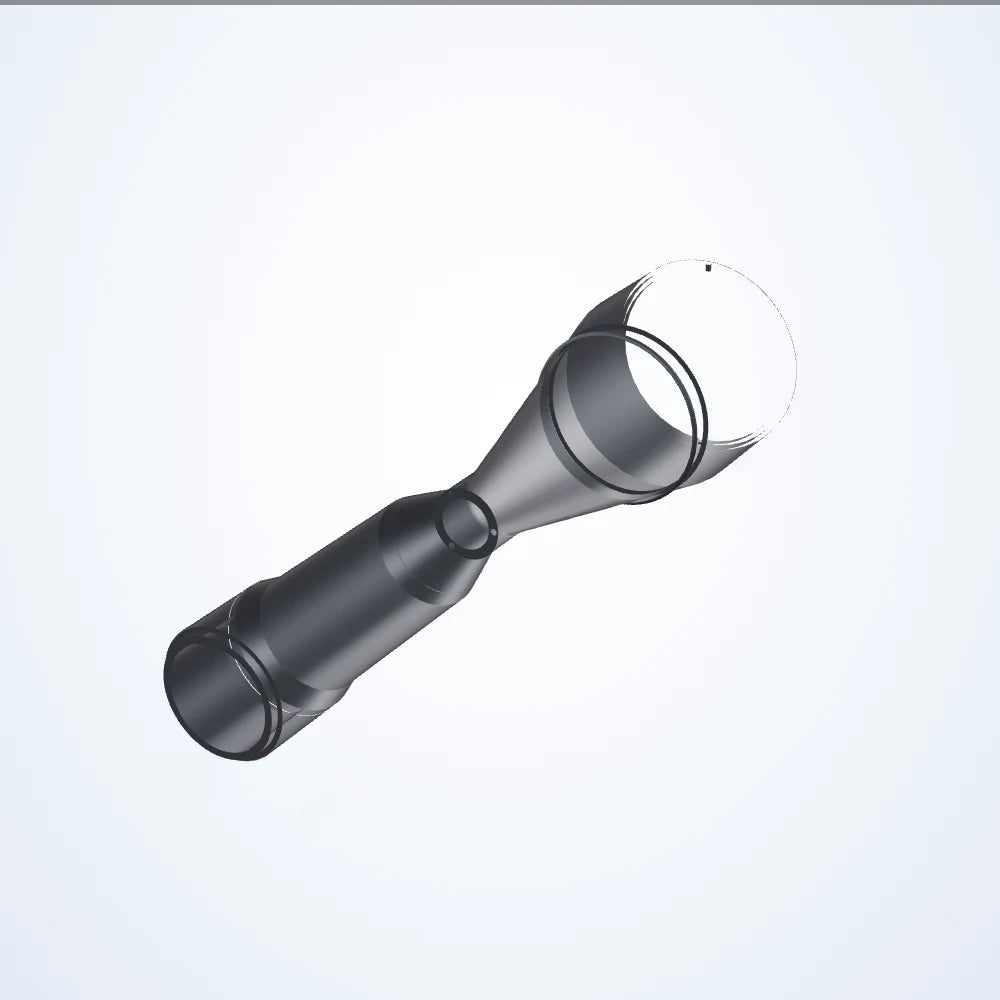

  • 0.463× telecentric lens, 35mm Full Frame, M58-mount (LS-TCL-0204)

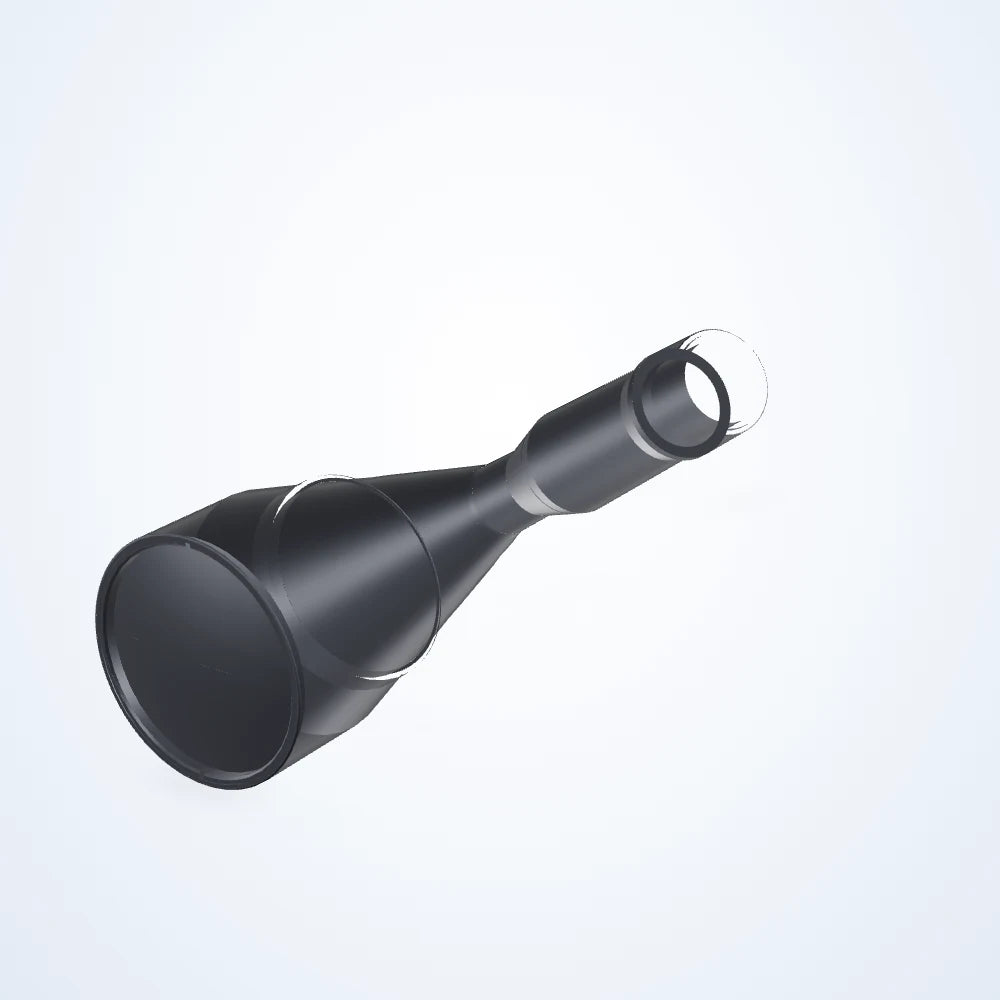

  • 0.463× telecentric lens, 35mm Full Frame, M58-mount (LS-TCL-0204) - view 2

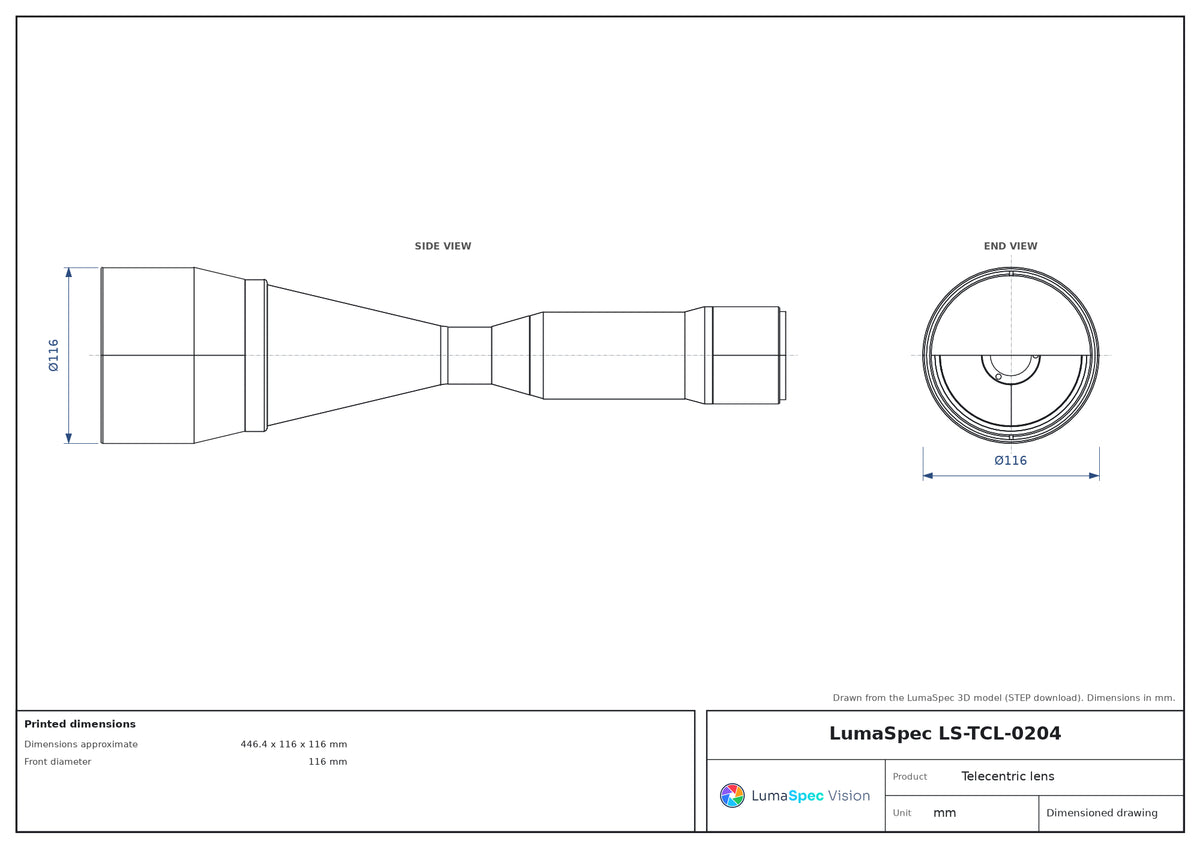

  • LS-TCL-0204 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.463× telecentric lens, 35mm Full Frame, M58-mount (LS-TCL-0204)

Model LS-TCL-0204

  • Magnification0.463×
  • MountM58
  • SensorFull frame
  • Working distance197.3 mm
  • Resolution22 μm
$6,119.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

0.463× telecentric lens, 35mm Full Frame, M58-mount (LS-TCL-0204)LS-TCL-0204

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 197.3 mm; depth of field 6.2 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0204
Aps-c IMX34248.29 x 36.22 mm
CHR70M66.95 x 47.5 mm
CMV5000078.69 x 59.65 mm
Fov @ full frame77.75 x 51.84 mm
Lens typeTelecentric
Line 8k-5µm88.12 mm
Working ƒ/nf/16

Optics

Magnification0.463×
Working distance197.3 mm
Depth of field6.2 mm
Distortion maximum (%)< 0.2
Distortion typical (%)< 0.09
Filter threadNo Filter Threads
Image circle43.3 mm
Telecentricity maximum0.08°
Telecentricity typical< 0.03°

Sensor and imaging

Sensor format35mm Full Frame
Resolution (pixel size)22 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountM58-mount
Dimensions approximate446.4 x 116 x 116 mm
Front diameter116 mm
Weight1779 Grams

LS-TCL-0204

See this component from every angle.

CAD-based illustration; finish is representative.
