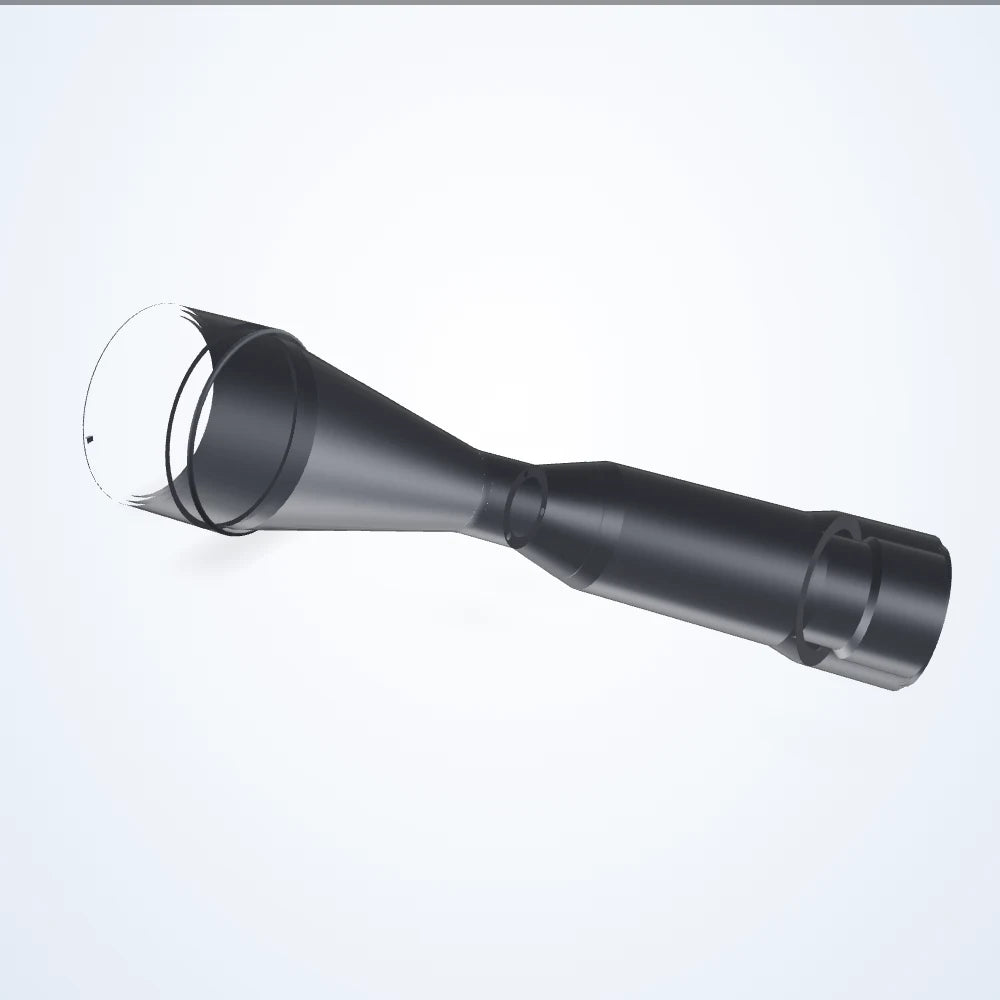

  • 0.561× telecentric lens, 35mm Full Frame, M58-mount (LS-TCL-0200)

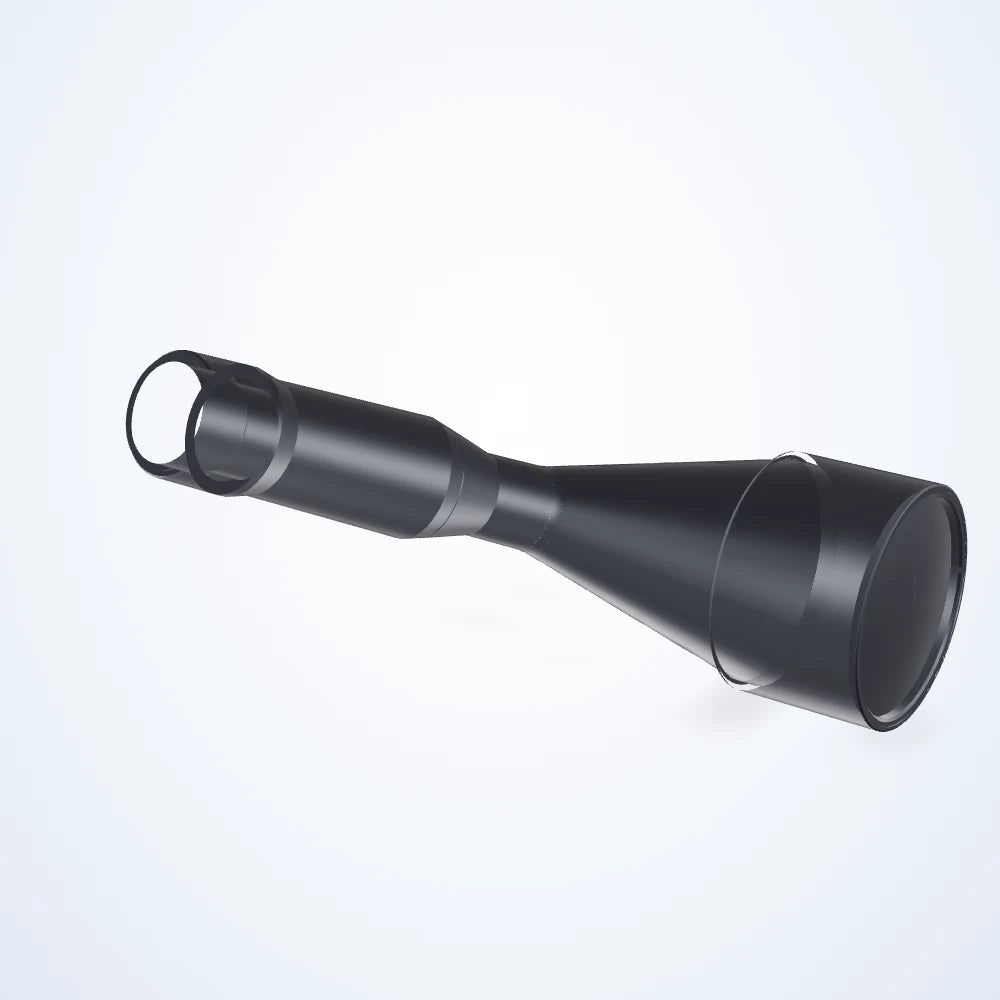

  • 0.561× telecentric lens, 35mm Full Frame, M58-mount (LS-TCL-0200) - view 2

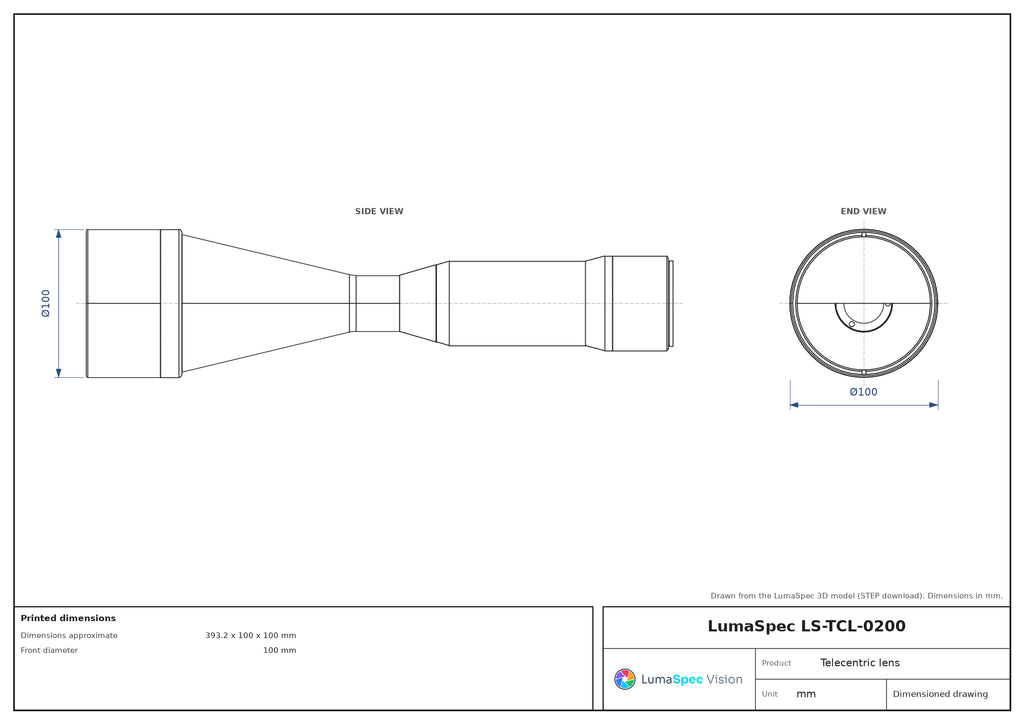

  • LS-TCL-0200 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.561× telecentric lens, 35mm Full Frame, M58-mount (LS-TCL-0200)

Model LS-TCL-0200

  • Magnification0.561×
  • MountM58
  • SensorFull frame
  • Working distance170.6 mm
  • Resolution18 μm
$5,369.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

0.561× telecentric lens, 35mm Full Frame, M58-mount (LS-TCL-0200)LS-TCL-0200

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 170.6 mm; depth of field 4.2 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0200
Aps-c IMX34239.86 x 29.89 mm
CHR70M55.26 x 39.2 mm
CMV5000064.94 x 49.23 mm
Fov @ full frame64.17 x 42.78 mm
Lens typeTelecentric
Line 8k-5µm72.73 mm
Working ƒ/nf/16

Optics

Magnification0.561×
Working distance170.6 mm
Depth of field4.2 mm
Distortion maximum (%)< 0.15
Distortion typical (%)< 0.06
Filter threadNo Filter Threads
Image circle43.3 mm
Telecentricity maximum0.08°
Telecentricity typical< 0.04°

Sensor and imaging

Sensor format35mm Full Frame
Resolution (pixel size)18 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountM58-mount
Dimensions approximate393.2 x 100 x 100 mm
Front diameter100 mm
Weight1613 Grams
