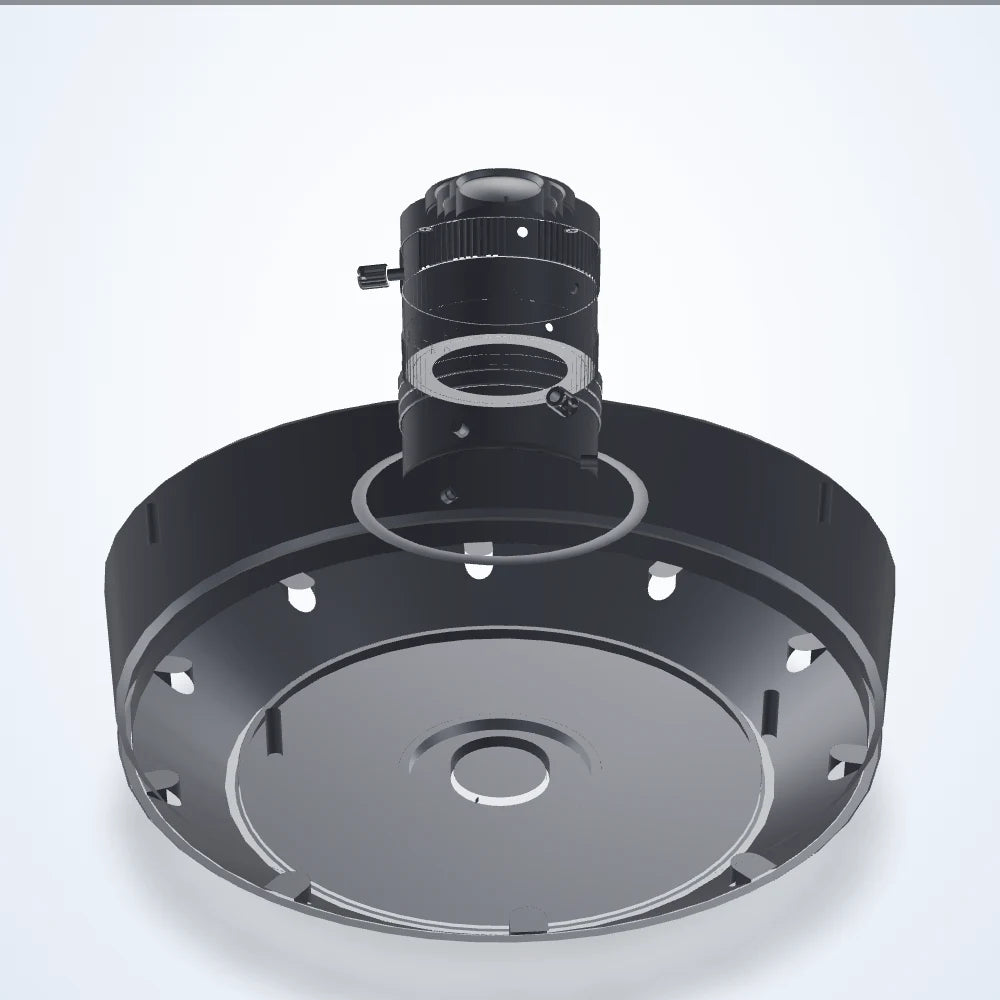

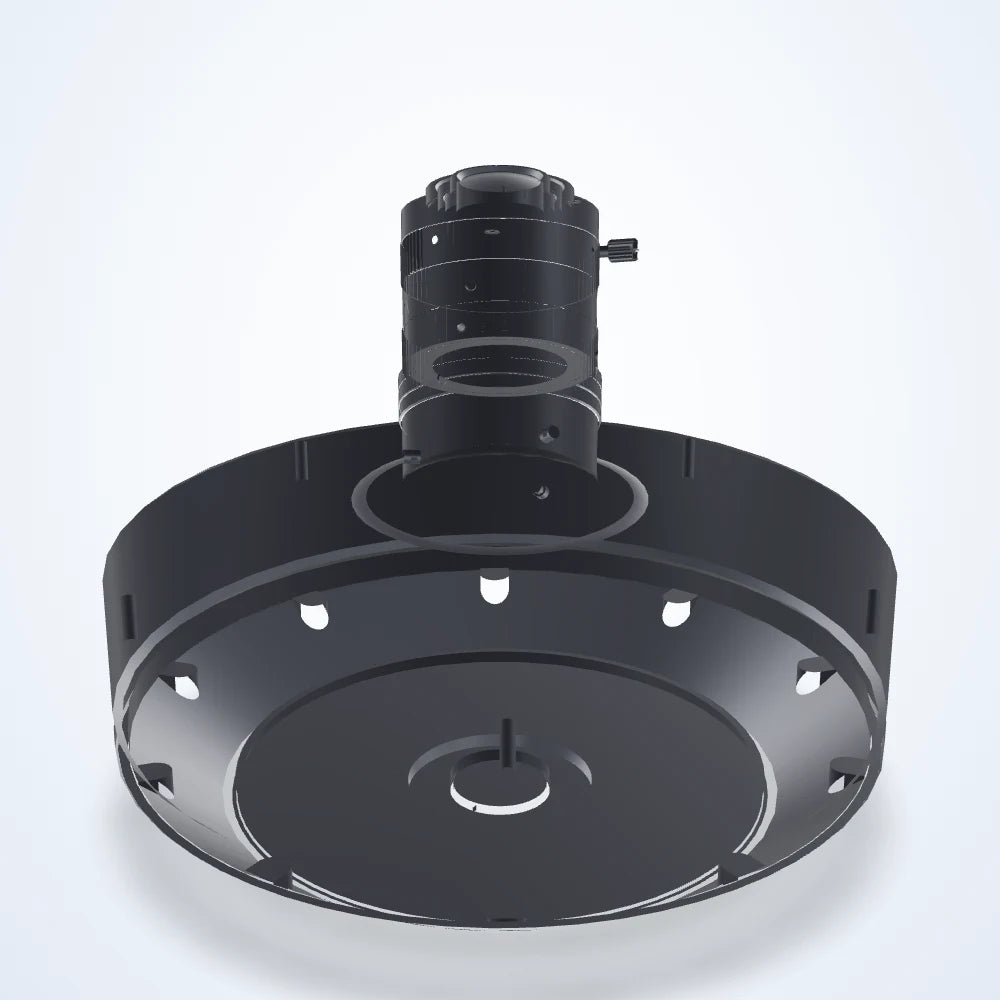

360° inspection lens, 1/3", C-mount (LS-TCL-0048)

Rendered illustration: the actual product may differ in appearance.

360° inspection lenses

360° inspection lens, 1/3", C-mount (LS-TCL-0048)

Model LS-TCL-0048

MountC-mount
Sensor1/3"
Working distance28 mm
Sensor format1/3"

$5,399.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Quantity

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Special inspection optics that image the sides or inner walls of a part in one shot.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-0048
Aov	35 °
FOV @ 1/3″	7.5 mm Ø x 5 mm
Lens type	Catadioptric
Working ƒ/n	f/16

Optics

Filter thread	No Filter Threads
Image circle	3.6 mm
Working distance @ fov maximum	28 mm
Working distance @ fov minimum	53 mm
Working distance with pccdlfat	5 mm

Sensor and imaging

Sensor format	1/3"

Environment and compliance

Operating relative humidity (%)	< 85 Non Condensing
Operating temperature range	0 to 40°C
Storage temperature range	0 to 50°C

Mechanical

Mount	C-mount
Dimensions approximate	111.2 x 143 x 143 mm
Front diameter	5 mm
Weight	995 Grams

Other models in the 360° inspection lens series, C-mount (S04) series

See all 4 models

Model	Size / key data	Price	Availability	Link
LS-TCL-0047	C-mount · 1/2"	$5,399.00 Quote	Lead time confirmed with your quote	View
LS-TCL-0049	C-mount · 2/3"	$5,399.00 Quote	Lead time confirmed with your quote	View
LS-TCL-0050	C-mount · 1"	$5,399.00 Quote	Lead time confirmed with your quote	View
