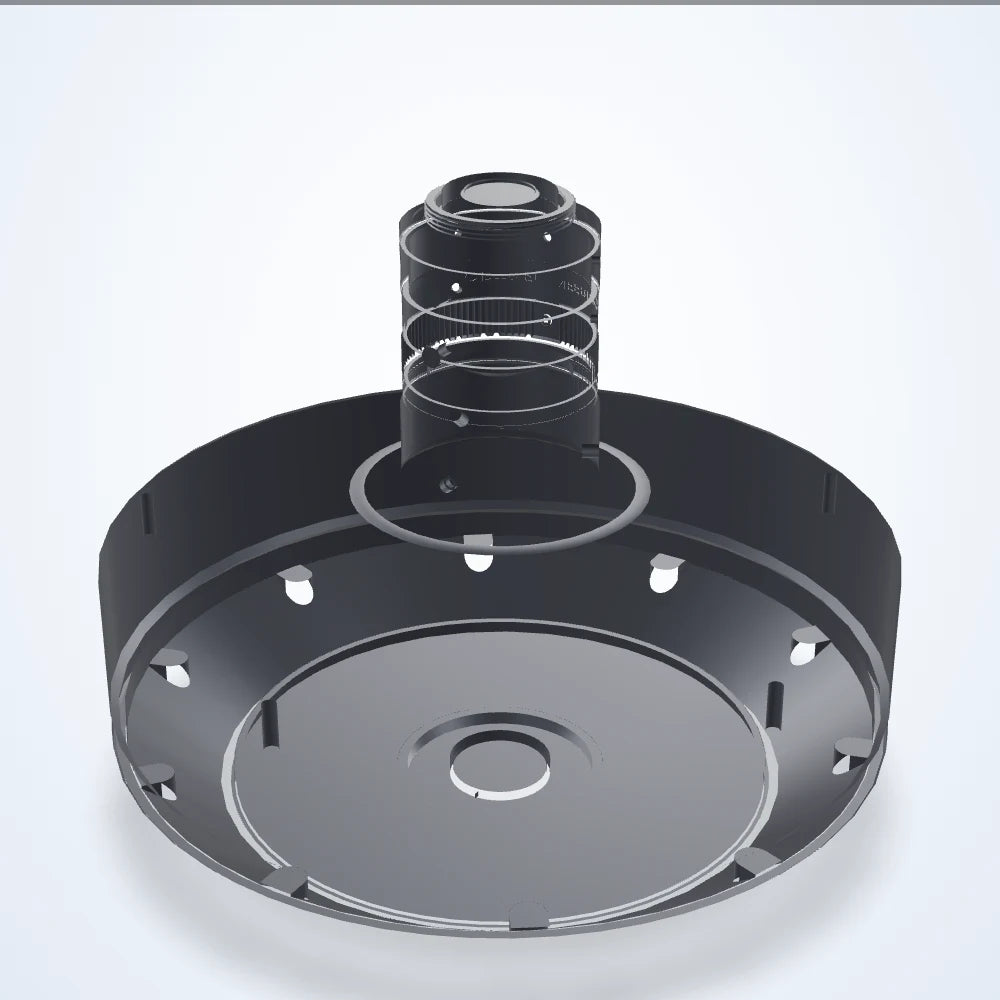

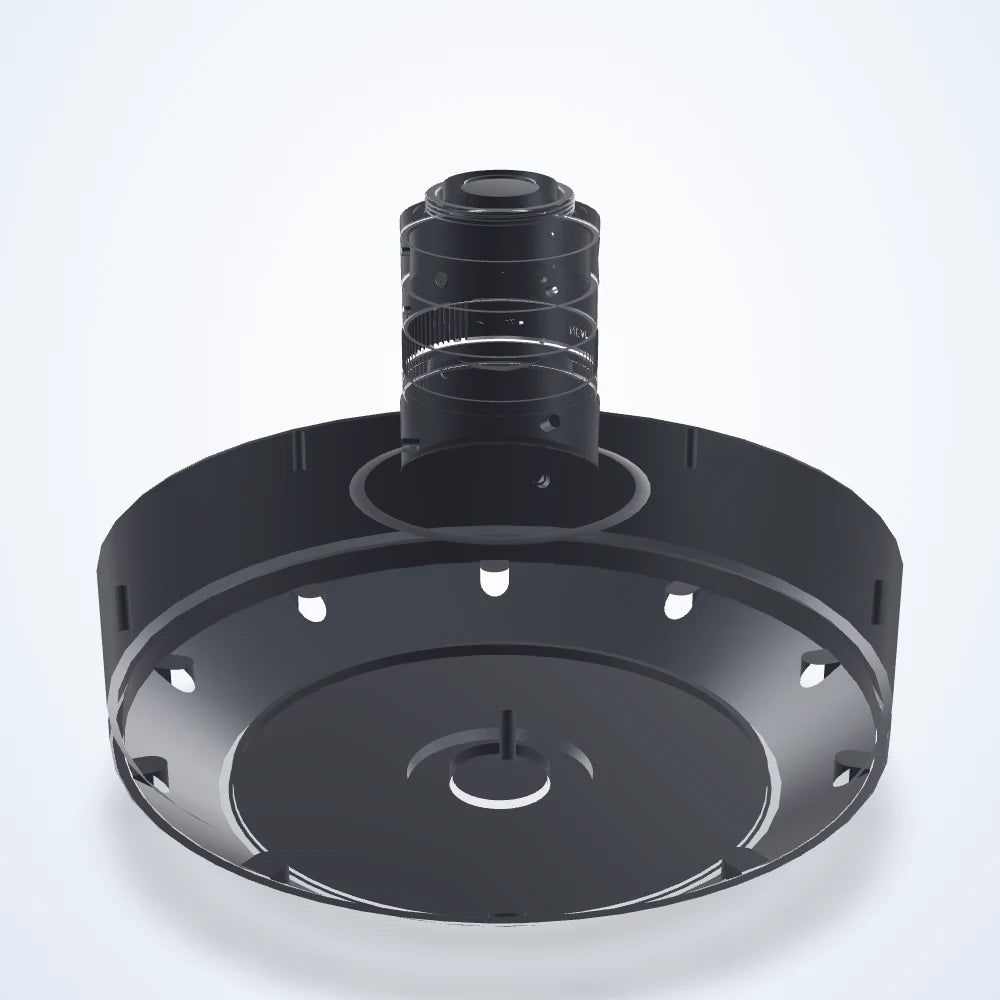

Rendered illustration: the actual product may differ in appearance.
360° inspection lenses
360° inspection lens, 1/2", C-mount (LS-TCL-0047)
Model LS-TCL-0047
- MountC-mount
- Sensor1/2"
- Working distance28 mm
- Sensor format1/2"
$5,399.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Special inspection optics that image the sides or inner walls of a part in one shot.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0047 |
|---|---|
| Aov | 35 ° |
| FOV @ 1/3″ | 7.5 mm Ø x 5 mm |
| Lens type | Catadioptric |
| Working ƒ/n | f/18 |
Optics
| Filter thread | No Filter Threads |
|---|---|
| Image circle | 4.8 mm |
| Working distance @ fov maximum | 28 mm |
| Working distance @ fov minimum | 53 mm |
| Working distance with pccdlfat | 5 mm |
Sensor and imaging
| Sensor format | 1/2" |
|---|
Environment and compliance
| Operating temperature range | 0 to 40°C |
|---|---|
| Storage temperature range | 0 to 50°C |
Mechanical
| Mount | C-mount |
|---|---|
| Dimensions approximate | 108 x 143 x 143 mm |
| Front diameter | 5 mm |
| Weight | 988 Grams |
