Thermal, SWIR & UV lenses
16 mm SWIR lens, 400-1700 nm, 1/2", F1.8, C-mount (LS-SWL-0245)
Model LS-SWL-0245
- Focal length16 mm
- MountC-mount
- Sensor1/2"
- Working distance0.1-5 m
- ApertureF1.8-16
- Resolution3MP
$945.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
16 mm SWIR lens for SWIR, NIR and UV cameras. Focal length 16 mm; working distance 0.1-5 m; covers sensors up to 1/2"; aperture F1.8; corrected for 400-1700 nm; C-mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0245 |
|---|---|
| Angle of view | 28.14°/22.44°/17.98 ° |
Optics
| Focal length | 16 mm |
|---|---|
| Aperture | F1.8-16 |
| Field of view | 28.14°x22.44°x17.98° |
| Working distance | 0.1-5 m |
| Back focal length | 13 mm |
| Distortion | <0.4% |
| Focus | Manual |
| Filter thread | M28.5×P0.5 mm |
Sensor and imaging
| Sensor format | 1/2" |
|---|---|
| Resolution | 3MP |
Light
| Wavelength range | 400-1700 nm |
|---|
Environment and compliance
| Operating temperature | -10- 50°C(Working), -20- 60°C(Storage) |
|---|
Mechanical
| Mount | C-mount |
|---|---|

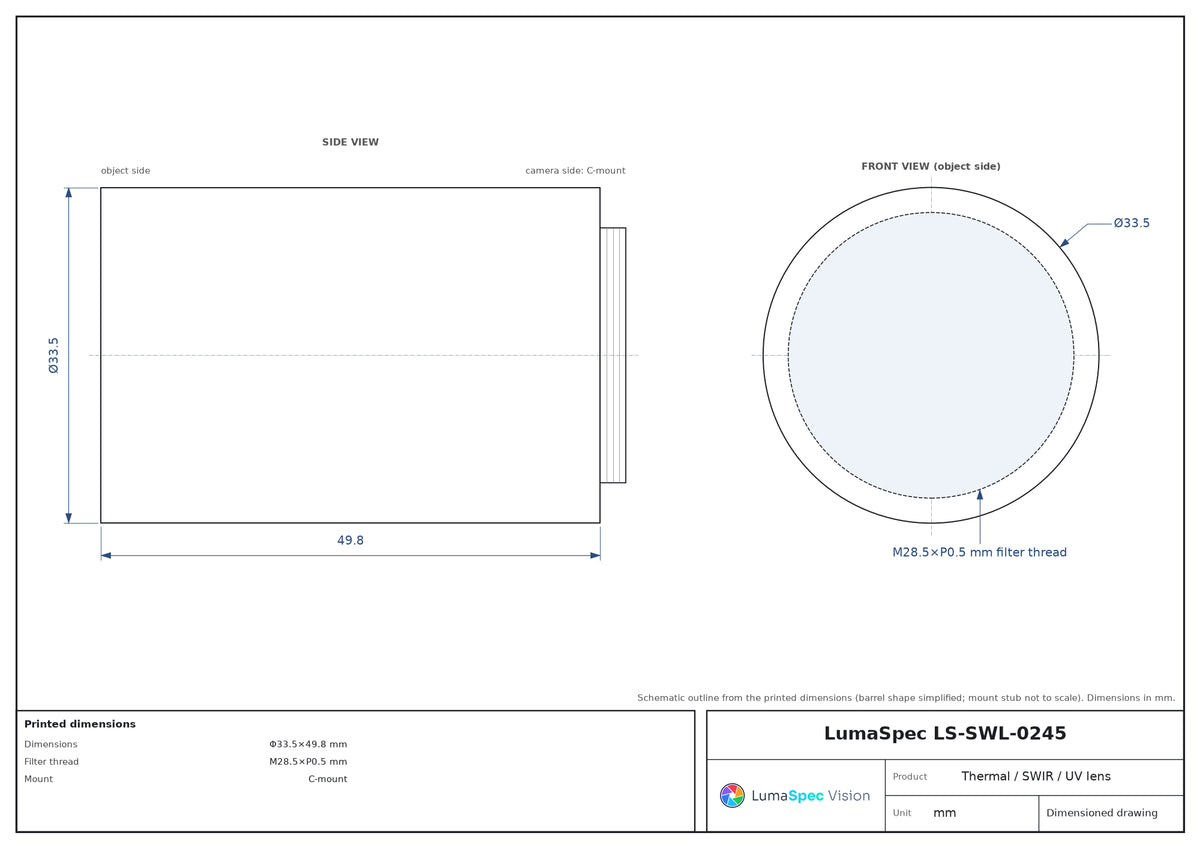

| Dimensions | Φ33.5×49.8 mm |
| Shipping weight | 1.00 kg |
