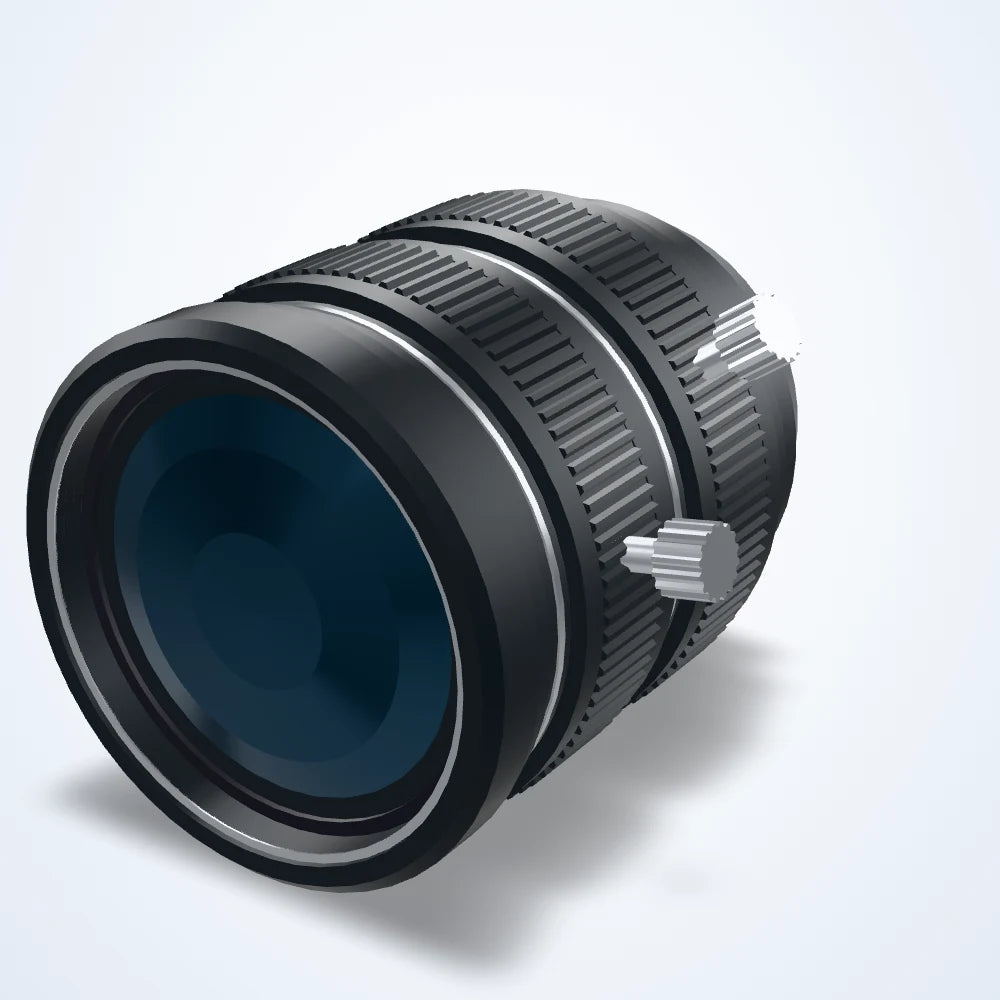

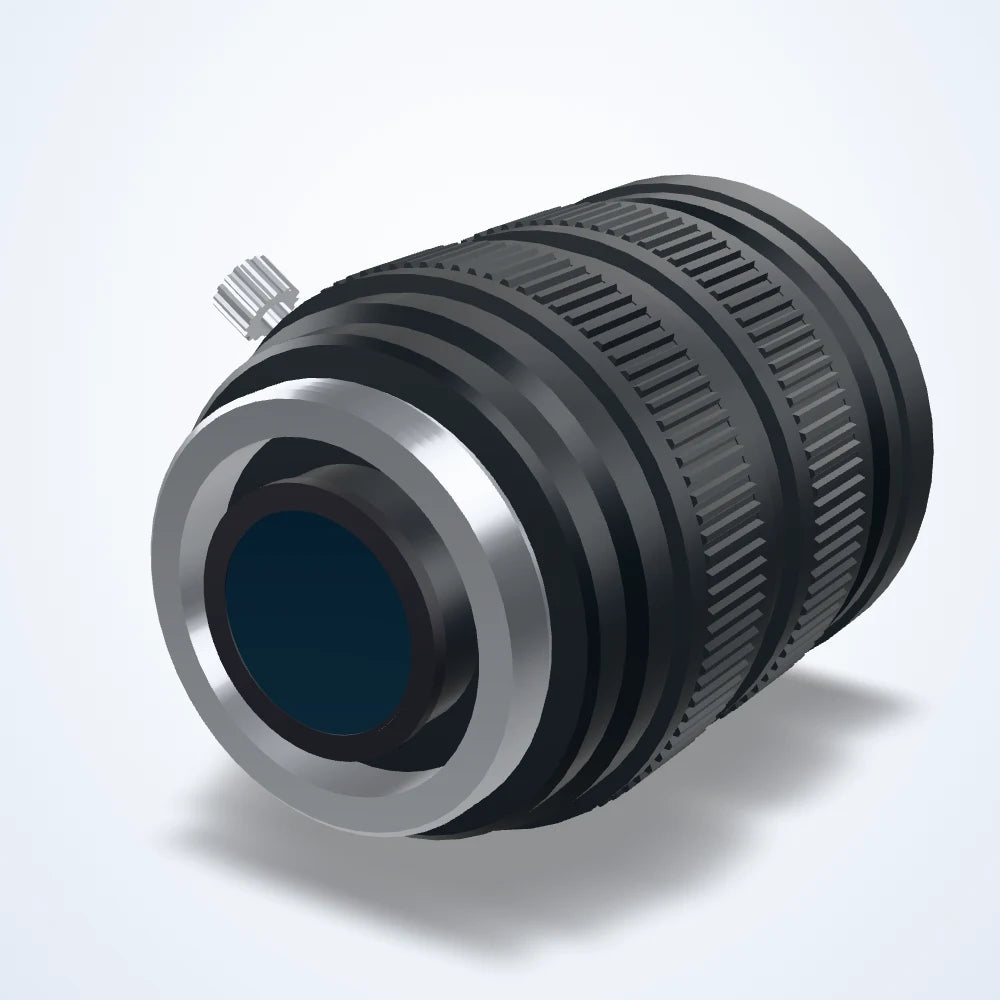

SWIR lens 400-1700 nm 1/2" F1.8 C-mount (series view)

Rendered illustration: the actual product may differ in appearance.

Thermal, SWIR & UV lenses

35 mm SWIR lens, 400-1700 nm, 1/2", F1.8, C-mount (LS-SWL-0247)

Model LS-SWL-0247

Focal length35 mm
MountC-mount
Sensor1/2"
Working distance0.1-5 m
ApertureF1.8-16
Resolution3MP

$945.00

Ships in 3-4 weeks

1.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

35 mm SWIR lens for SWIR, NIR and UV cameras. Focal length 35 mm; working distance 0.1-5 m; covers sensors up to 1/2"; aperture F1.8; corrected for 400-1700 nm; C-mount.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-SWL-0247
Angle of view	9.71°/7.51°/5.94°

Optics

Focal length	35 mm
Aperture	F1.8-16
Field of view	9.71°x7.51°x5.94°
Working distance	0.1-5 m
Back focal length	17.764 mm
Distortion	<0.14%
Focus	Manual
Filter thread	M28.5×P0.5 mm

Sensor and imaging

Sensor format	1/2"
Resolution	3MP

Light

Wavelength range	400-1700 nm

Environment and compliance

Operating temperature	-10- 50°C(Working), -20- 60°C(Storage)

Mechanical

Mount	C-mount

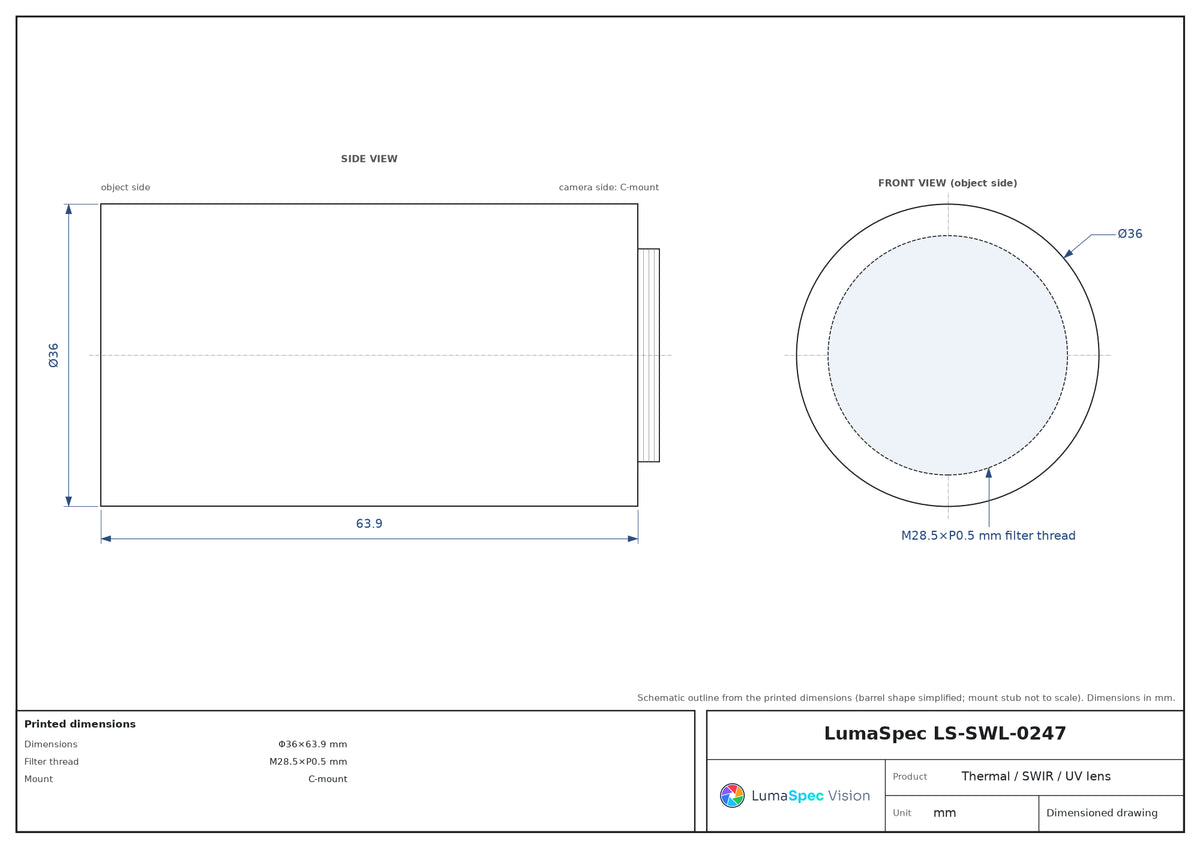

Dimensions	Φ36×63.9 mm
Shipping weight	1.00 kg

Other models in the SWIR lenses (LS-SWL-S05) series

See all 4 models

Model	Size / key data	Price	Availability	Link
LS-SWL-0244	12 mm, 1/2", C-mount	$945.00	Ships in 3-4 weeks	View
LS-SWL-0245	16 mm, 1/2", C-mount	$945.00	Ships in 3-4 weeks	View
LS-SWL-0246	25 mm, 1/2", C-mount	$945.00	Ships in 3-4 weeks	View
