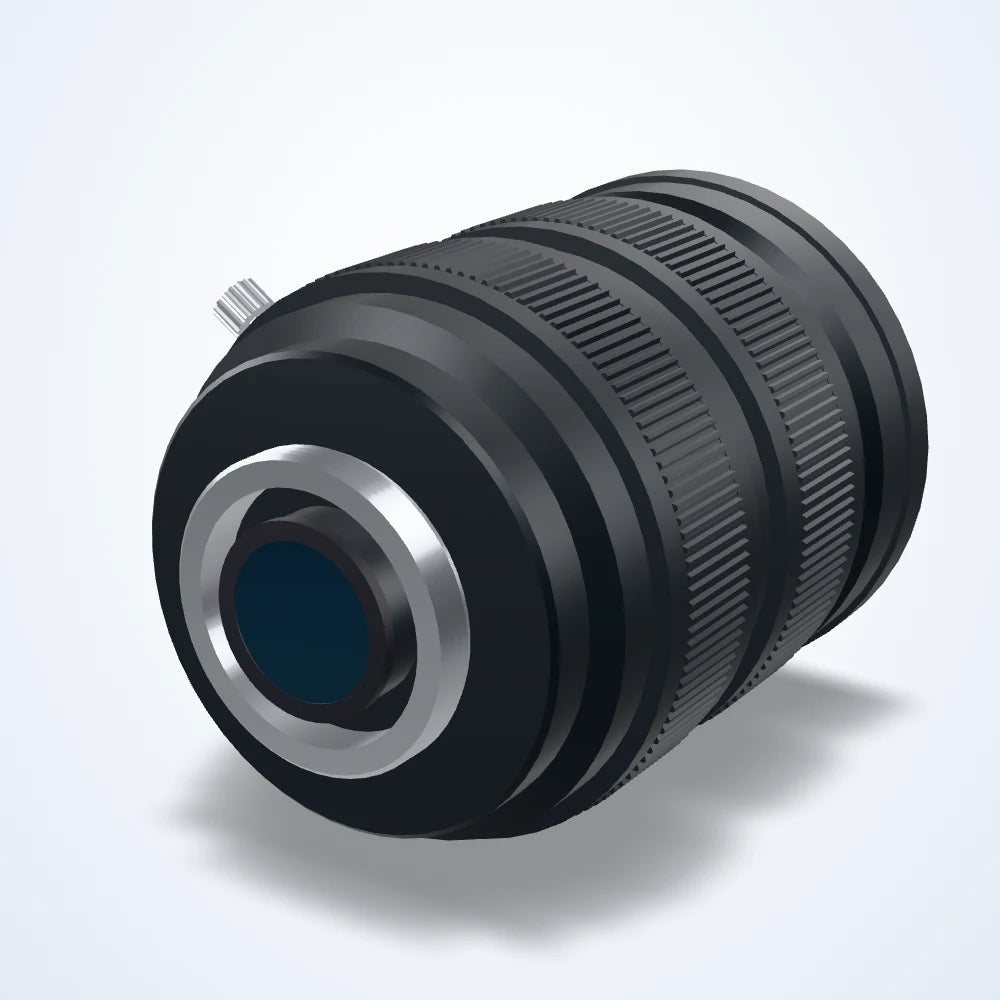

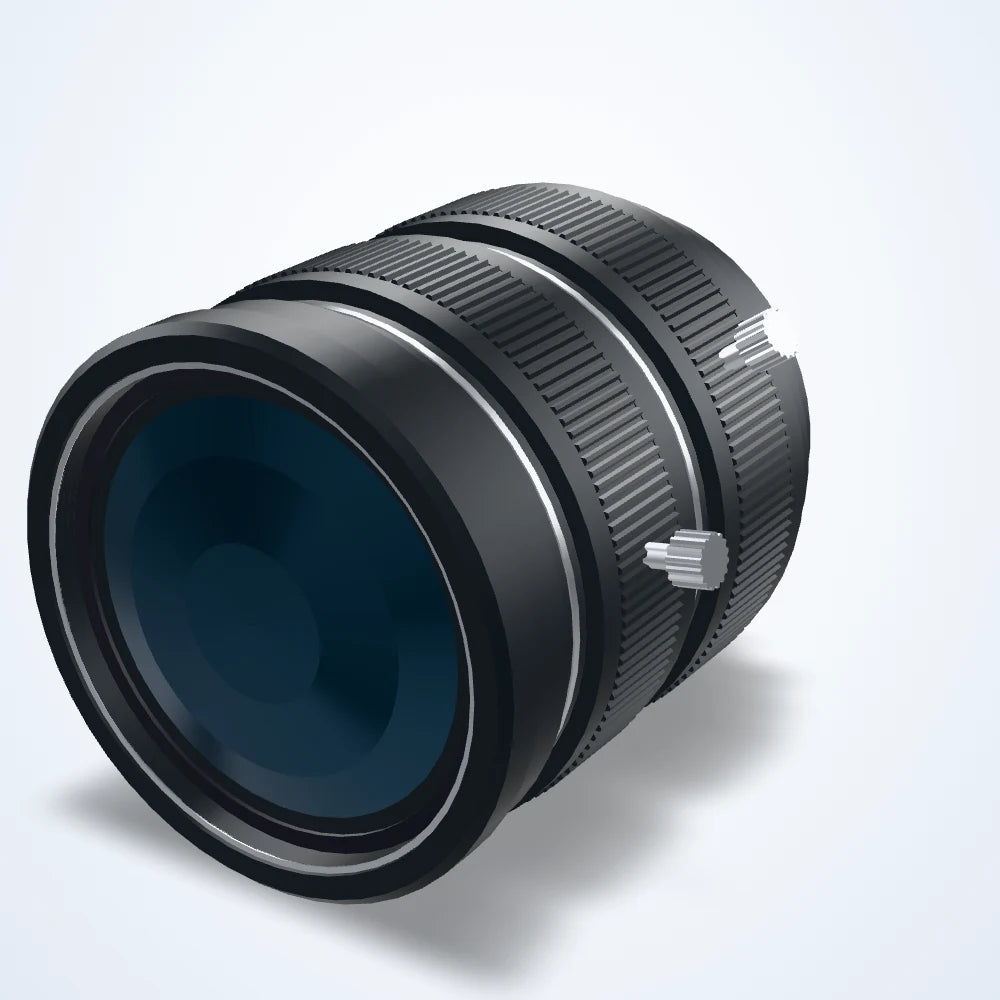

Rendered illustration

Rendered illustration: the actual product may differ in appearance.

Thermal, SWIR & UV lenses

50 mm SWIR lens, 400-1200 nm, 1.1", C-mount (LS-SWL-0243)

Model LS-SWL-0243

  • Focal length50 mm
  • MountC-mount
  • Sensor1.1"
  • ApertureF1.4
  • Resolution5 MP
$660.00

Ships in 3-4 weeks

0.21 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

lumaspecvision.com/products/lumaspec-ls-swl-0243

Request a quote

50 mm SWIR lens, 400-1200 nm, 1.1", C-mount (LS-SWL-0243)LS-SWL-0243

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

With a 50 mm lens, LS-SWL-0243 has a longer focal length than the 35 mm-lens version, for smaller detail or longer distances.

LS-SWL-0243: focal length 50 mm, angle of view 18.4°, distortion ≤ 0.6 %.

50 mm SWIR lens for visible-light, NIR and SWIR cameras. Focal length 50 mm; covers sensors up to 1.1"; corrected for 400-1200 nm; C-mount.

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy

Specifications

General

ModelLS-SWL-0243
Angle of view18.4°

Optics

Focal length50 mm
ApertureF1.4
Back focal length18.28 mm
Distortion≤0.6%
Filter screw sizeM40.5×0.5 mm

Sensor and imaging

Sensor format1.1"
Resolution5 MP

Light

Wavelength range400-1200 nm

Environment and compliance

Operating temperature-10 to 50 °C
Storage temperature-20 to 60 °C

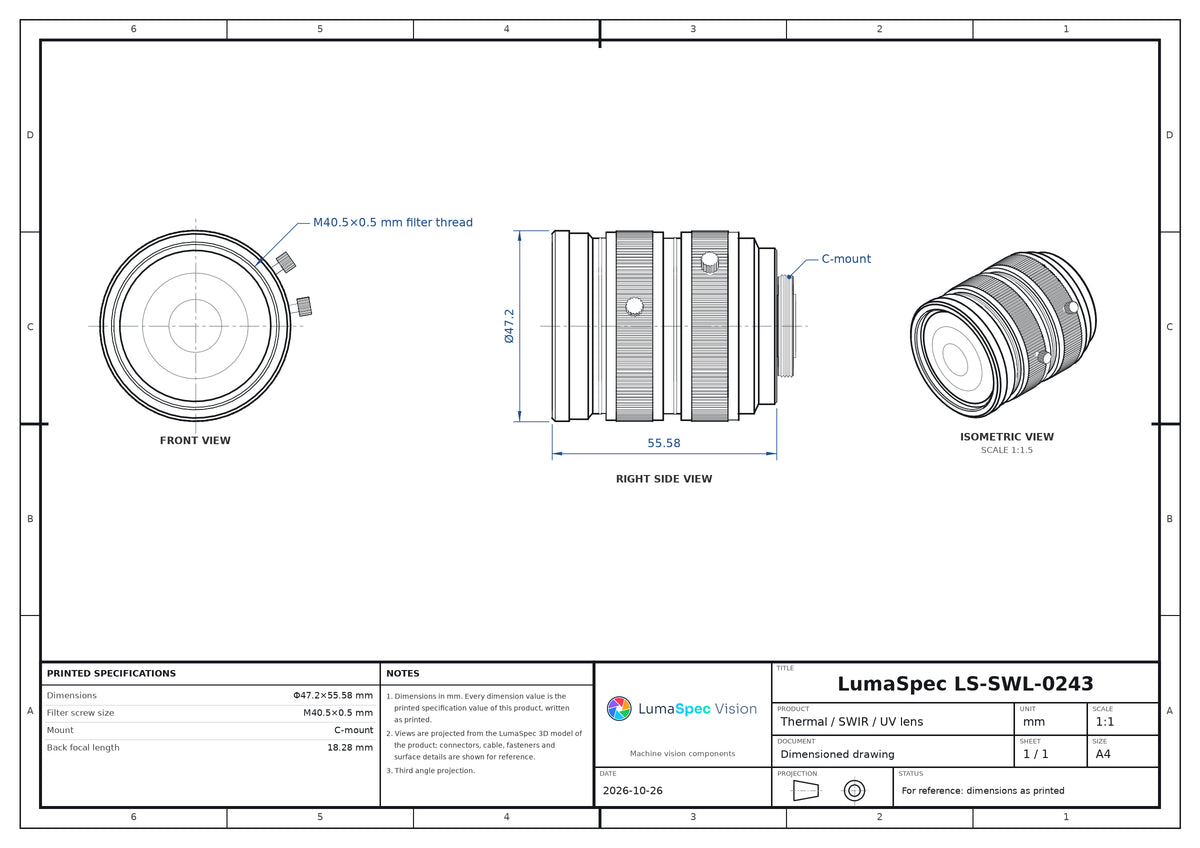

Mechanical

MountC-mount
DimensionsΦ47.2×55.58 mm
Shipping weight0.21 kg

Engineering data

Field of view with the LS-SWL-0243

Focal length50 mm
Image circleØ 17.5 mmCovers sensors up to 1.1"
Distortion≤ 0.6 %
Back focal length18.28 mm
SizeØ 47.2 × 55.58 mm
Filter threadM40.5 × 0.5
Field of view (width × height) of the 50 mm lens by sensor format and working distance
Sensor formatAt 200 mmAt 500 mmAt 1000 mmAt 2000 mm
2/3"8.8 × 6.6 mm35.2 × 26.4 mm88 × 66 mm176 × 132 mm352 × 264 mm
1/1.2"11.3 × 7.1 mm45.2 × 28.4 mm113 × 71 mm226 × 142 mm452 × 284 mm
1"12.8 × 9.6 mm51.2 × 38.4 mm128 × 96 mm256 × 192 mm512 × 384 mm
1.1"14.1 × 10.3 mm56.4 × 41.2 mm141 × 103 mm282 × 206 mm564 × 412 mm

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length, with the distance measured to the front of the lens; closest to reality when the distance is many times the focal length. Sensor sizes are typical for each optical format.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $15,660.00

Cameras this lens fits

Its 12.3 mm sensor diagonal uses 70 % of this lens's 17.5 mm image circle

Its 11.3 mm sensor diagonal uses 65 % of this lens's 17.5 mm image circle

Its 8.2 mm sensor diagonal uses 47 % of this lens's 17.5 mm image circle

Its 11.3 mm sensor diagonal uses 65 % of this lens's 17.5 mm image circle

Its 11.3 mm sensor diagonal uses 65 % of this lens's 17.5 mm image circle

Partial band

Partial band: the lens covers 900-1200 nm of the camera's 900-1700 nm

Adapters

For CS-mount cameras

Filters for this lens's filter thread

M40.5 x 0.5 filter thread, the same as this part's

Before you buy

Questions about the LS-SWL-0243

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which cameras does the LS-SWL-0243 cover?

Its image circle (about 17.5 mm) covers these fit-tested cameras: LS-CMR-0551 (3/4", 0.3 MP), LS-CMR-0525 (1/1.4", 5.2 MP), LS-CMR-0497 (1/2", 1.3 MP) and LS-CMR-0548 (1/1.4", 5.2 MP).

What field of view does the LS-SWL-0243 give at 500 mm?

About 141 x 103 mm on a 1.1" sensor, about 564 x 412 mm at 2000 mm (calculated: sensor size x distance / 50 mm focal length).

Does the LS-SWL-0243 need an adapter for C-mount or CS-mount cameras?

No for a C-mount camera: it is a C-mount lens. Yes for a CS-mount camera: fit a 5 mm C-CS adapter ring such as LS-LXR-0266.

What sensor size is the LS-SWL-0243 made for?

The sensor format is 1.1".

Other models in the SWIR lens (LS-SWL-S04) series

See the category

How this model compares

  • Compared with LS-SWL-0242: focal length 50 mm here, 35 mm there; angle of view 18.4° here, 26.2° there.
ModelFocal lengthPriceAvailabilityLink
LS-SWL-024235 mm$660.00 Ships in 3-4 weeks View
LS-SWL-0243This model50 mm$660.00 Ships in 3-4 weeks
